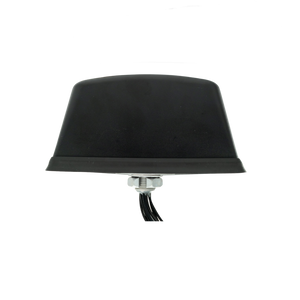

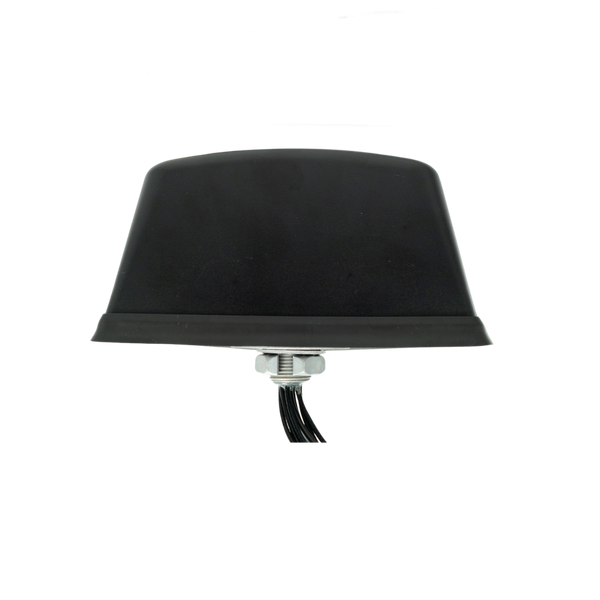

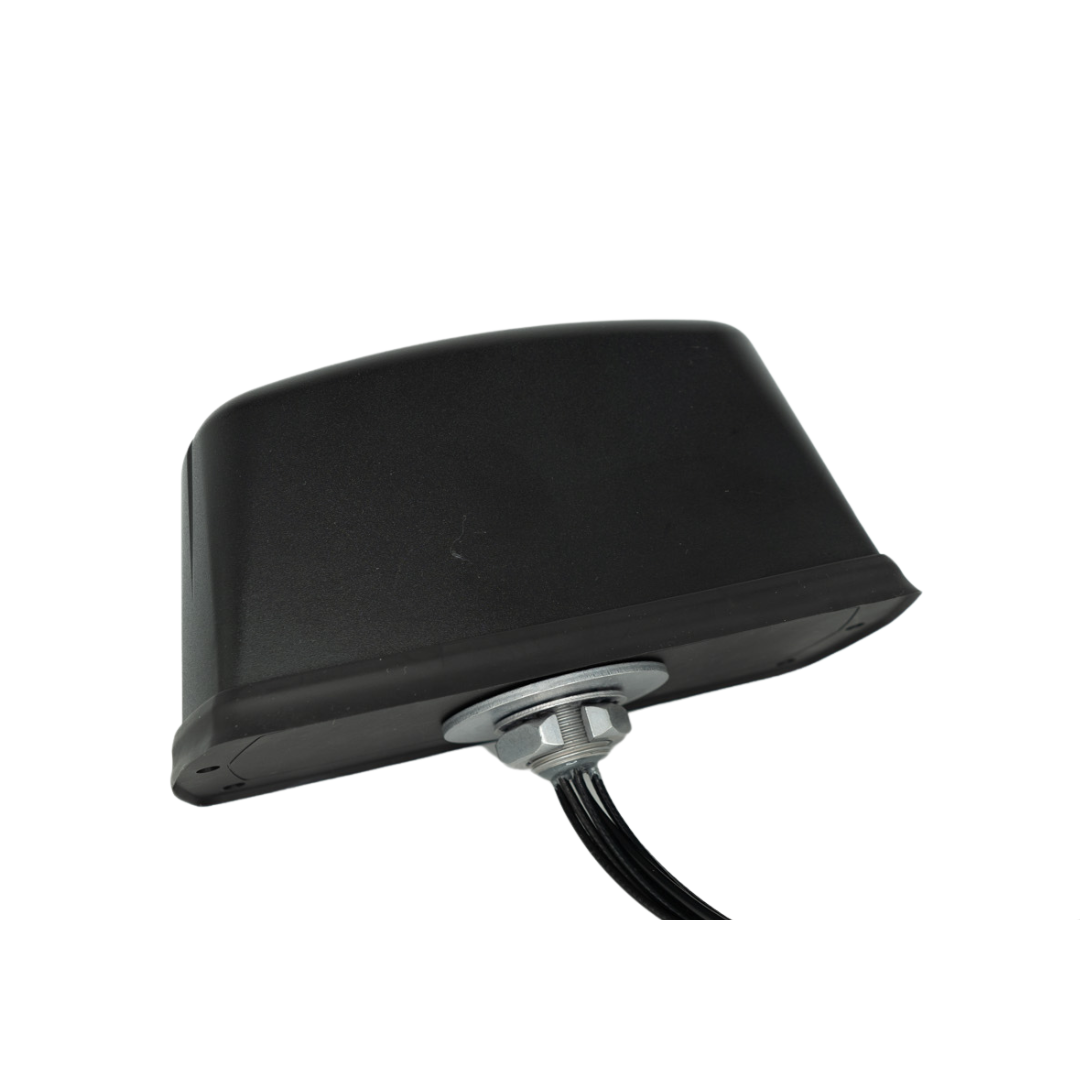

R2BDM-G454W-17K-FAKRA-B

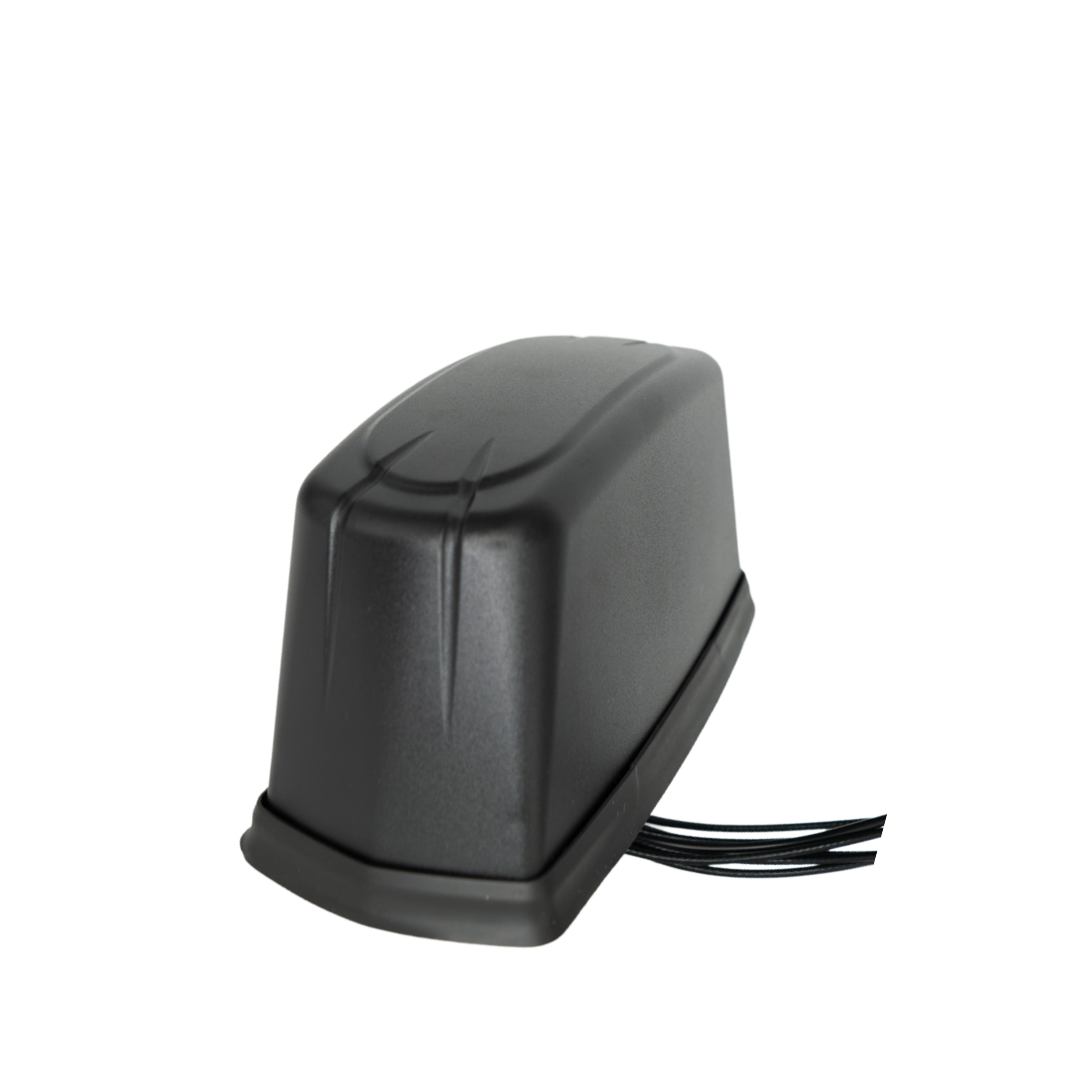

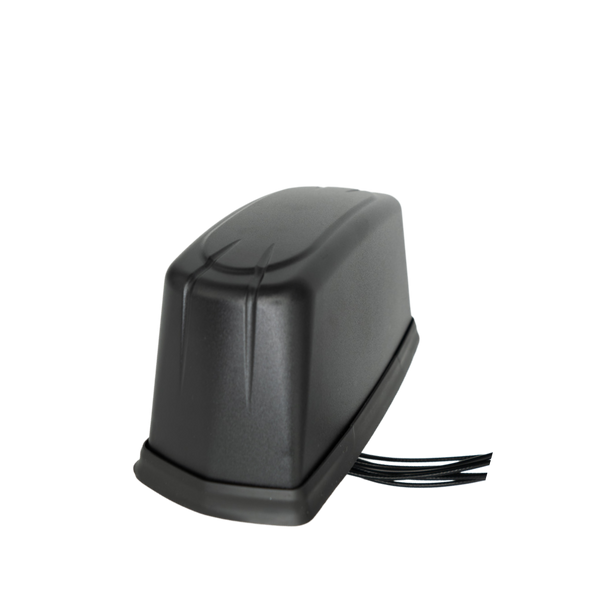

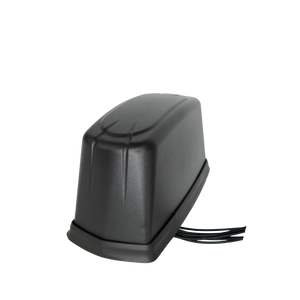

Antenna for XR90 & XR80 9 in 1 "Brick" antenna 4x 5G, 4x WiFi & 1x GPS/GNSS, 17 ft cables with Fakra Connectors
- This RFMAX 7-in-1 "Brick" Version 2 Antenna, R2BDM-G454W-17K-FAKRA-B, is a wideband 5G-FR1, WiFi-6E low profile, 17 Ft Cable Kit direct mount antenna
- IP rating: IP67/IP69, Dimensions: 8 x 3.5 x 3.78 in. (LxWxH)
- 4x4 MiMo 5G + 4x4 MiMo WiFi + 1 GPS/GNSS

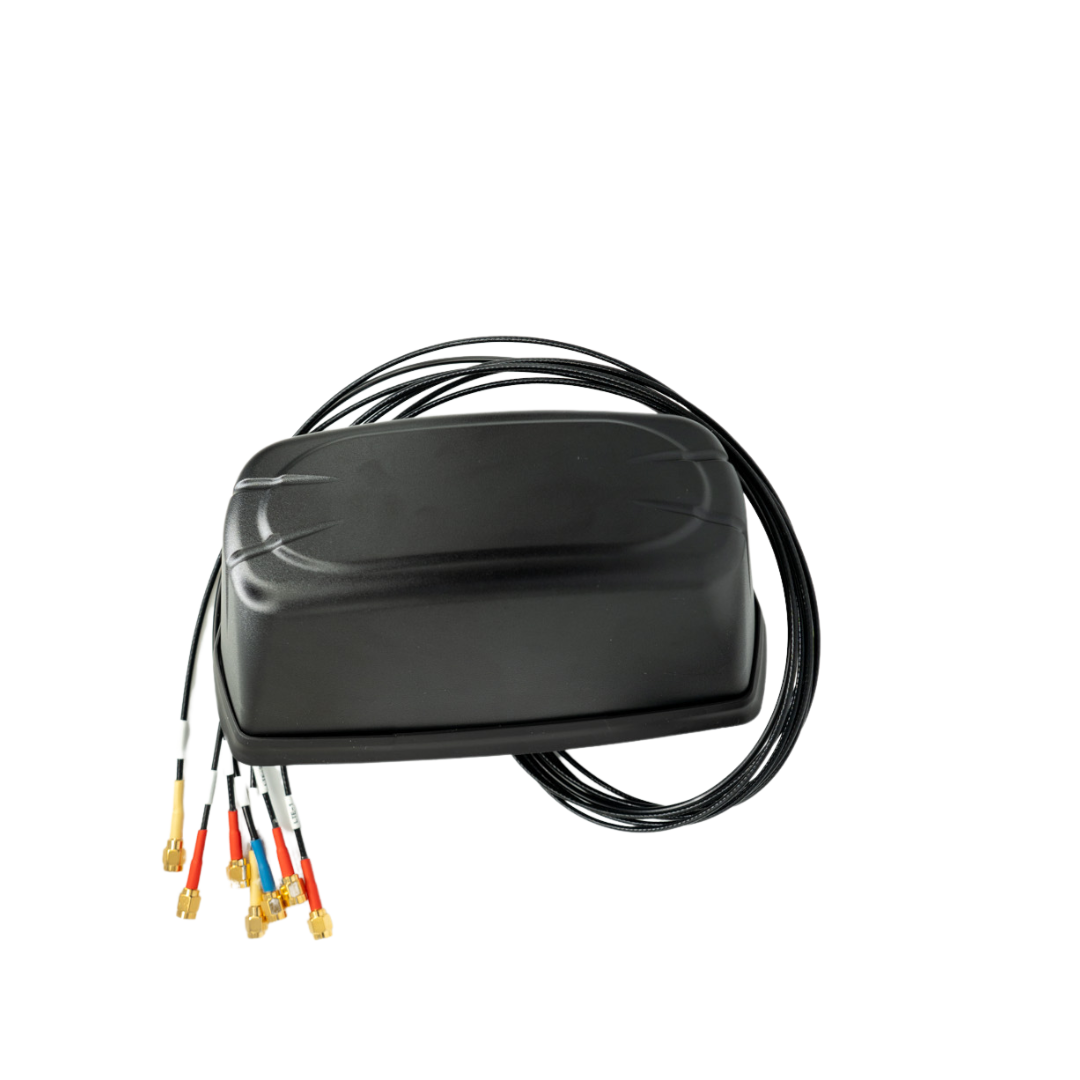

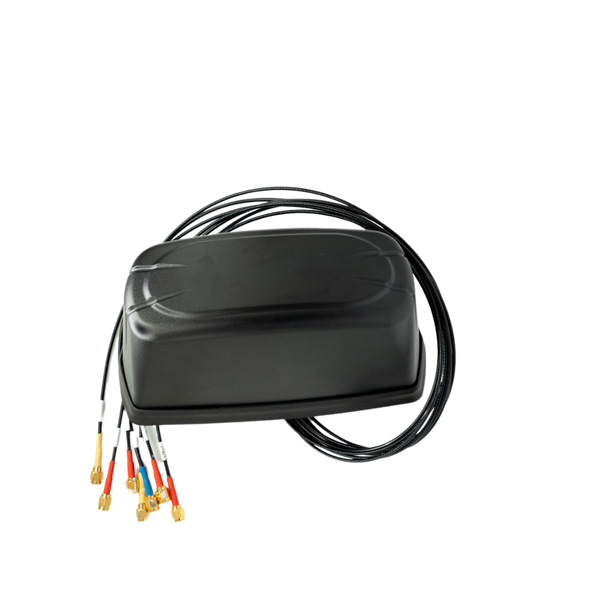

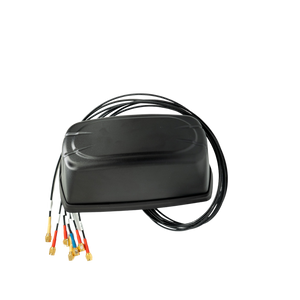

- Antenna is terminated with 2 ft cables, and 7x 15 Ft extension cables included
- Compatible with Semtech/Sierra Wireless XR80, XR90

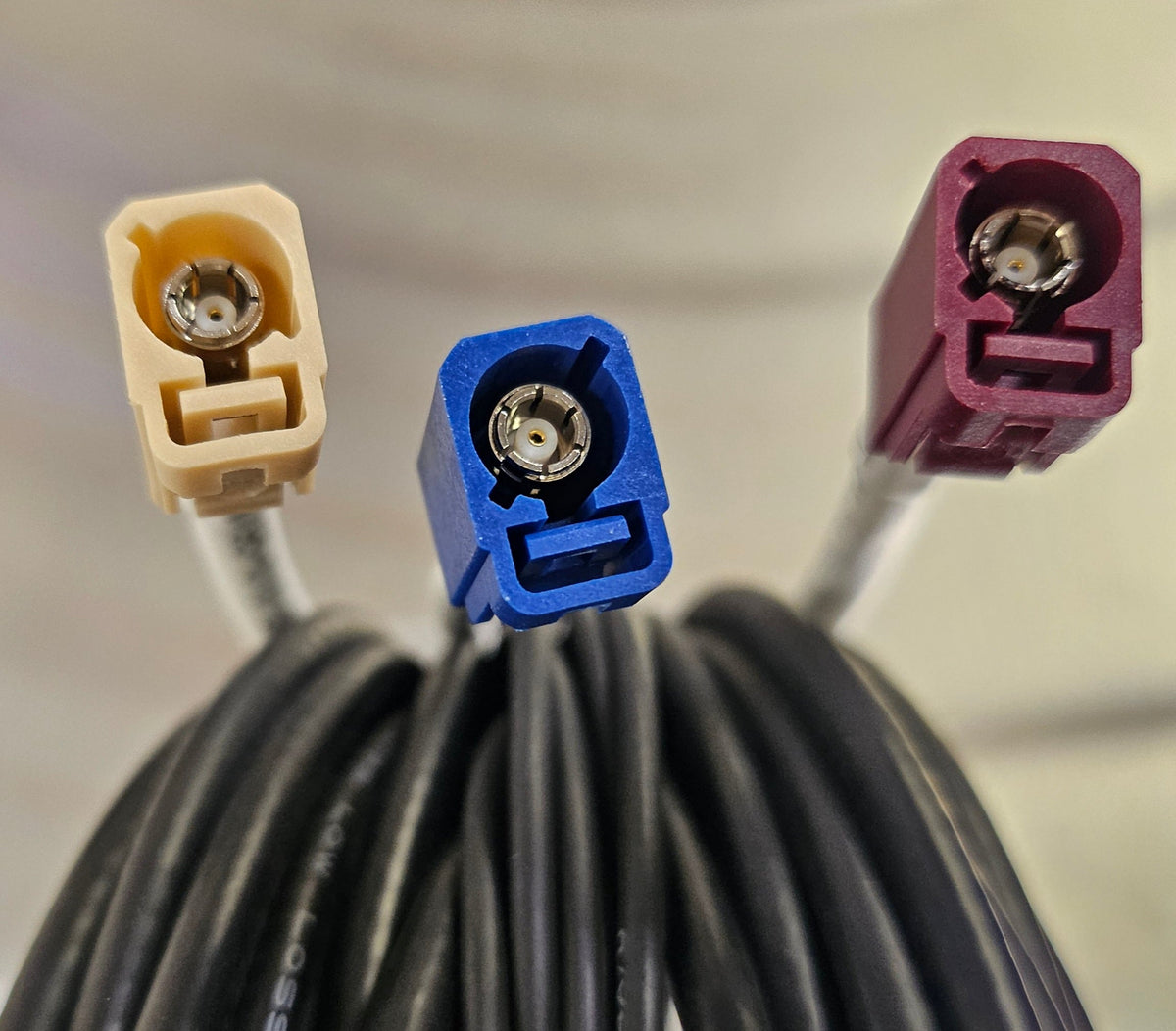

- 4x Cables with Violet Fakra Jack, Code D for Cellular
- 2x Cables with Beige Fakra Jack, Code I for WiFi
- 1x Cables with Blue Fakra Jack, Code C for GPS/GNSS
- This antenna is designed for cellular operation from 600-7125 MHz and meets all 5G specs, as well as 4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna includes 4x 5G/4G/LTE, 4x WiFi-6E, and 1x GNSS.

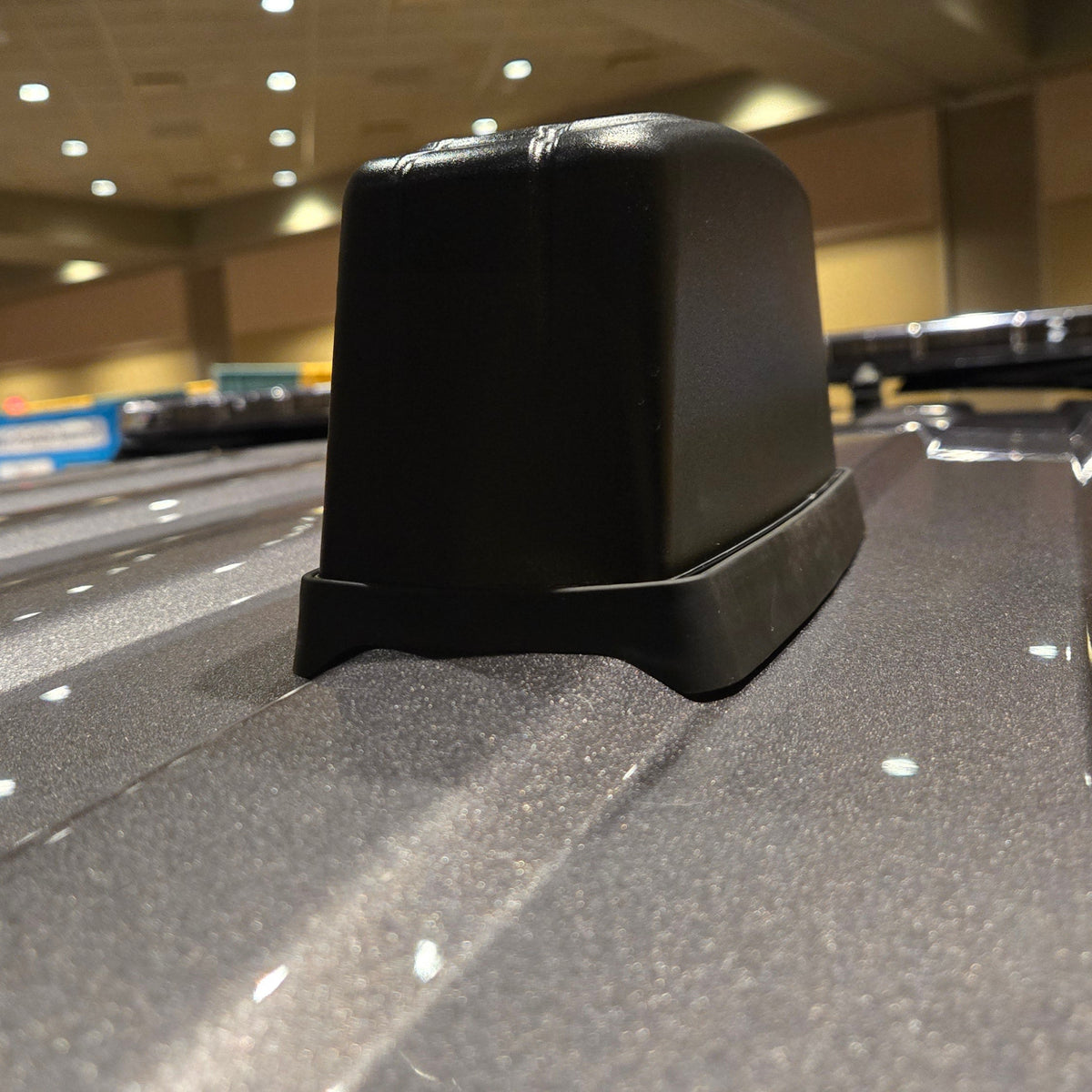

- USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
Technical Specifications
| SKU | R2BDM-G454W-17K-FAKRA-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 204 |
| Color | Black |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz (Cell) |
| Working Frequency 2 | 1710-7125 MHz (Cell) |
| Working Frequency 3 | 2400-2500 MHz (WiFi) |
| Working Frequency 4 | 4900-7125 MHz (WiFi) |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS/Beidou |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 2.0 dBi |
| Gain 2 | 6.4 dBi |
| Gain 3 | 7.5 dBi |
| Gain 4 | 5.3 dBi |
| Gain 5 | 30 ± 20 dB (LNA Gain) |
| Ground Plane Required | No |
| Height/Length (inches) | 8.05 |
|---|---|
| Height/Length (mm) | 204.4 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | UV Stable, UL94 Radome |

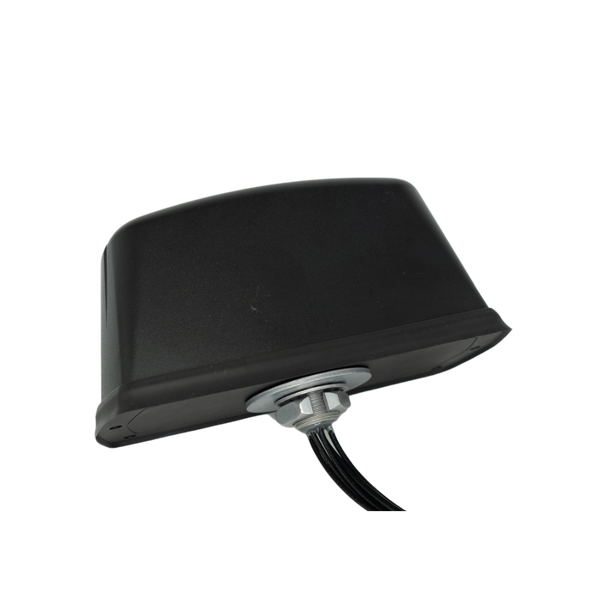

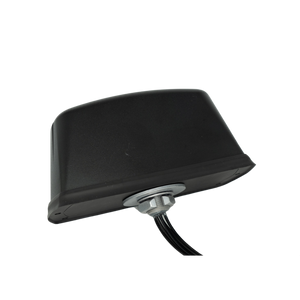

| Mount Style | Direct Mount |
| No Of Elements | 9 |
| Number of Cables | 9 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| Thickness/Diameter (inches) | 3.78 |
| Thickness/Diameter (mm) | 96.01 |
| VSWR: < X: 1 | <3:1 (cell)/<2.5:1 (WiFi) |
| Weight (lbs) | 8 |
| Width (inches) | 3.57 |
| Width (mm) | 90.6 |
