RDOMD-G454W-17K-S4S4R-B

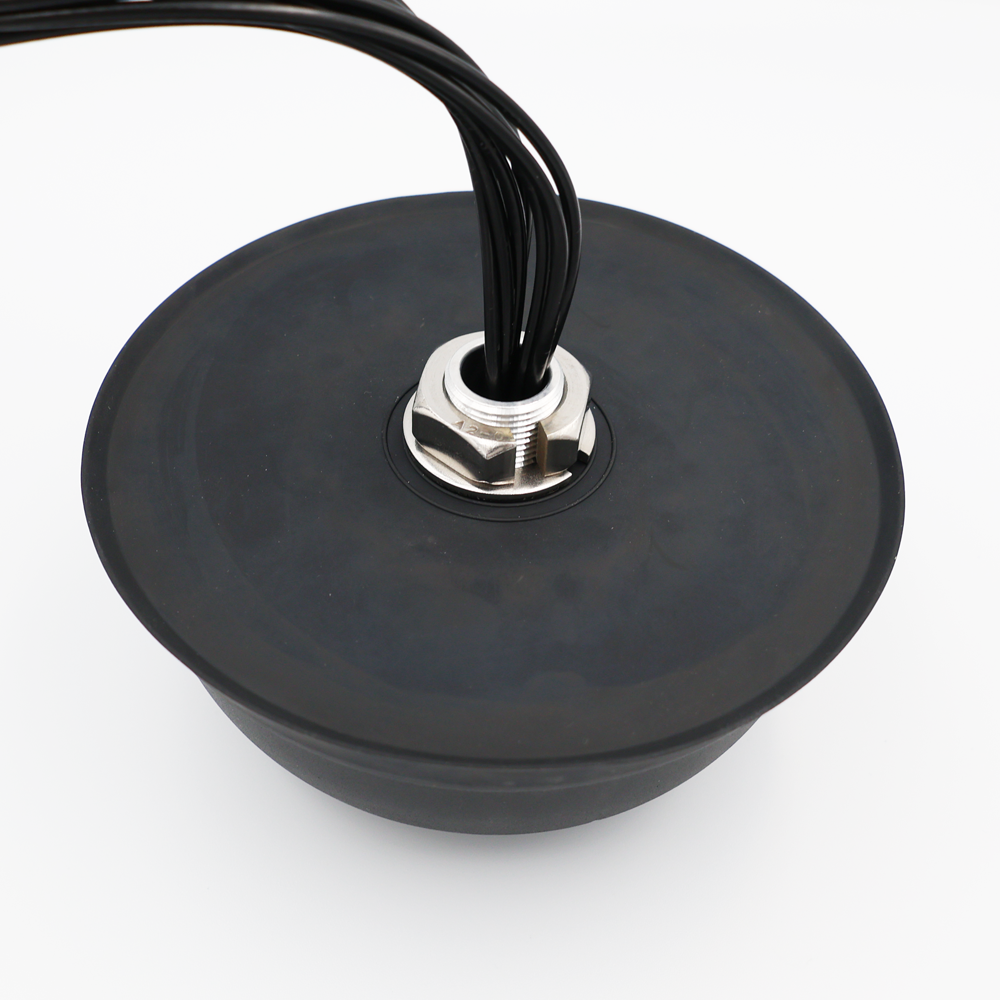

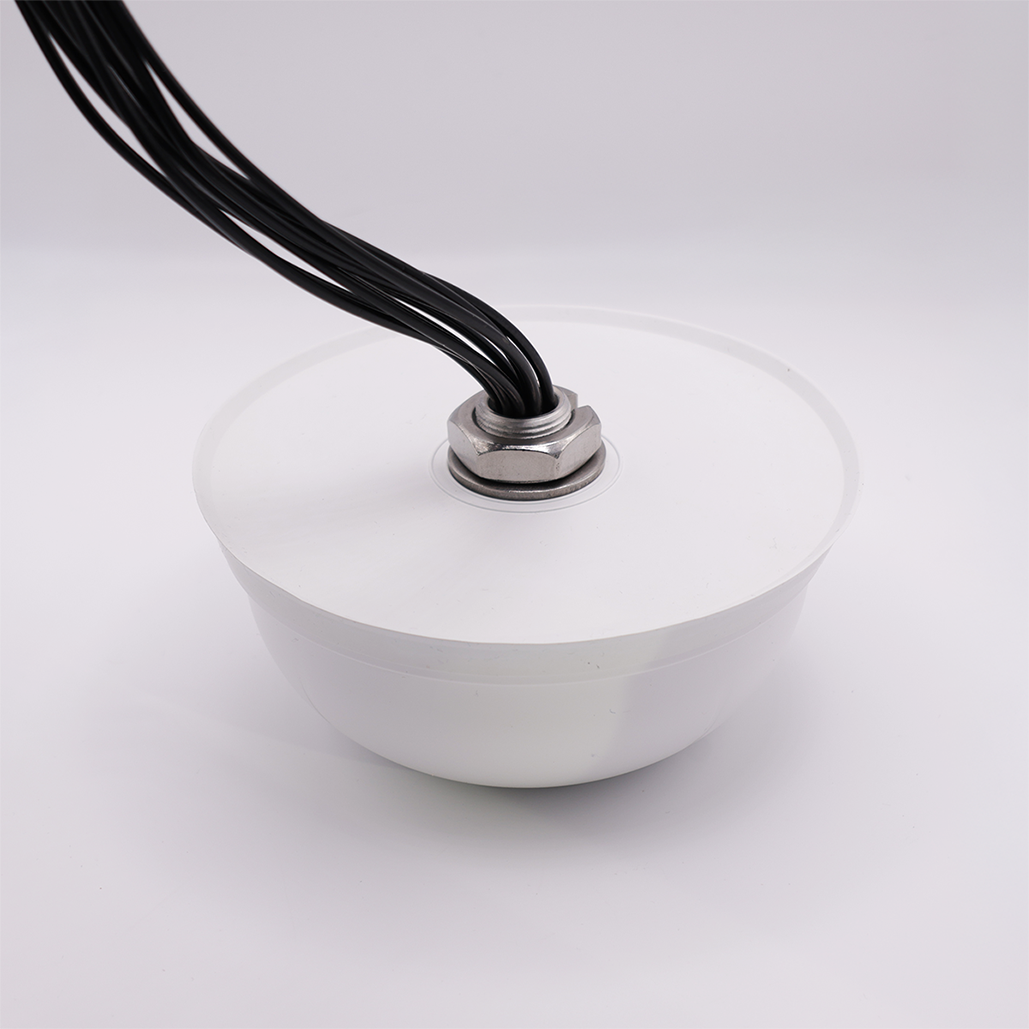

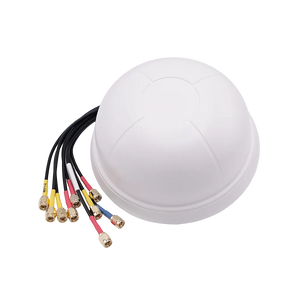

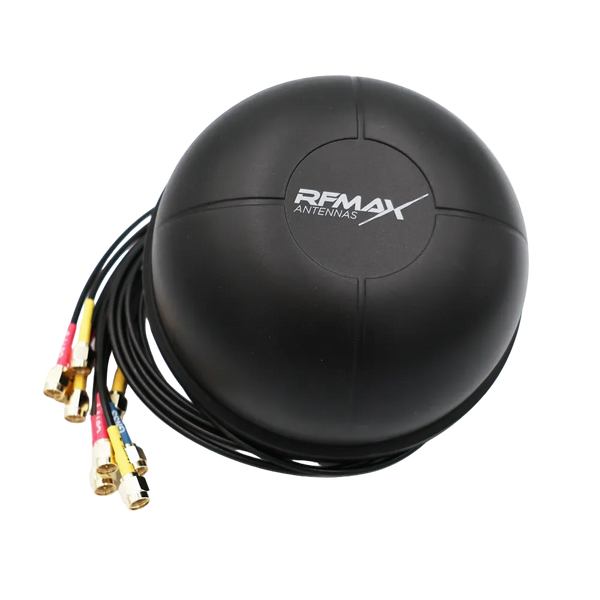

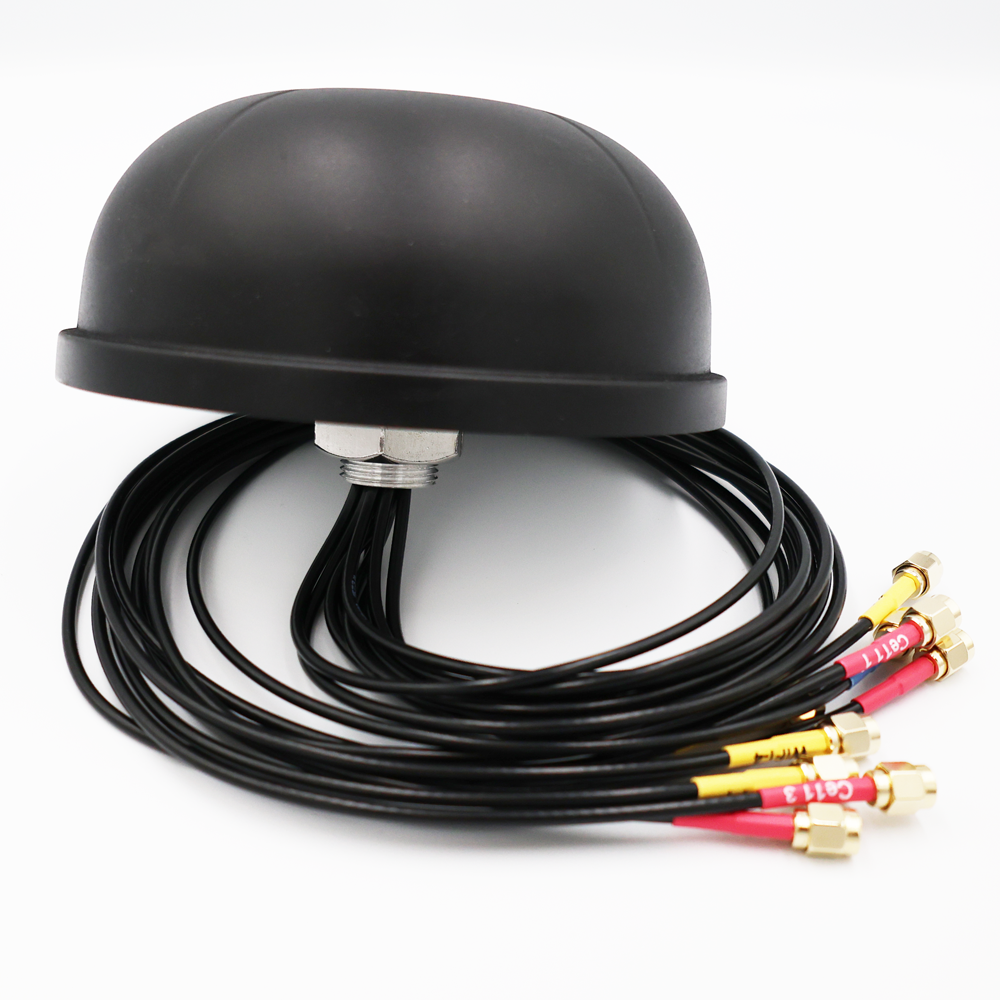

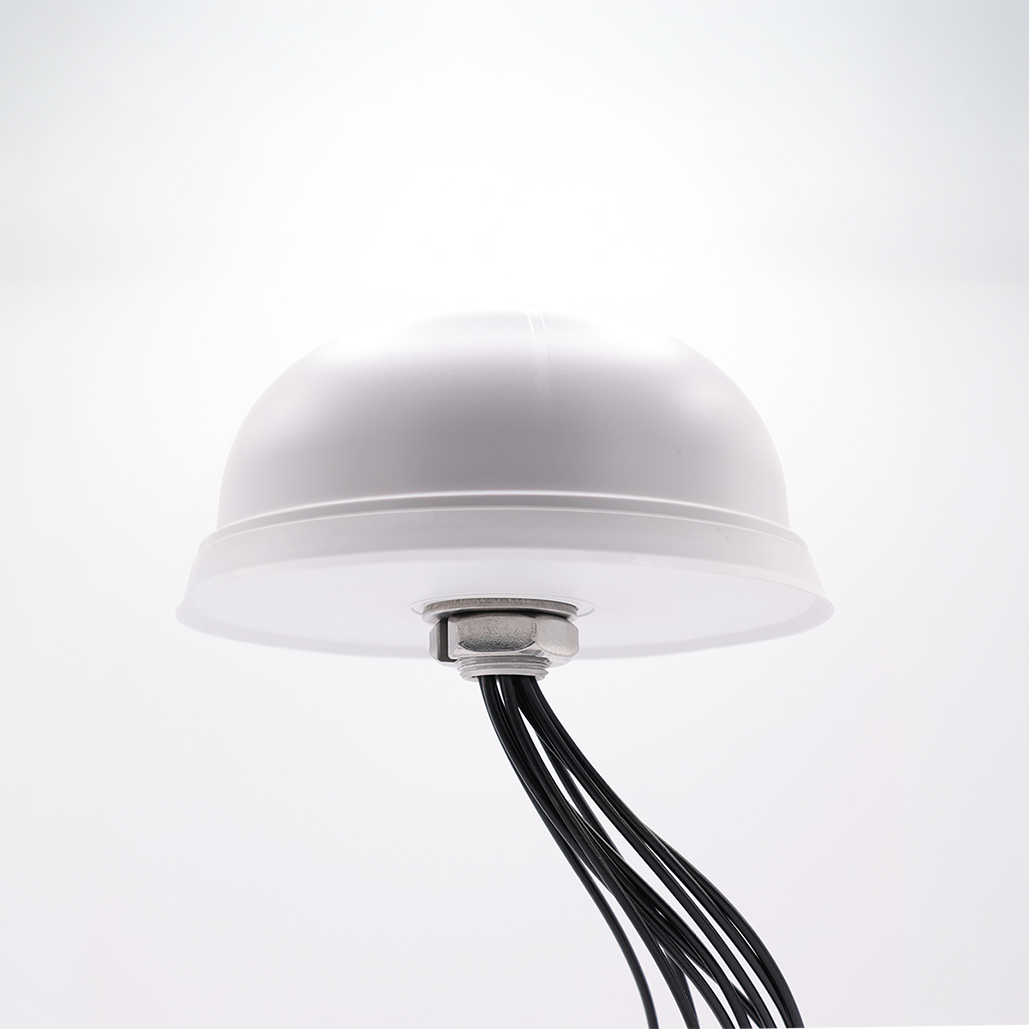

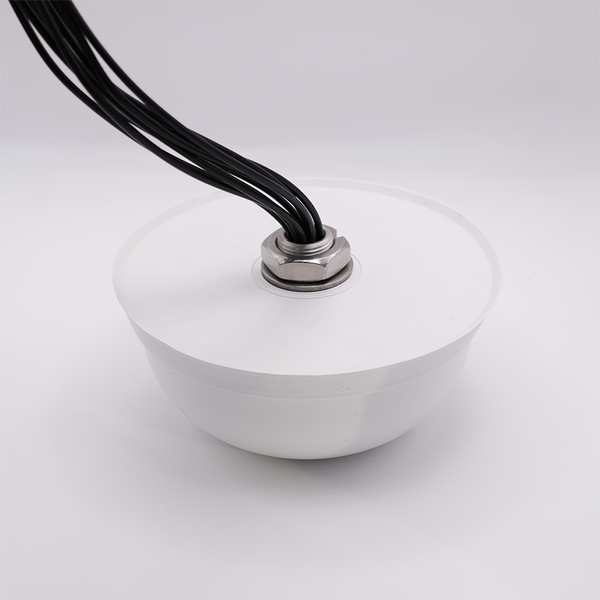

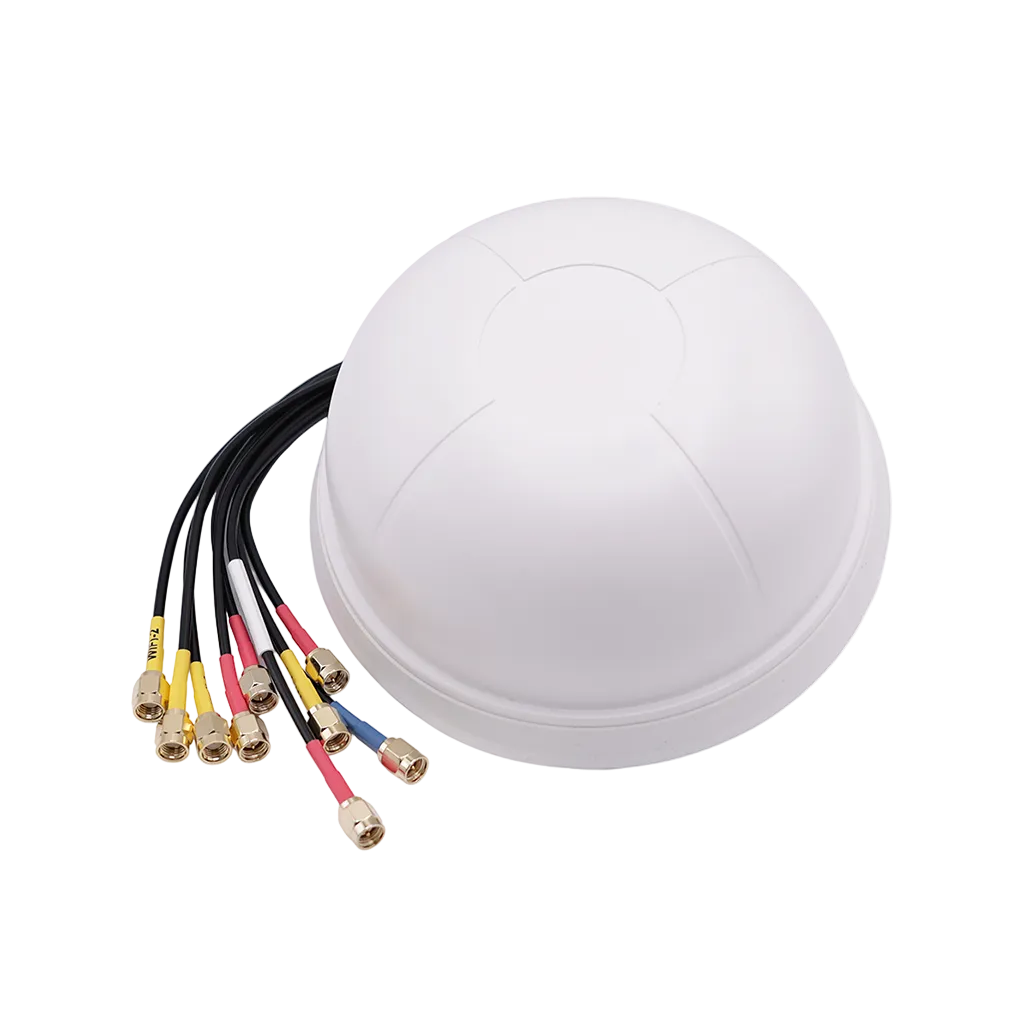

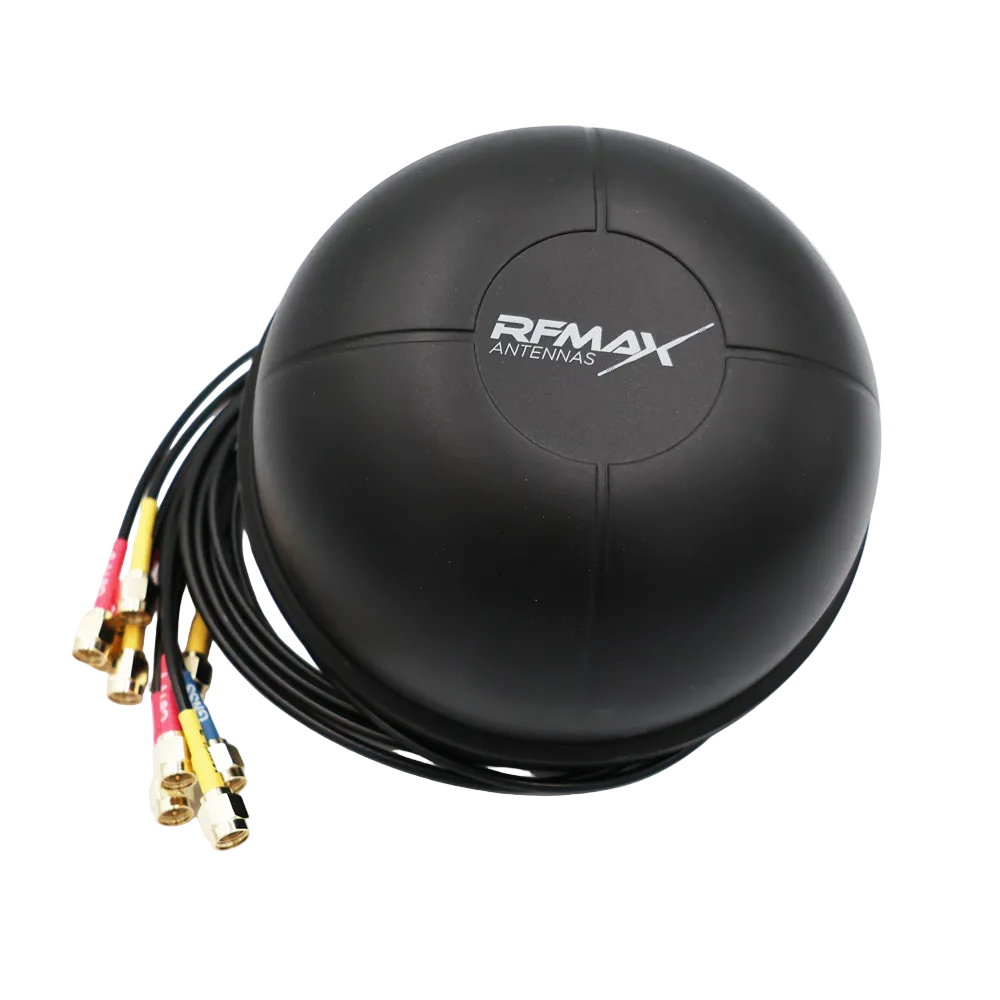

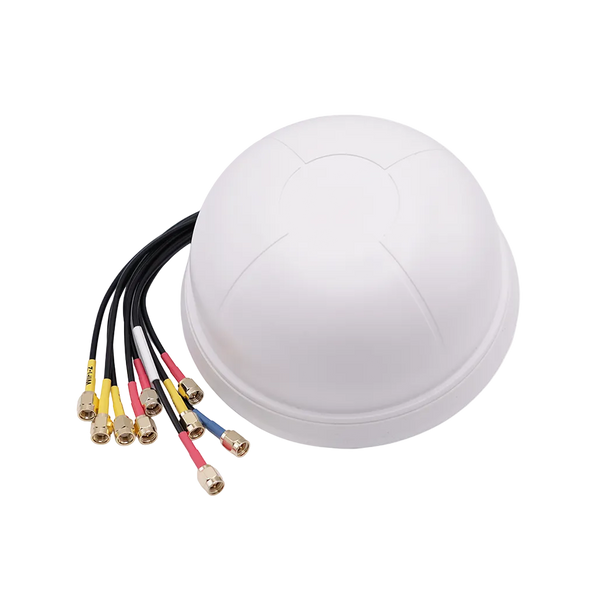

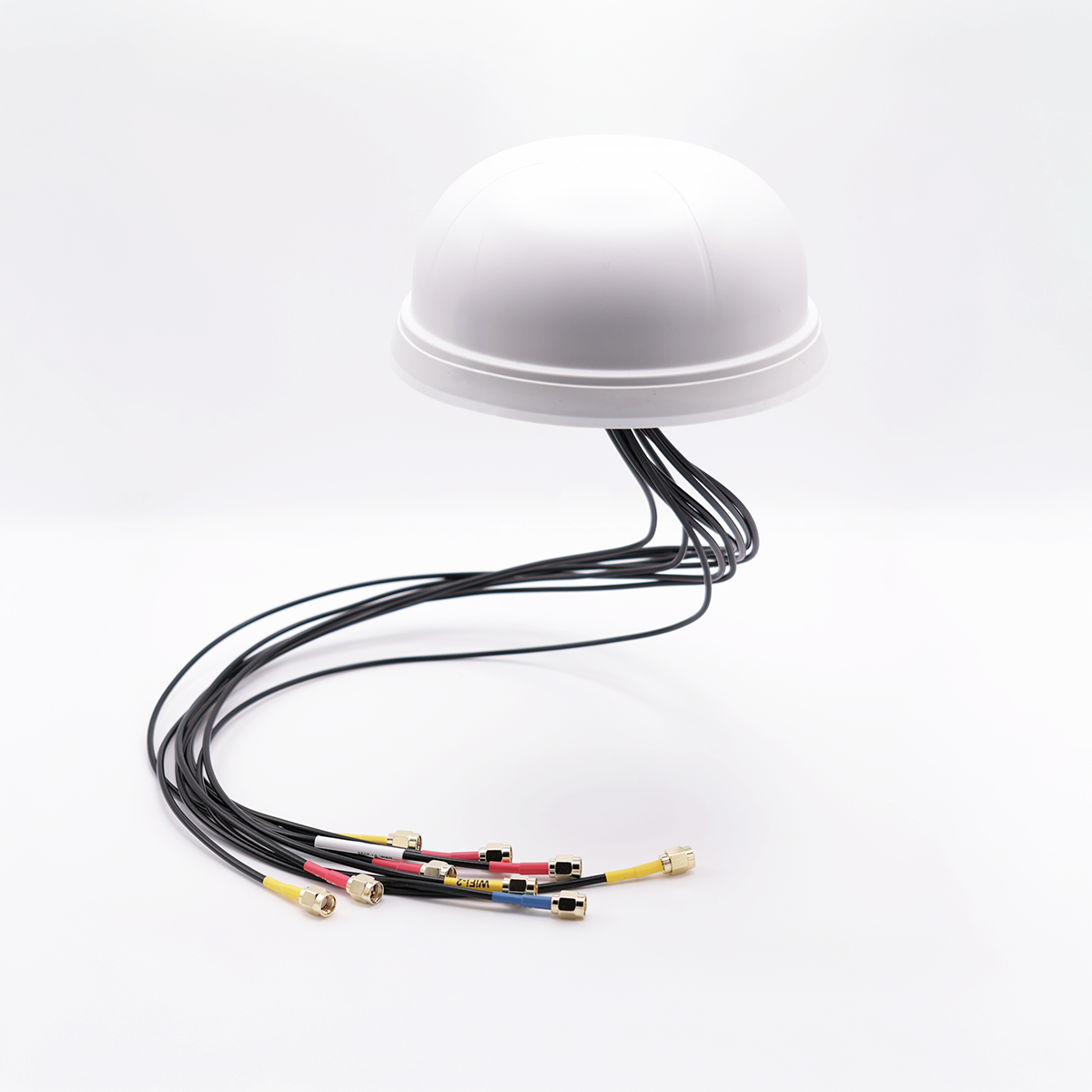

9 in 1 Low Profile "Dome" Antenna for R1900, R980, IBR1700, MG90 | 4x 4G/5G, 4x WiFi-6 & 1x GNSS
Configuration
- This is a rugged 9-in-1 multiband vehicle antenna integrating 4x 5G/LTE, 4x Wi-Fi 7, and 1x GNSS for high-speed, low-latency connectivity
- Designed for fleet, transit, and IoT applications, it features a compact IP67-rated housing with broad carrier support, including Band 71 and CBRS
- 9-in-1 Multiband Design: 4x 5G/LTE, 4x Wi-Fi 7, 1x GNSS in a single antenna
- Wideband Coverage: Supports 617960 MHz, 17107125 MHz, and GNSS bands
- Carrier & CBRS Ready: Includes Band 71 and CBRS Bands 42 & 48
- High RF Performance: Up to 5 dBi gain with excellent efficiency and isolation
- Rugged & Weatherproof: IP67-rated housing for extreme environments
- Compact, Low-Profile Form Factor: Ideal for vehicle and mobile installations
- The 17 ft version comes with pre-terminated 2 Foot low-loss cables+ 15 Ft Extension cable kit
Technical Specifications
| SKU | RDOMD-G454W-17K-S4S4R-B |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | SMA-Male |
| Connector 2 | RP-SMA Male |
| Connector 3 | SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1710-7125 MHz |
| Working Frequency 3 | 2400-2500 MHz |
| Working Frequency 4 | 4900-7125 MHz |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 2 |
| Gain 2 | 5 |
| Gain 3 | 3 |
| Gain 4 | 5 |
| Ground Plane Required | Yes |
|---|---|
| Height/Length (inches) | 2.92 |
| Height/Length (mm) | 74.3 |
| Includes | Includes 15 Foot Cable Kit |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Max Input Power (W) | 20 Watts |
| No Of Elements | 9 |
| Number of Cables | 9 |
| Operating Temp (celsius) | -40 to +80 |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 5.94 |
| Thickness/Diameter (mm) | 151 |
| VSWR: < X: 1 | <2.5:1 |
