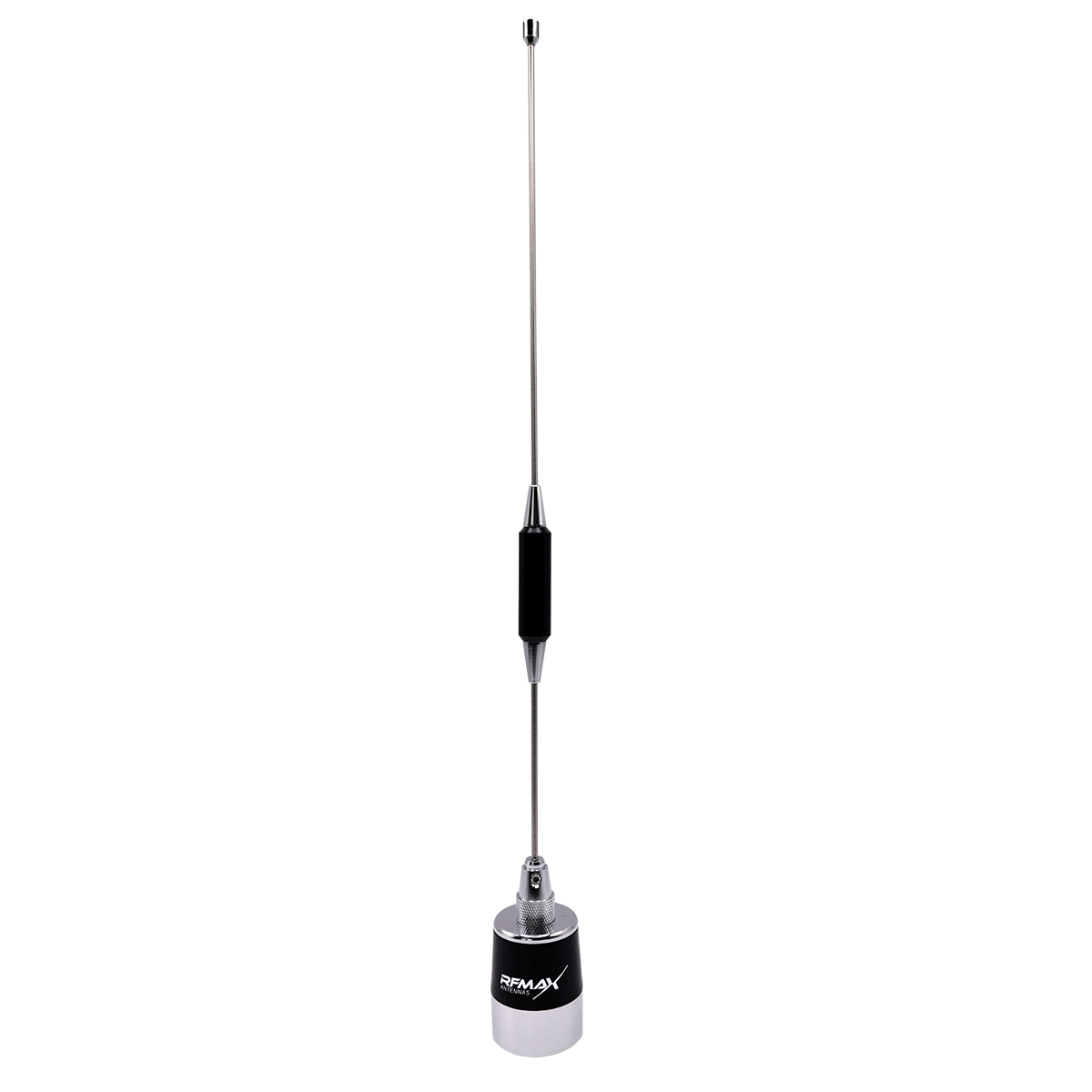

RBCO-896-3-C
896-970 MHz Base Coil NMO Whip for LMR & Machine to Machine Applications
- 896-960 MHz UHF mobile whip antenna for LMR, public safety, and M2M applications
- Omnidirectional base coil design with vertical polarization for 360° coverage
- Engineered for performance with 50 Ohm impedance, 2.5:1 VSWR, and 200W power handling

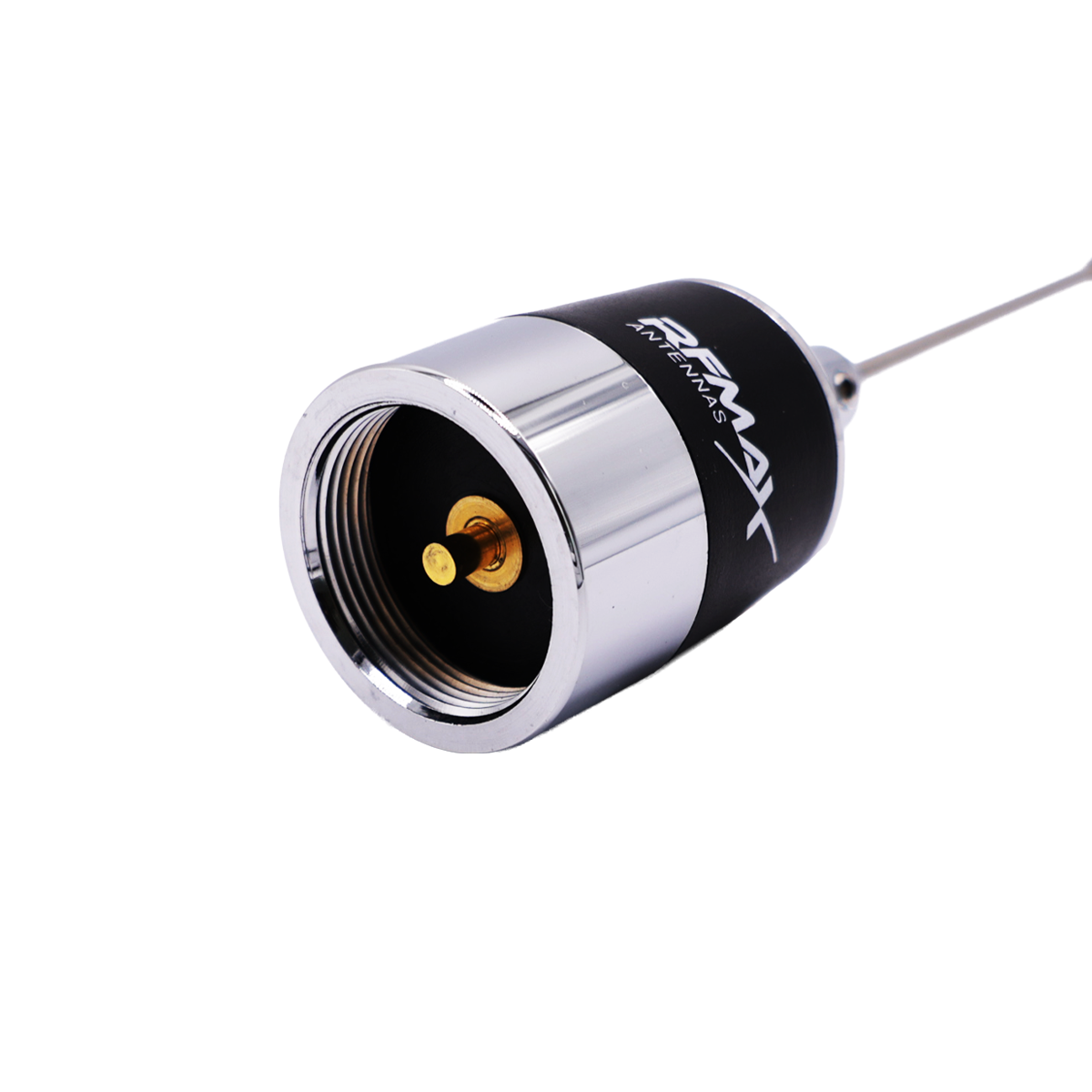

- Stainless steel whip with chrome NMO base for rugged vehicle installations
- Compact 13.4" low-profile design ideal for fleet and mobile mounting
- IP67-rated, weatherproof construction for harsh outdoor environments
- Optimized for 900 MHz data networks, telemetry, and mission-critical communications
Technical Specifications
| SKU | RBCO-896-3-C |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 120 |
| Cable Type | RG-174 |
| Color | Chrome |
| Directional or Omni | Omni Directional |
| Working Frequency | 896-970 MHz |
| Antenna Category | 900 MHz |
| Gain | 3 dBi |
| Ground Plane Required | Yes |
| Height/Length (inches) | 13.4 |
|---|---|
| Height/Length (mm) | 339 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Max Input Power (W) | 200W |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.44 |
| Thickness/Diameter (mm) | 37 |
| VSWR: < X: 1 | <2.0:1 |
