R-G453W-17-S4S3R-B

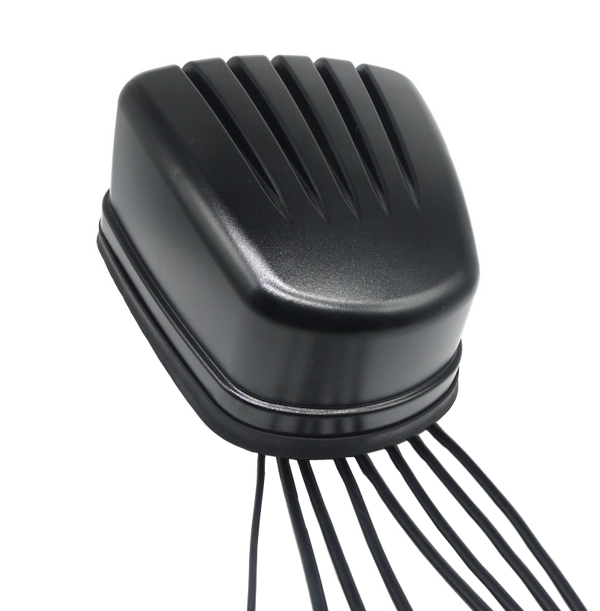

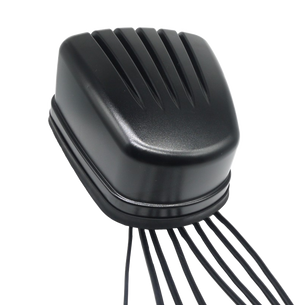

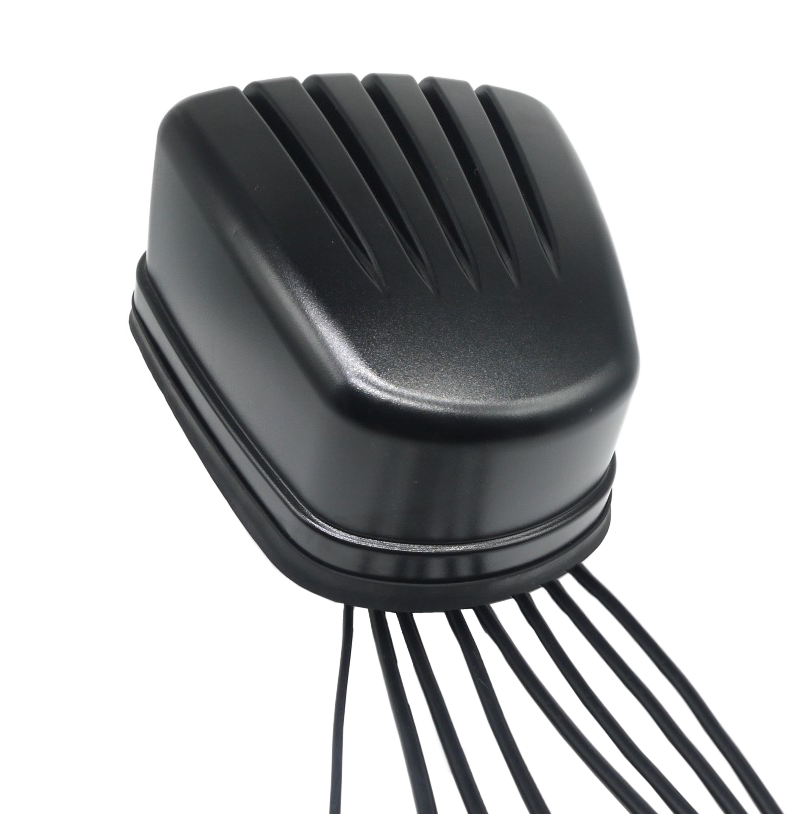

8-in-1 Multiband Antenna, 4x 5G/4G/LTE, 3x WiFi-6E, 1x GNSS, for R1900, 17 Ft

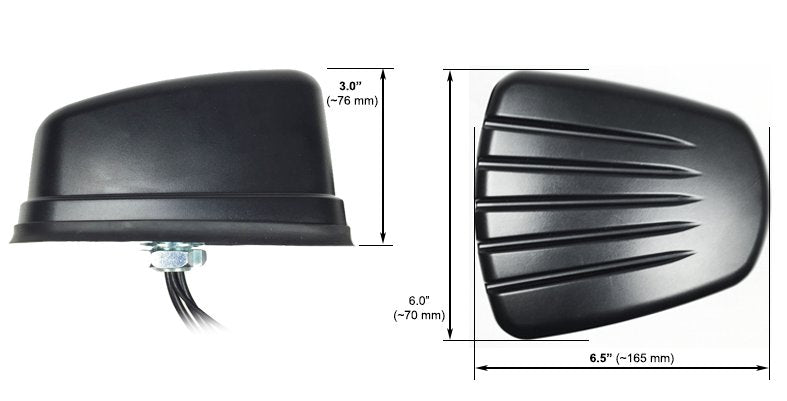

- 8-in-1 Antenna Size: 5.98 x 6.48 x 3 Inches
- Ground Plane Independent
- 17 Feet of cable with SMA Male on GNSS and Cell and RP-SMA Male on WiFi
- Excellent performance at 4G/LTE and 5G (Band 71)
- Elements: GPS/GNSS, 4x4 MiMo 4G/5G Cellular, 3x3 MiMo WiFi-6E
- High Gain at all frequencies for maximum connection speeds
- Vehicular Rated for Mobile (IP67 rated)
- Easy to install (just one, 7/8" hole)
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Compatible with Cradlepoint Modem / Gateway / Router IBR900, R1900, IBR1700
- Compatible with Peplink BR, & MB series Radios
Technical Specifications
| SKU | R-G453W-17-S4S3R-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 204 |
| Cable Type | RG-58 |
| Color | Black |
| Connector 3 | SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 |
| Working Frequency 2 | 1710-2700 |
| Working Frequency 3 | 3300-4200 |
| Working Frequency 4 | 4400-5000 |
| Working Frequency 5 | 5150-7125 |
| Working Frequency 6 | 2400-2500 |
| Working Frequency 7 | 4900-7125 |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 2.3-5.2 dBi |
| Gain | 2.3 dBi |
| Gain 2 | 4.6 dBi |
| Gain 3 | 5.2 dBi |
| Gain 4 | 4.7 dBi |
|---|---|
| Gain 5 | 5.4 dBi |
| Gain 6 | 6.0 dBi |
| Gain 7 | 5.7 dBi |
| Ground Plane Required | No |
| Height/Length (inches) | 5.98 |
| Height/Length (mm) | 151.9 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | PC, UV Protected |
| Max Input Power (W) | 45W |

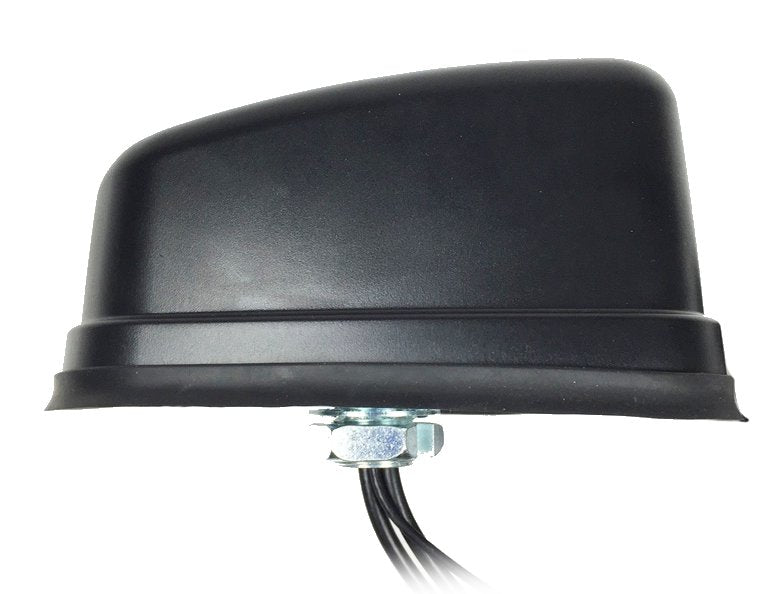

| Mount Style | Through hole / direct roof mount (use 7/8" hole) |
| Number of Cables | 8 |
| Operating Temp (celsius) | -40 to +85 |
| Thickness/Diameter (inches) | 6.48 |
| Thickness/Diameter (mm) | 164.5 |
| VSWR: < X: 1 | <2:1 |
| Weight (grams) | 550 |
| Weight (lbs) | 1.22 |
