R9027-WHP-RTF
7x7 inch RFID Antenna 902-928 MHz FCC, IP-67, Circularly Polarized, RP TNC Female connector
- Circularly Polarized 902-928 Mhz for FCC RFID
- IP67 Outdoor Rated, includes "weep holes" for drainage
- Size: 7x7 Inches & 1.2 Inches Thick
- Gain: 7.5 dBic gain
- Beamwidth: 72 x 77 Degrees Beamwidth

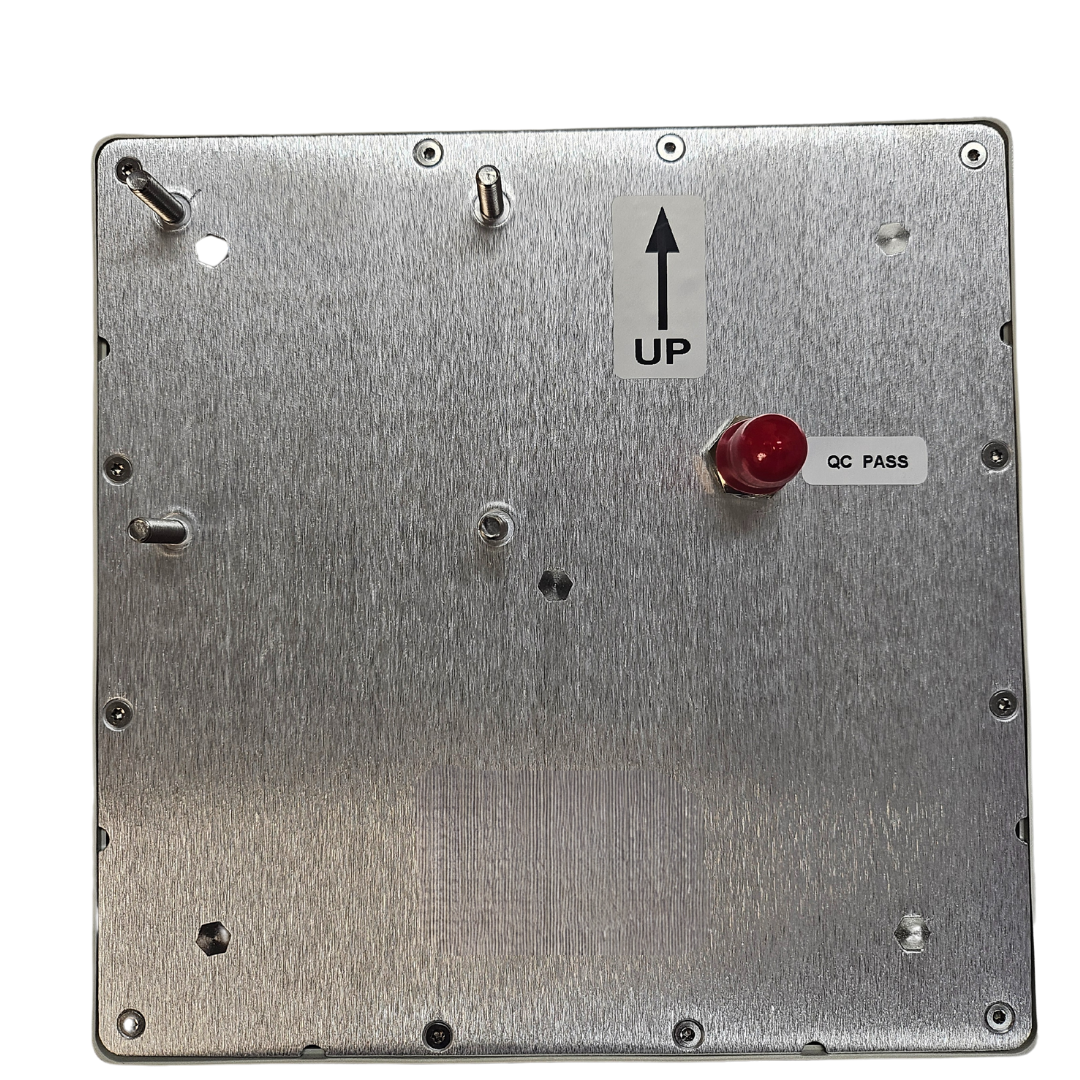

- Connector: Fixed RPTNC-Female (on rear)

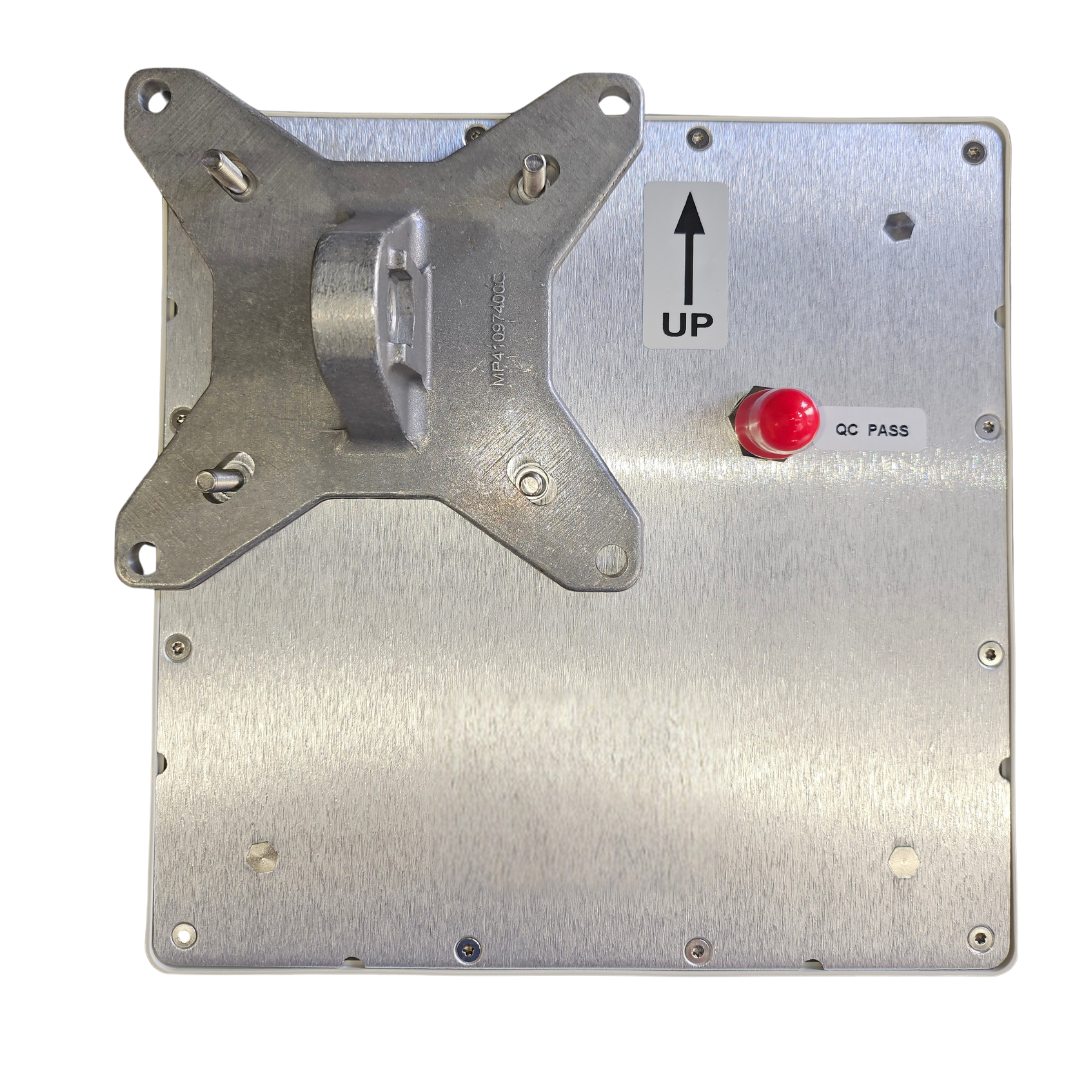

- Mounting: (4) M6 Mounting Studs Spaced at 66mm
- Applications: Outdoor Parking Gates, Race Timing, High Pressure Wash Downs
- Mounting Bracket NOT Included / Sold Separately.
- Requires use of HDMNT-100MM mounting bracket. Click Here
Technical Specifications
| SKU | R9027-WHP-RTF |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | RP TNC-Female |
| Connector Type | Connector - Rear |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Gain | 7.5 |
| Height/Length (inches) | 7 |
| Height/Length (mm) | 190 |
| IP Rating | IP67 (outdoor rated, with weep holes) |
| Material | Plastic |
|---|---|
| Mount Style | Mast or Wall |
| Operating Temp (celsius) | -30 to +70 |
| Polarity | Circular |
| Thickness/Diameter (inches) | 1.2 |
| Thickness/Diameter (mm) | 30 |
| Weight (grams) | 800 |
| Weight (lbs) | 1.5 |
| Width (inches) | 7 |
| Width (mm) | 190 |
