RDOMD-G452W-2-S4S2R-B-1
7-in-1 Low Profile Dome Antenna for R1900, R980 | 4x 4G/5G, 2x WiFi-6 & 1x GNSS
Cable Length

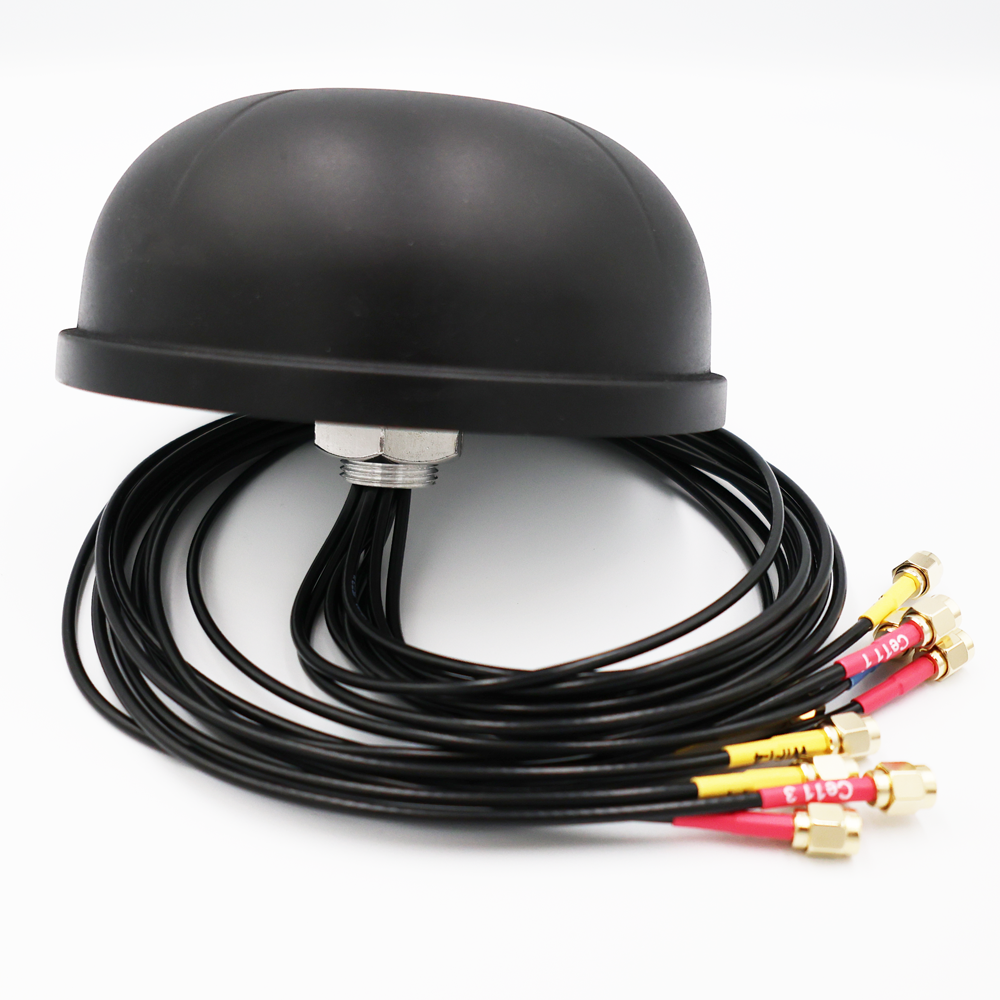

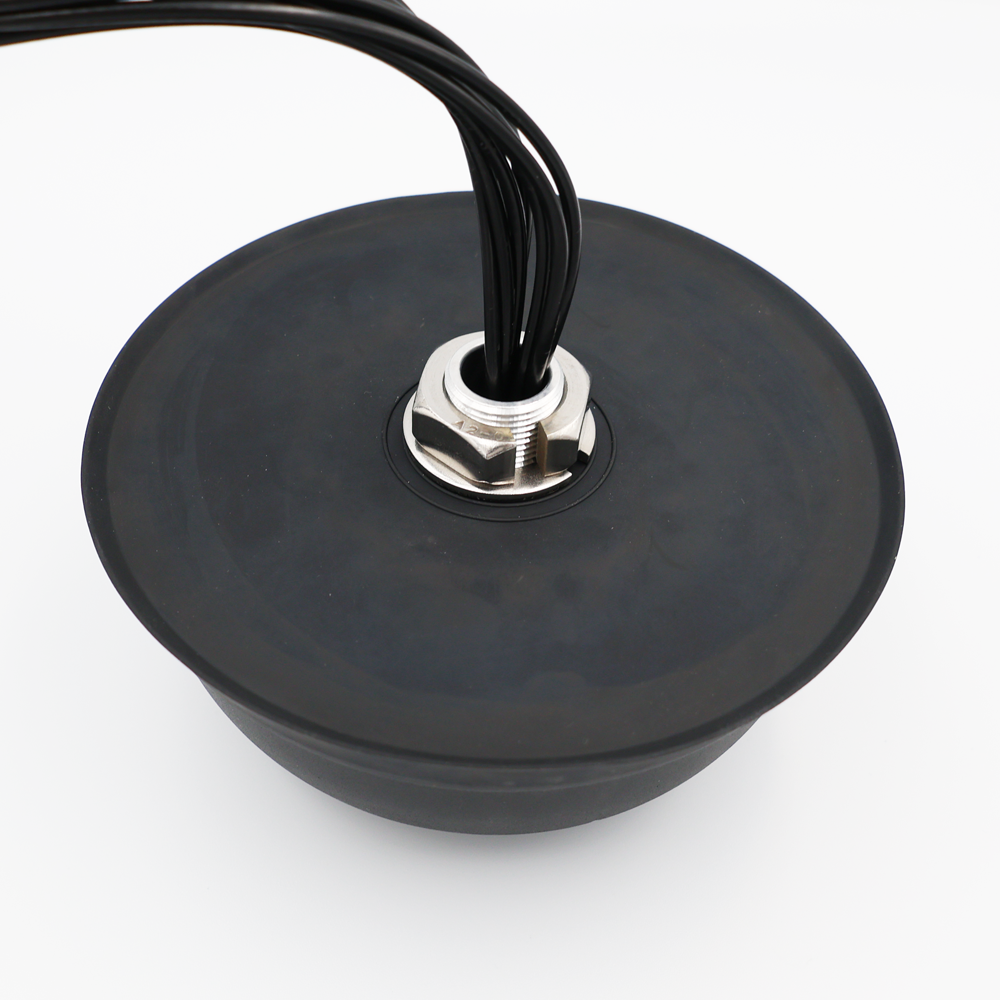

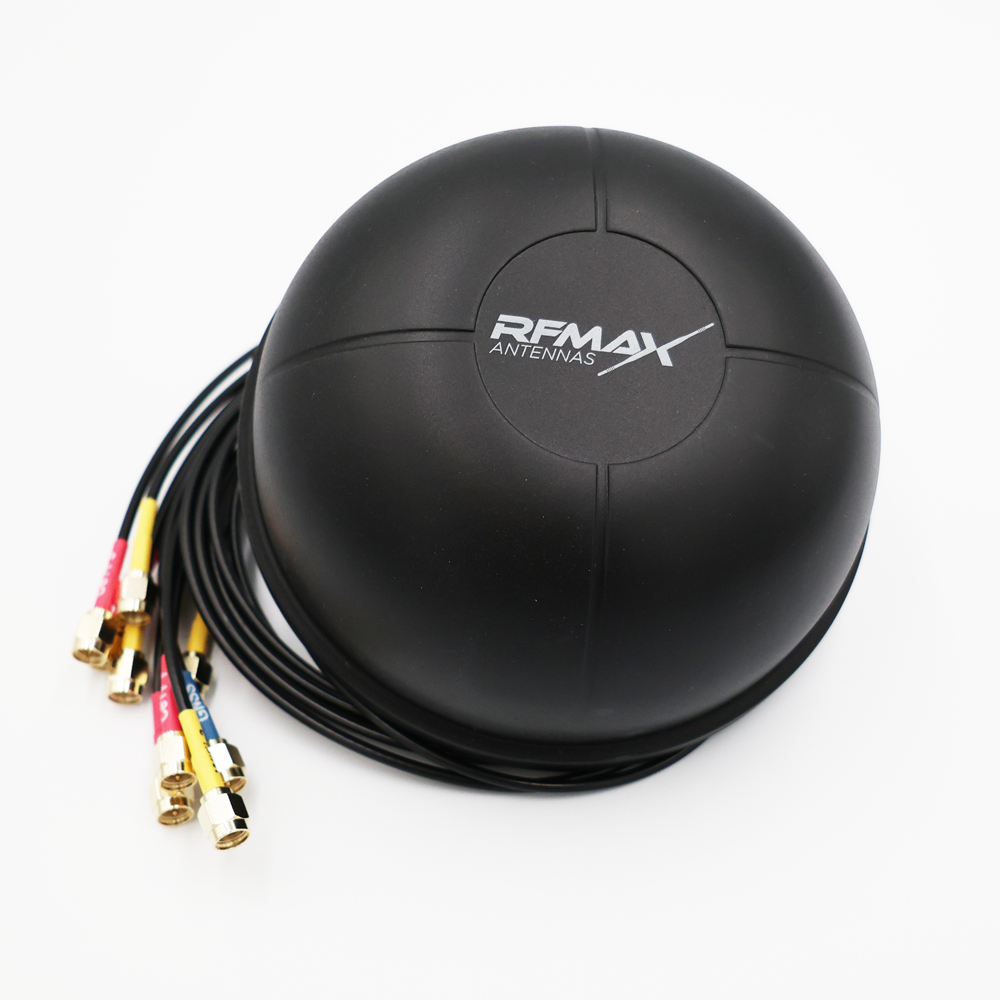

The RFMAX RDOMD Series is a rugged 7-in-1 multiband vehicle antenna integrating 4x 5G/LTE, 2x Wi-Fi 7, and 1x GNSS for high-speed, low-latency connectivity. Designed for fleet, transit, and IoT applications, it features a compact IP67-rated housing with broad carrier support, including Band 71 and CBRS.
Technical Specifications
| SKU | RDOMD-G452W-2-S4S2R-B-1 |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | RP-SMA Male |
| Connector 3 | SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1710-7125 MHz |
| Working Frequency 3 | 2400-2500 MHz |
| Working Frequency 4 | 4900-7125 MHz |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 2 |
| Gain 2 | 5 |
| Gain 3 | 3 |
| Gain 4 | 5 |
| Ground Plane Required | Yes |
|---|---|
| Height/Length (inches) | 2.92 |
| Height/Length (mm) | 74.3 |
| Impedance | 50 ohm |
| OK for Outdoor Use | Indoor/Outdoor |
| IP Rating | IP67 |
| Max Input Power (W) | 20 Watts |
| No Of Elements | 7 |
| Number of Cables | 7 |
| Operating Temp (celsius) | -40 to +80 |
| Polarity | Vertical |
| Antenna Style | "Dome" Multi-Element Antenna |
| Thickness/Diameter (inches) | 5.94 |
| Thickness/Diameter (mm) | 151 |
| Vehicular | Yes |
| VSWR: < X: 1 | <2.5:1 |
