R2BDM-G452W-2-S4S2R-B

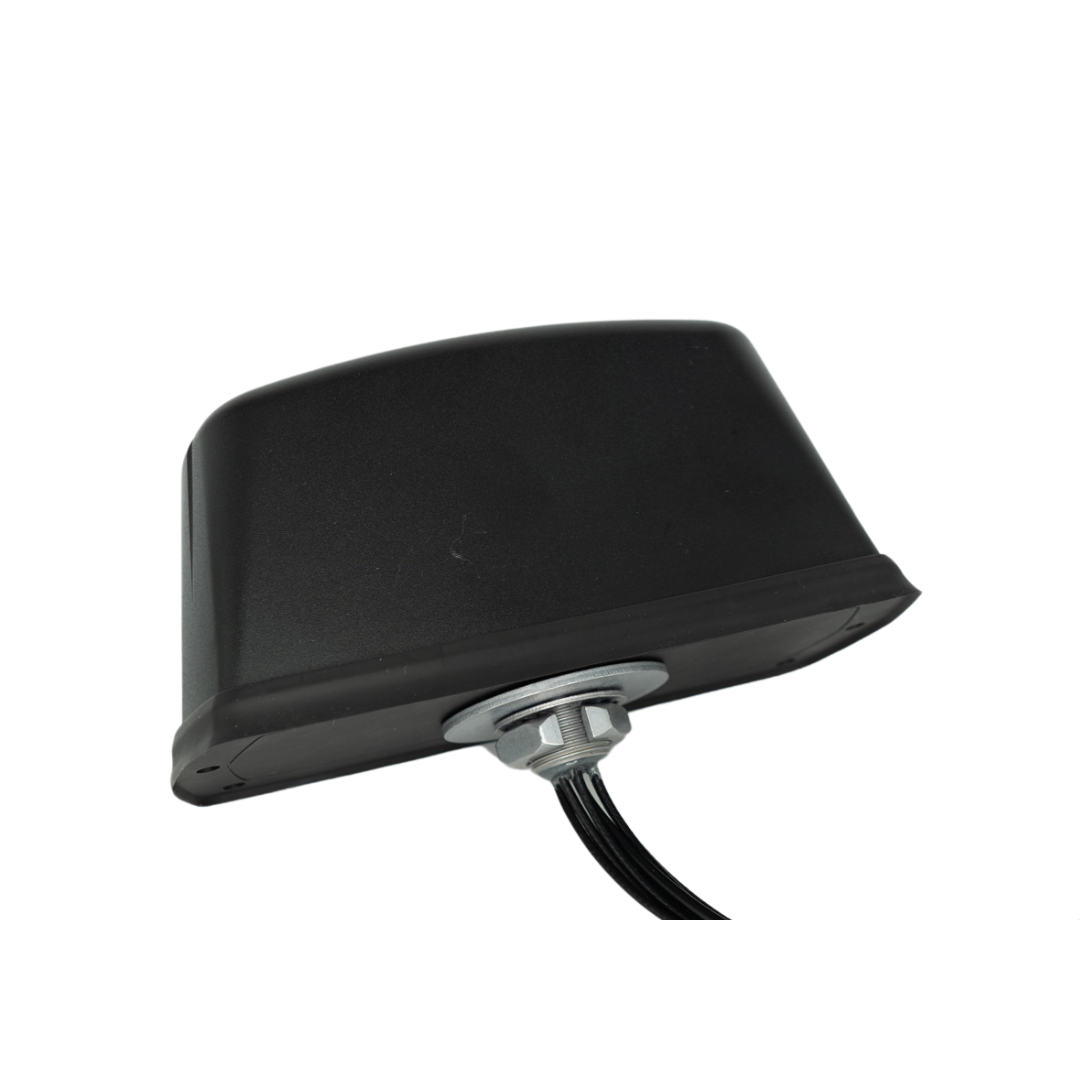

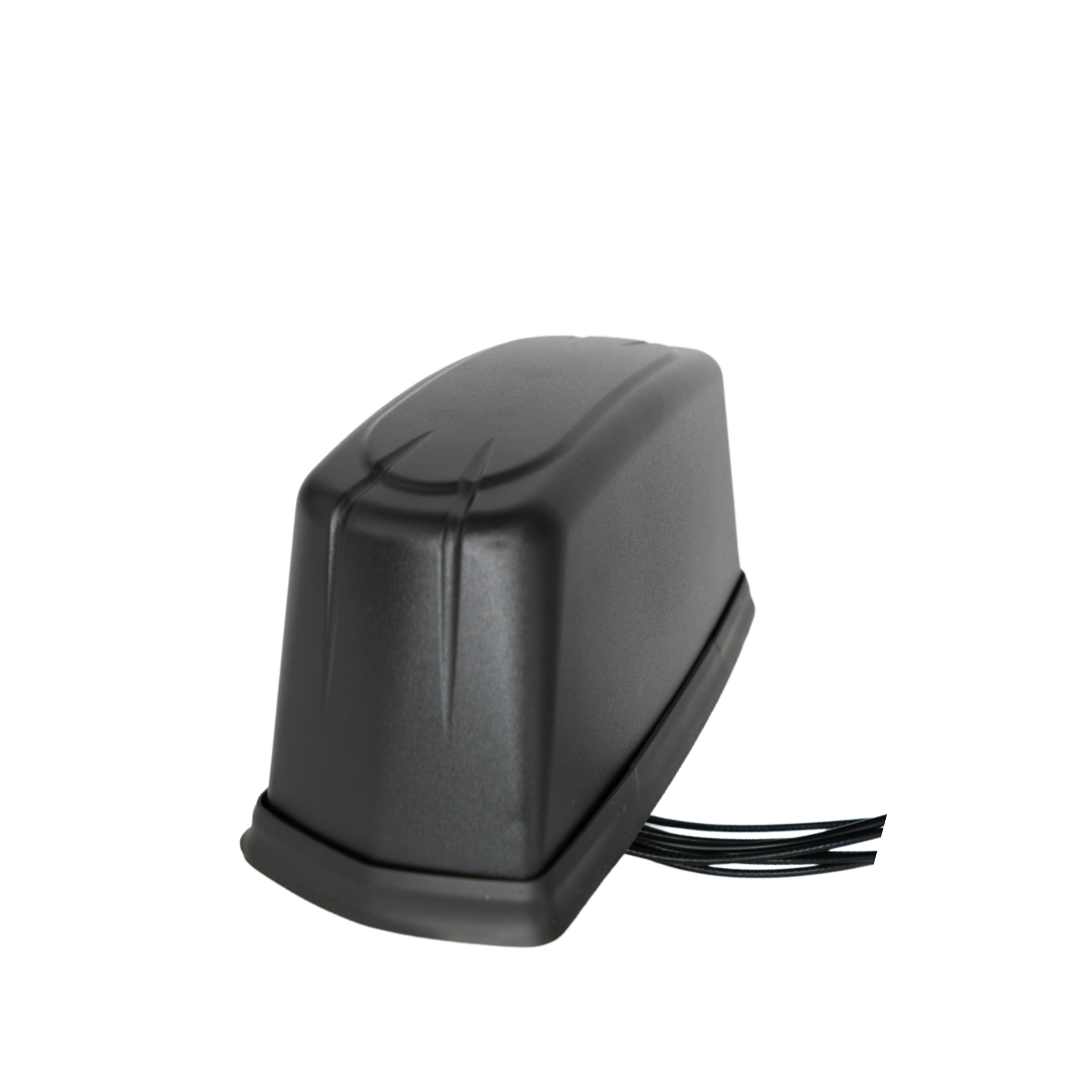

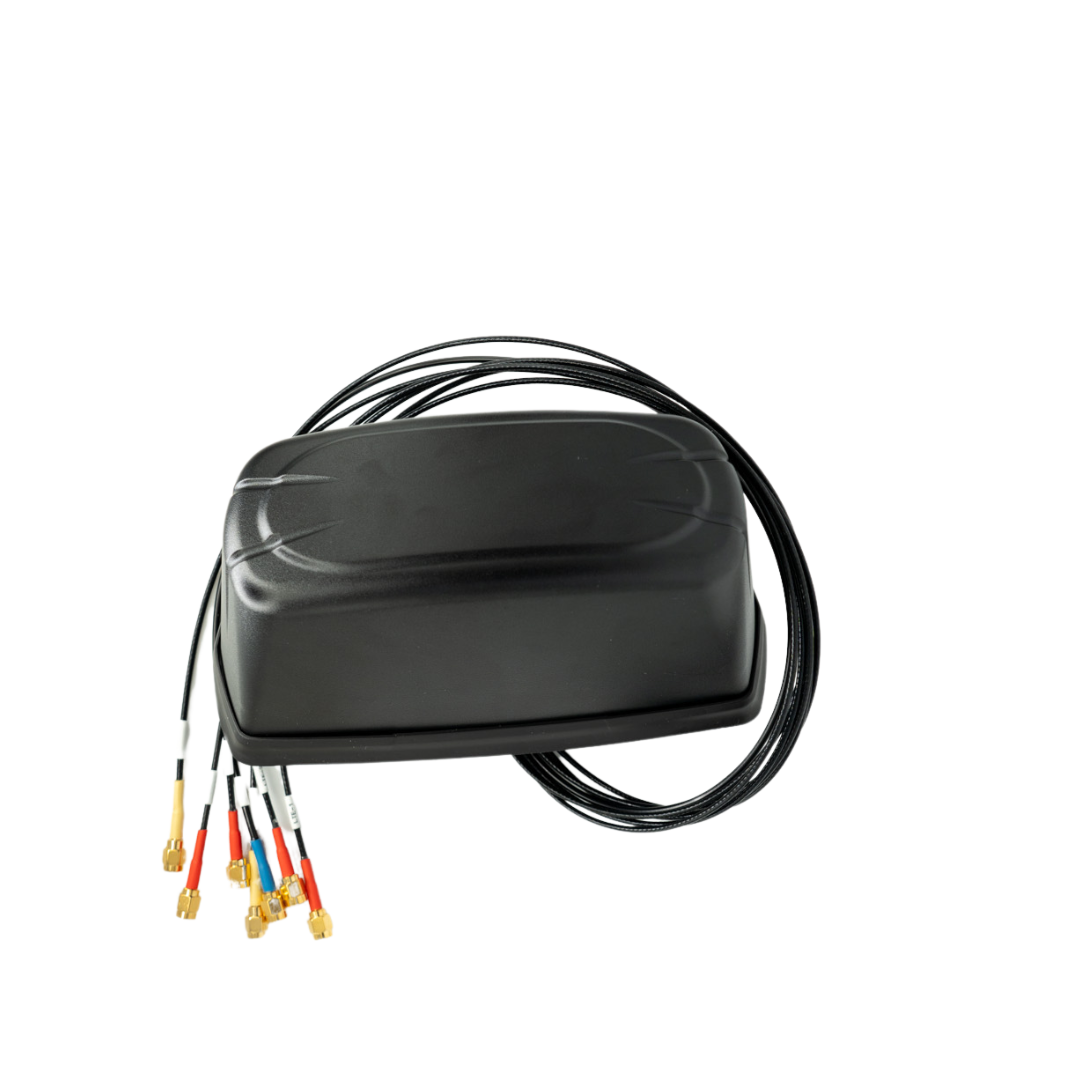

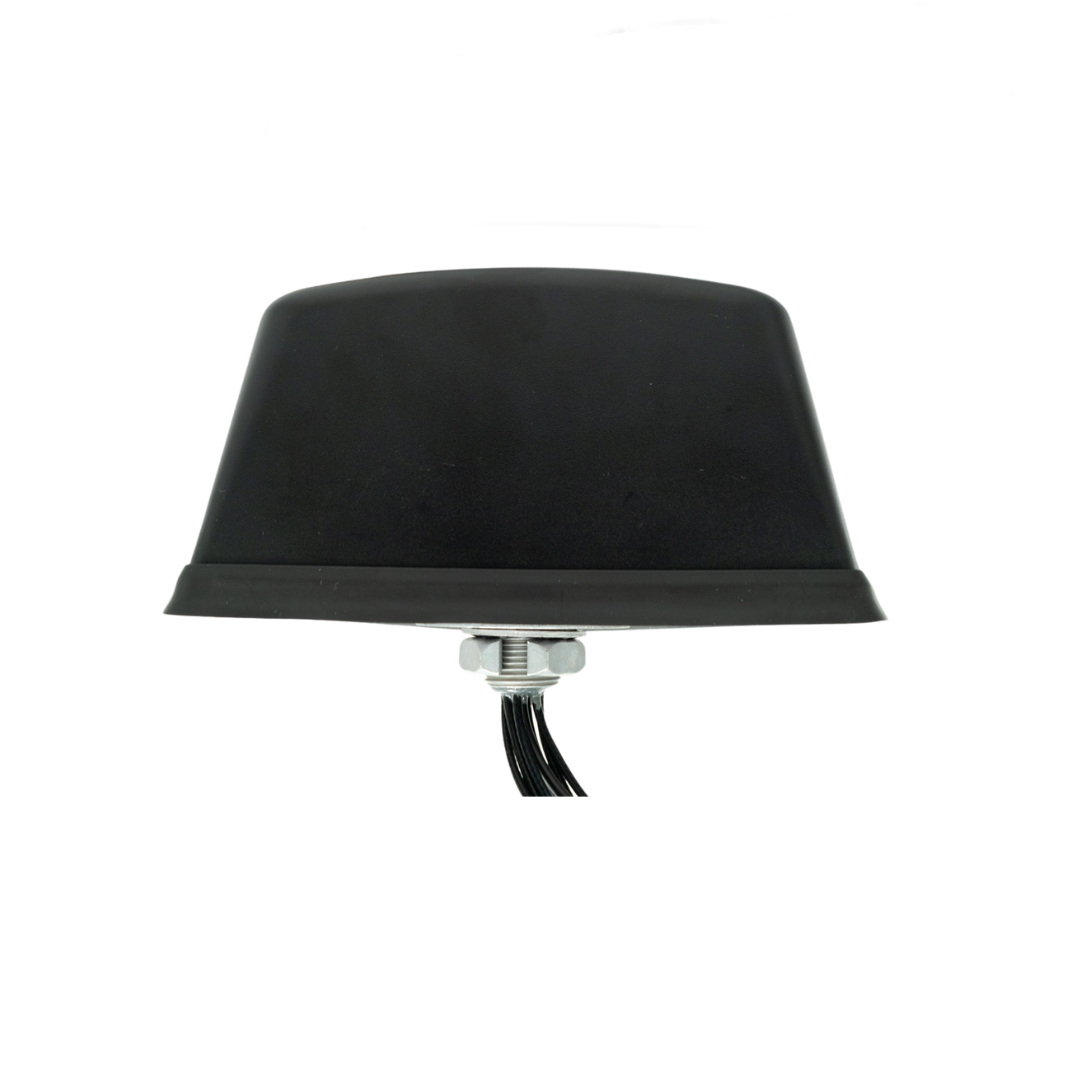

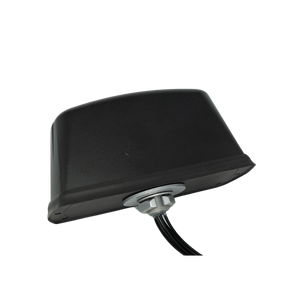

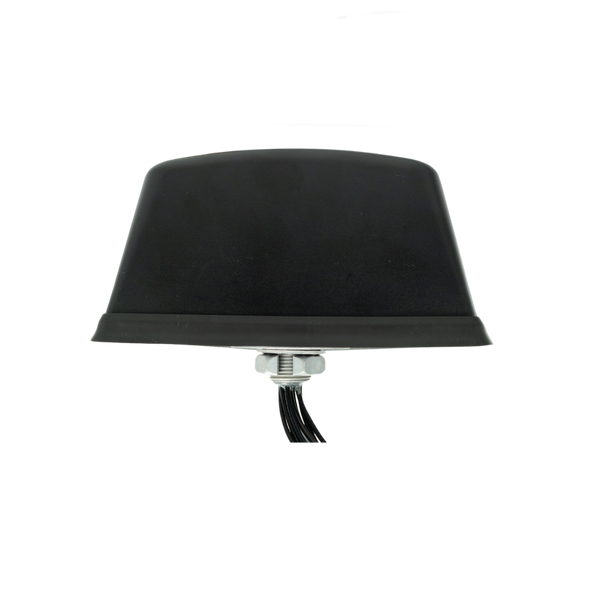

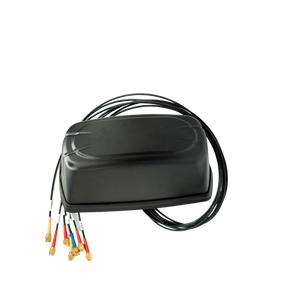

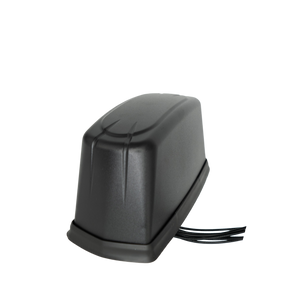

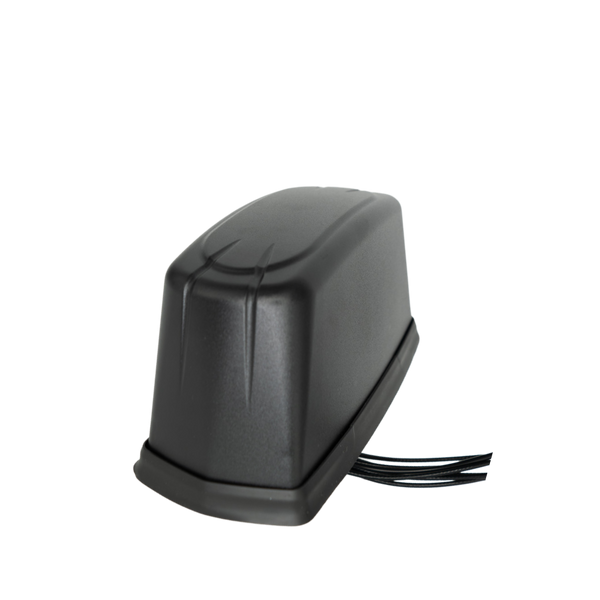

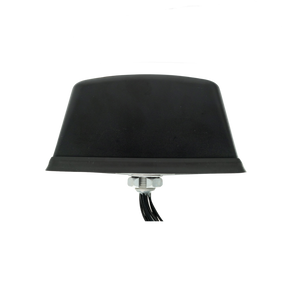

7-in-1 "Brick" V2 Antenna 4x 5G, 2x WiFi & 1x GPS/GNSS for Router R980, R1900, IBR1700
Cable Length
- This is a wideband 5G-FR1, WiFi-6E low profile antenna with GNSS 4x4 MiMo 5G + 2x2 MiMo WiFi + 1 GPS/GNSS

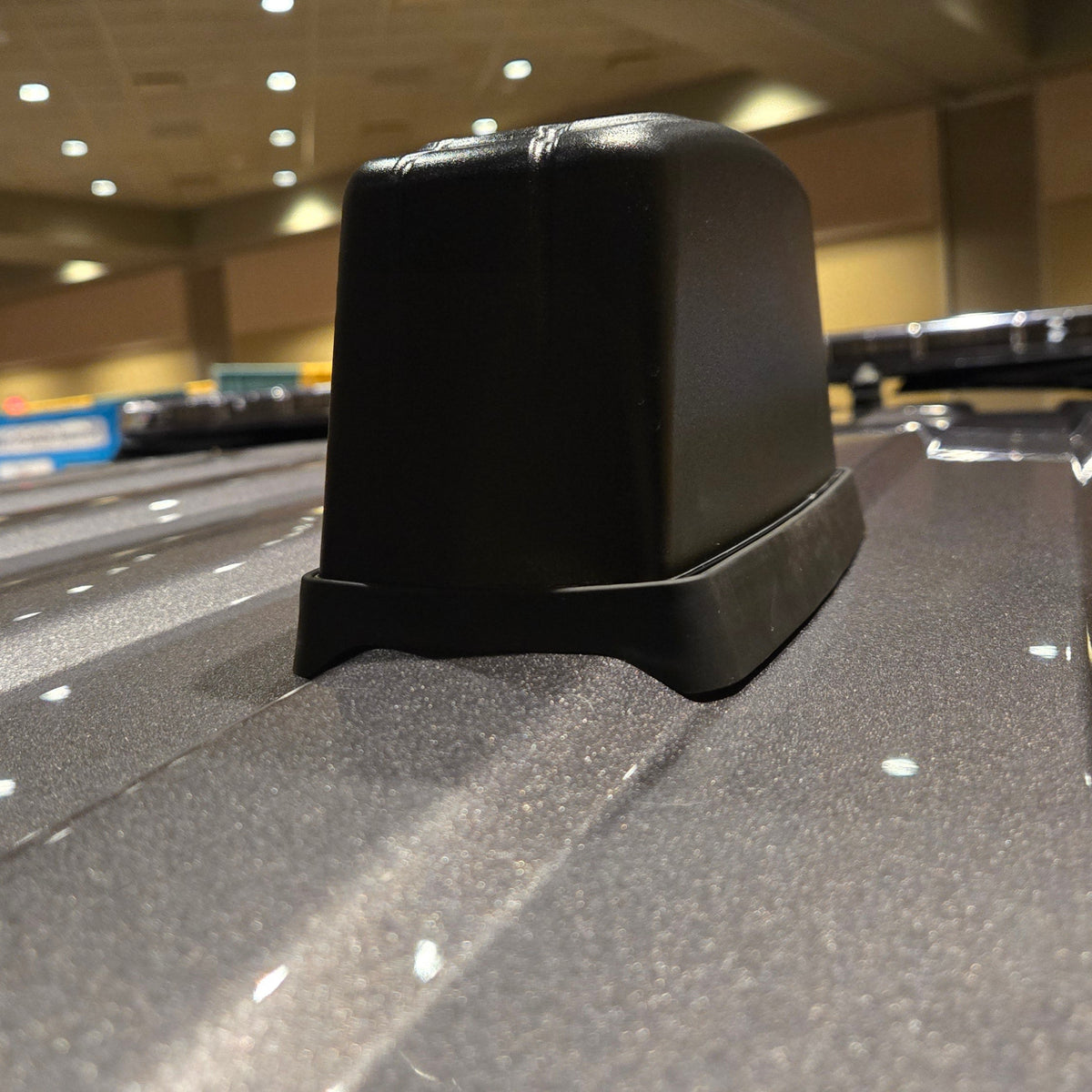

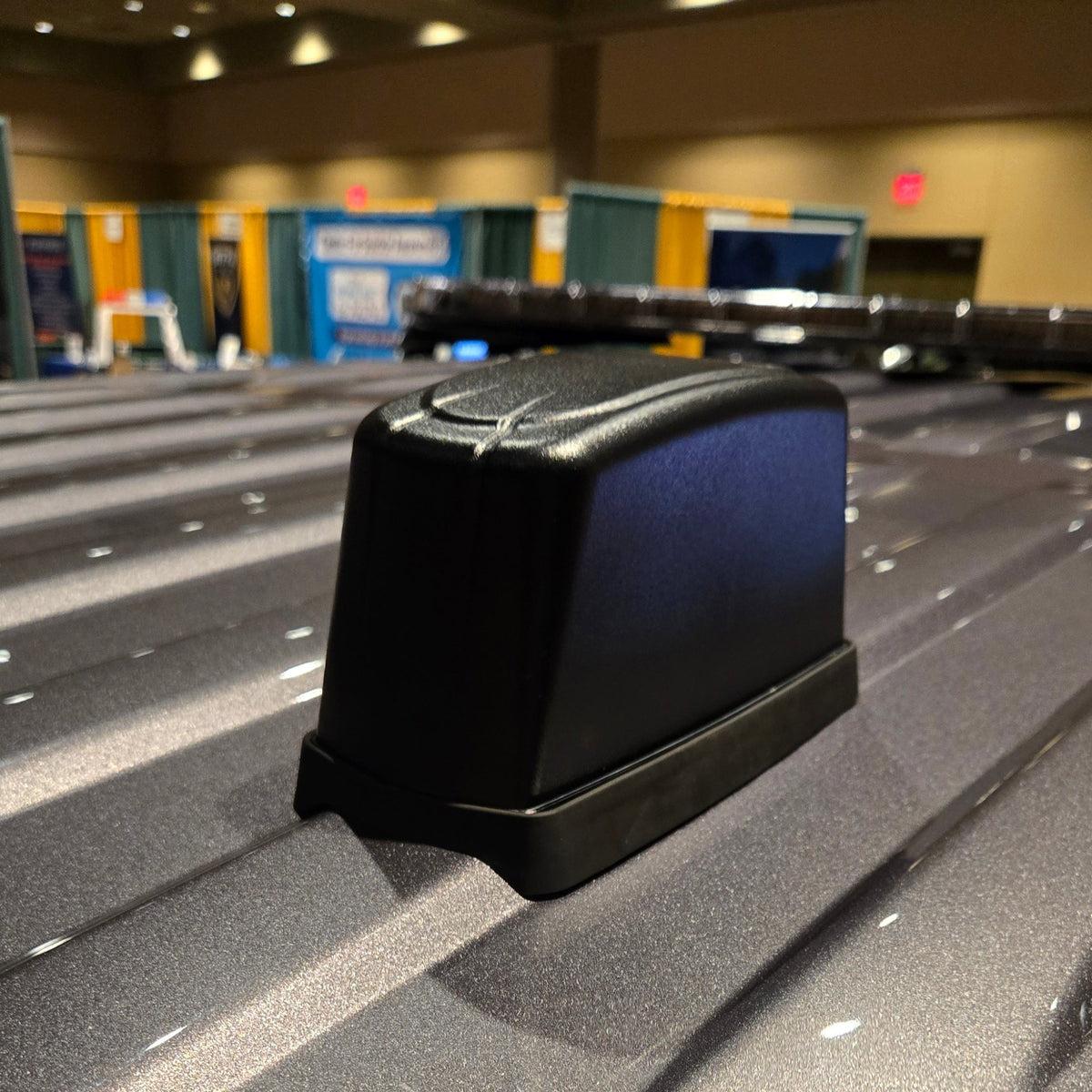

- IP67/IP69, attractive low profile radome measuring 8 in. long & 3.5 in. wide and only 3.78 inches tall this antenna is a perfect solution for transit & EMS applications
- Compatible with Ericsson/Cradlepoint Modem / Gateway / Router R980, R1900, IBR1700, IBR900, Semtech/Sierra Wireless XR60, Peplink BR1 Mini 5G, MAX-BR2, UBR Plus, & MB Series, Teltonika ATRM50, RUTM30, RUTM31, RUTM50, RUTM54, RUTM55 series Radios etc.
- This antenna is designed for cellular operation from 600-7125 MHz and meets all 5G specs, as well as 4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile
- USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
Technical Specifications
| SKU | R2BDM-G452W-2-S4S2R-B |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | RP-SMA Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz (Cell) |
| Working Frequency 2 | 1710-7125 MHz (Cell) |
| Working Frequency 3 | 2400-2500 MHz (WiFi) |
| Working Frequency 4 | 4900-7125 MHz (WiFi) |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS/Beidou |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 2.0 dBi |
| Gain 2 | 6.4 dBi |
| Gain 3 | 7.5 dBi |
| Gain 4 | 5.3 dBi |
| Gain 5 | 30 ± 20 dB (LNA Gain) |
| Ground Plane Required | No |
|---|---|
| Height/Length (inches) | 8.05 |
| Height/Length (mm) | 204.4 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | UV Stable, UL94 Radome |

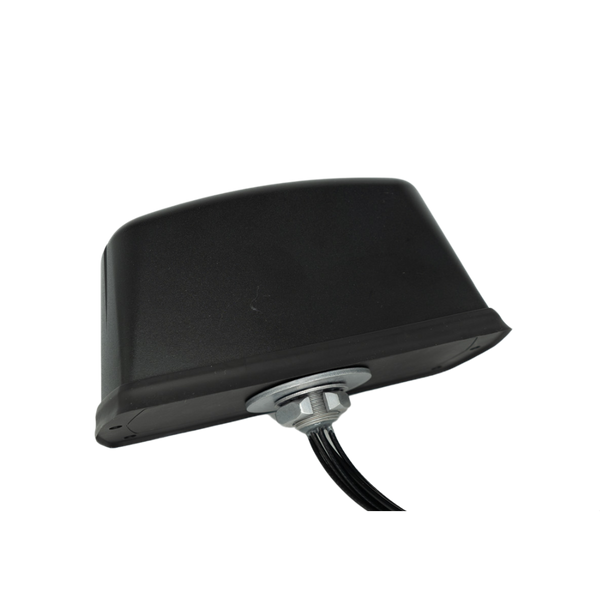

| Mount Style | Direct Mount |
| No Of Elements | 7 |

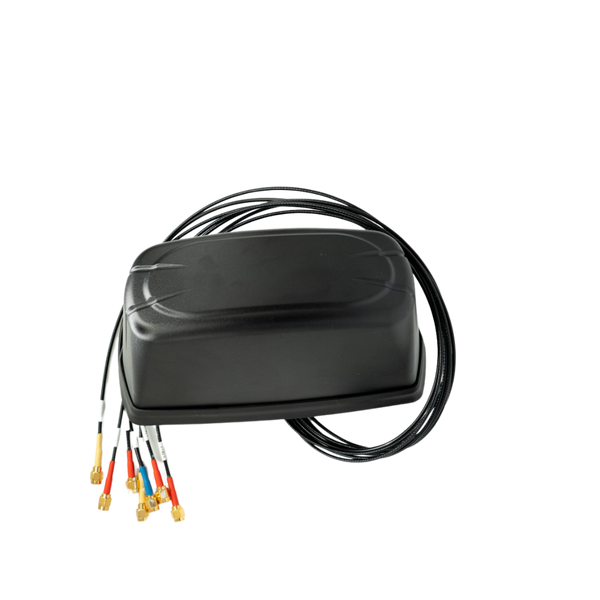

| Number of Cables | 7 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| Thickness/Diameter (inches) | 3.78 |
| Thickness/Diameter (mm) | 96.01 |
| VSWR: < X: 1 | <3:1 (cell)/<2.5:1 (WiFi) |
| Width (inches) | 3.57 |
| Width (mm) | 90.6 |
