RY900127SNF19

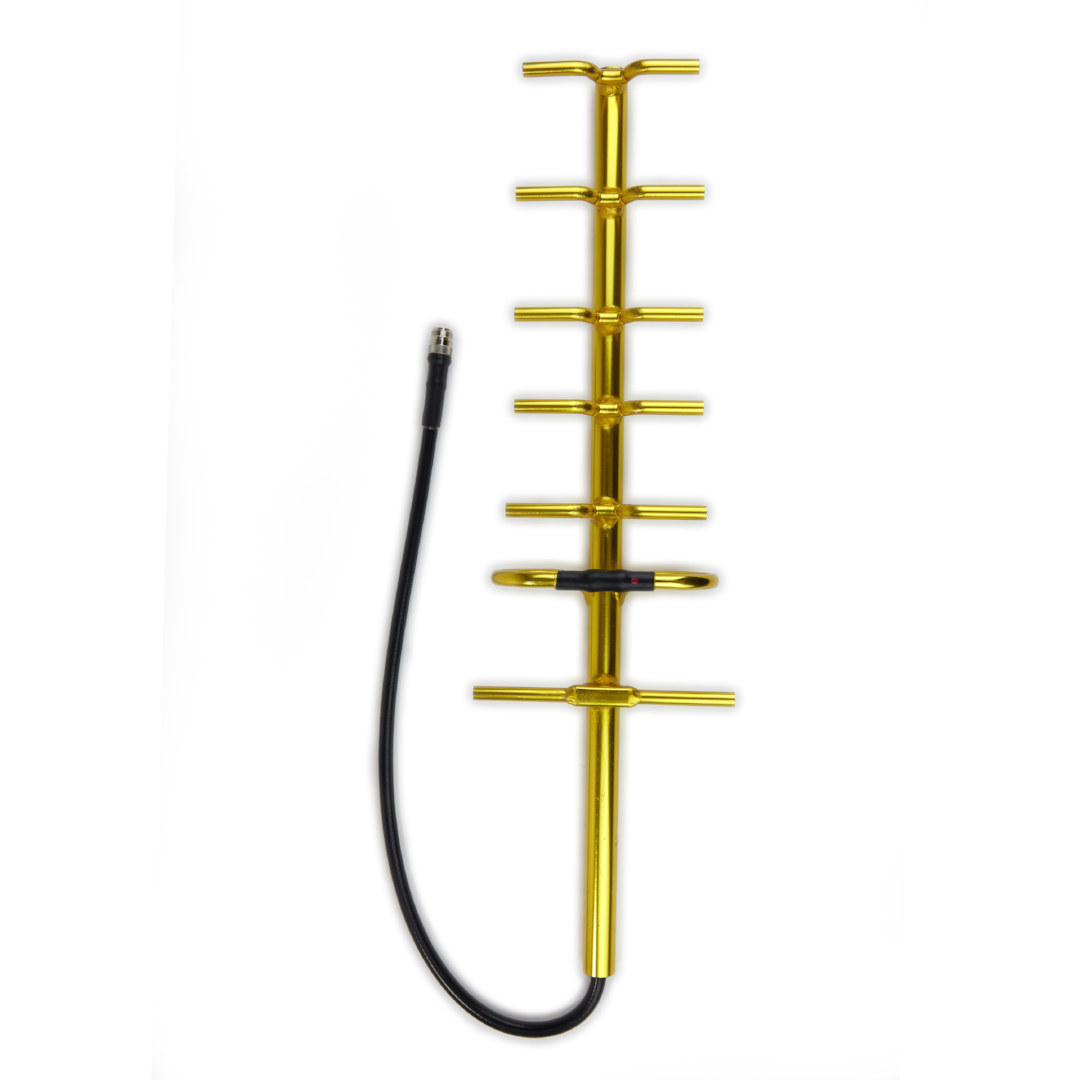

7 Element Yagi Antenna for Digi International 900 MHz Gateways

  • Unit is out of stock
List Price: Regular price $235.00
7 Element Yagi Antenna for Digi International 900 MHz Gateways
RY900127SNF19

7 Element Yagi Antenna for Digi International 900 MHz Gateways

  • Unit is out of stock
List Price: Regular price $235.00

The RFMAX RY-900-12-7-SNF-19 is a heavy duty, Gold Anodized, 900 MHz Kathrein - Scala equivalent Yagi Antenna operating within the 880-960 MHz ISM frequency range. This TY900 antenna model is the RFMAX "premium" offering, with a full IP67 rating to withstand severe outdoor weather conditions. This is suitable for 900 MHz spread spectrum applications, SCADA system radios that operate in the unlicensed 896-940 MHz frequency range and for all applications working in 900 ISM Band. This unit features 360-degree welds around each of the seven elements, no gamma match to ice up, corrode or detune, and has gold anodizing added for overall corrosion resistance. This design provides performance and durability equivalent to PCTel, Laird, Kathrein, Larsen, Scala, Wilson, L-Com, etc.

  1. Frequency: 880-960 MHz
  2. No. of Elements: 7
  3. Dimension (LxH): 24 x 6.6 inches
  4. Peak Gain: 12.2 dBi
  5. Max Input Power: 200 watts
  6. Wind Survival Rating: 136 MPH
  7. Cast Aluminum Mounting Kit Included
  8. 19 Inch Cable & N-Female Connector
  9. 5 Year Factory Warranty!

Compatible with Digi Modems ConnectPort® X2, XBee® SX RF, XBee-PRO® 900HP RF, and XTend® 900MHz RF

Description BlueArrow Created with Sketch.

The RFMAX RY-900-12-7-SNF-19 is a heavy duty, Gold Anodized, 900 MHz Kathrein - Scala equivalent Yagi Antenna operating within the 880-960 MHz ISM frequency range. This TY900 antenna model is the RFMAX "premium" offering, with a full IP67 rating to withstand severe outdoor weather conditions. This is suitable for 900 MHz spread spectrum applications, SCADA system radios that operate in the unlicensed 896-940 MHz frequency range and for all applaications working in 900 ISM Band. This unit features 360-degree welds around each of the seven elements, no gamma match to ice up, corrode or detune, and has gold anodizing added for overall corrosion resistance. This design provides performance and durability equivalent to PCTel, Laird, Kathrein, Larsen, Scala, Wilson, L-Com, etc.

  1. Frequency: 880-960 MHz
  2. No. of Elements: 7
  3. Dimension (LxH): 24 x 6.6 inches
  4. Peak Gain: 12.2 dBi
  5. Max Input Power: 200 watts
  6. Wind Survival Rating: 136 MPH
  7. Cast Aluminum Mounting Kit Included
  8. 19 Inch Cable & N-Female Connector
  9. 5 Year Factory Warranty!

Compatible with Digi Modems ConnectPort® X2, XBee® SX RF, XBee-PRO® 900HP RF, and XTend® 900MHz RF

Specifications BlueArrow Created with Sketch.

Digi ConnectPort® X2 X2-HMU-EM-A, X2-HMU-EM-B
Digi XBee-PRO® 900HP RF Modems XM-M92-2P-UA, XM-M92-4P-UA, XM-M92-UP-UA, XM-P91-UP-UA
Digi XBee® SX RF Modems XM-X9-3P-U, XM-X9-5P-U
XTend® 900MHz RF Modems XTP9B-PKI-R, XTP9B-PKI-RA, XTP9B-PKI-RA-NA, XTP9B-PKC-UA, XTP9B-PKI-RA-NL
