R8655-LPF-SSF

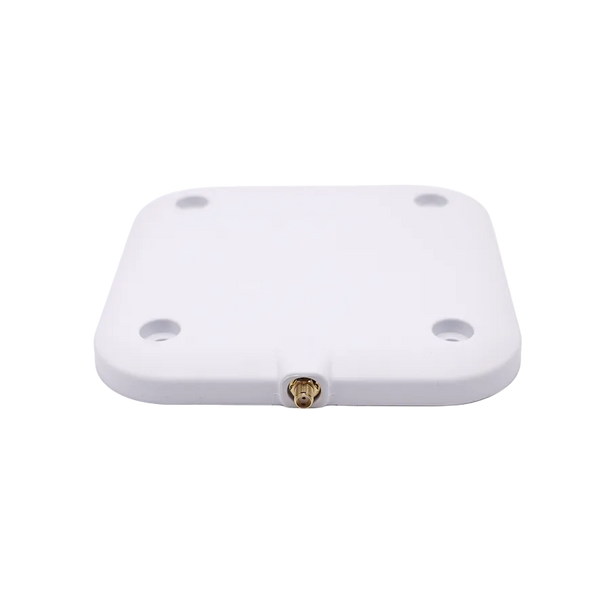

6x6 Inch SlimLine Circular Polarized UHF RFID Antenna
Configuration
- Circularly Polarized outdoor RFID Antenna measures in at 6x6 inches
- This unit operates at 5.5 dBic gain, covers 105 x 105 degrees beamwidth, and is THE LOWEST PROFILE antenna for passive UHF RFID applications
- Available in FCC (902-928 MHz) & ETSI (865-868 MHz)
- With a 1.5 ft. wider read range than most other antennas of similar size in the market

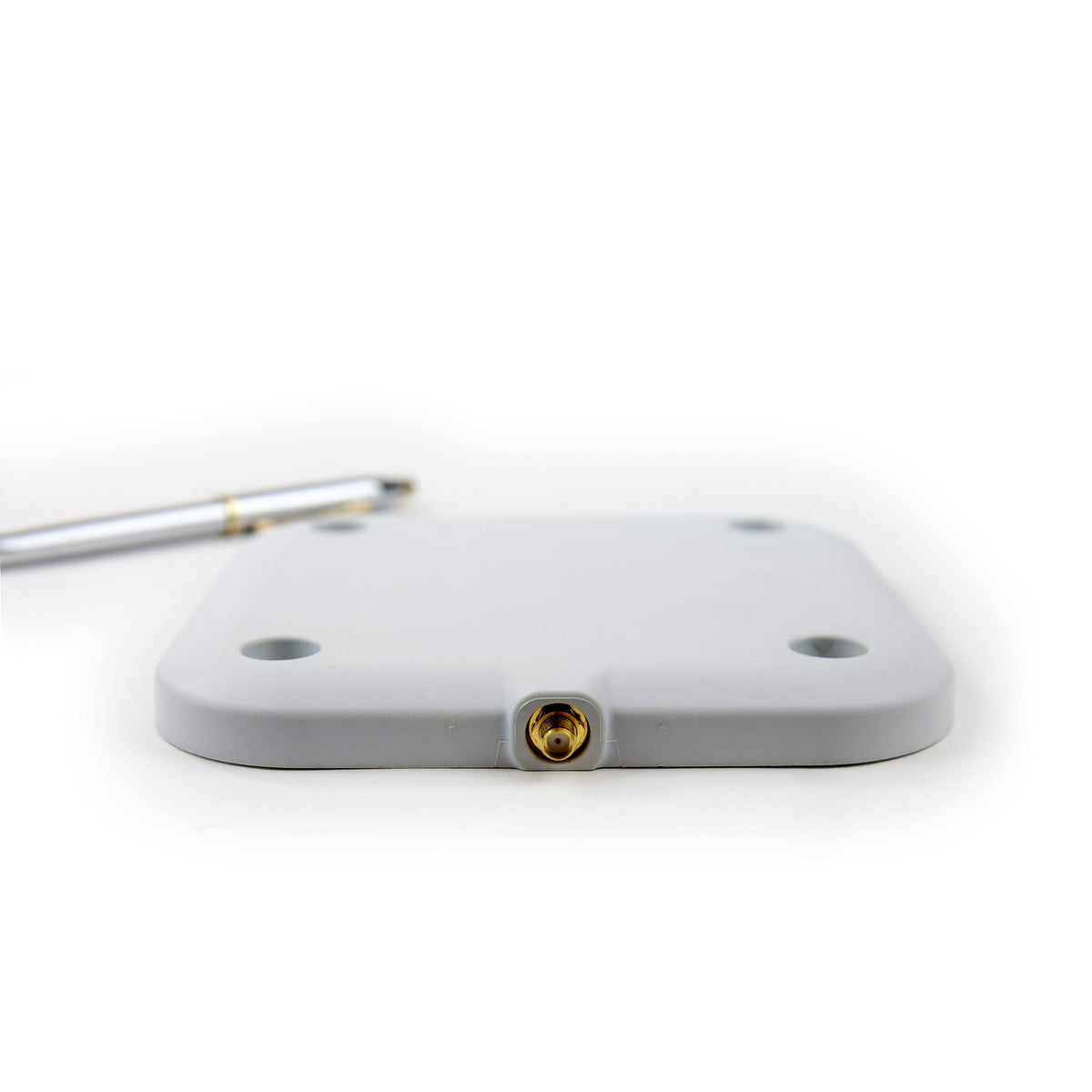

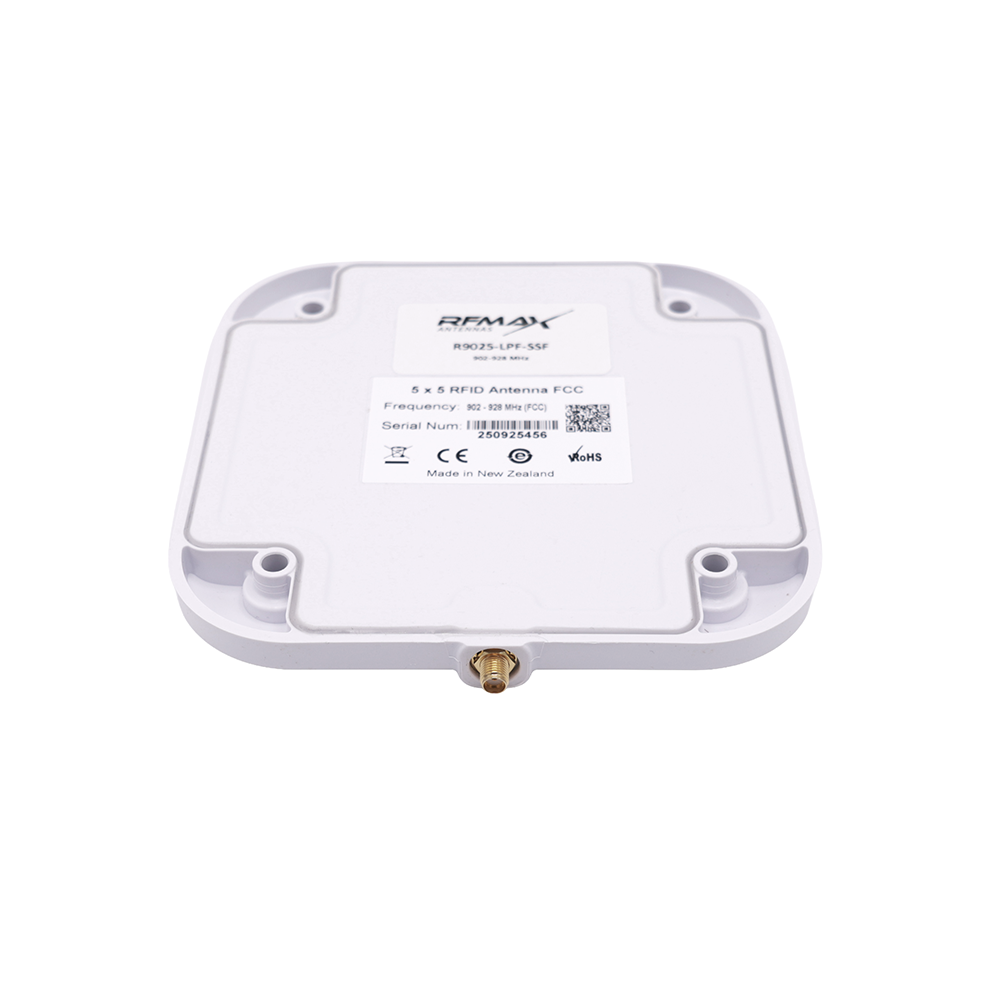

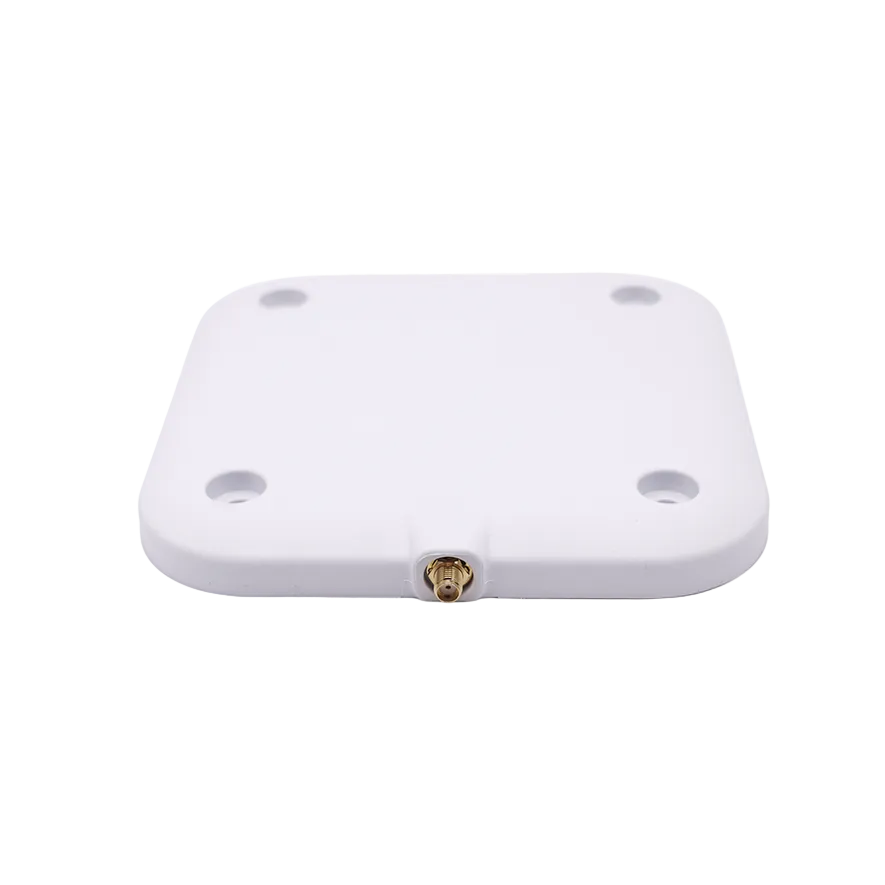

- The unit carries a full IP67 rating, thus it is well suited for outdoor installations, and comes with a side-entry, standard SMA-Female Connector.

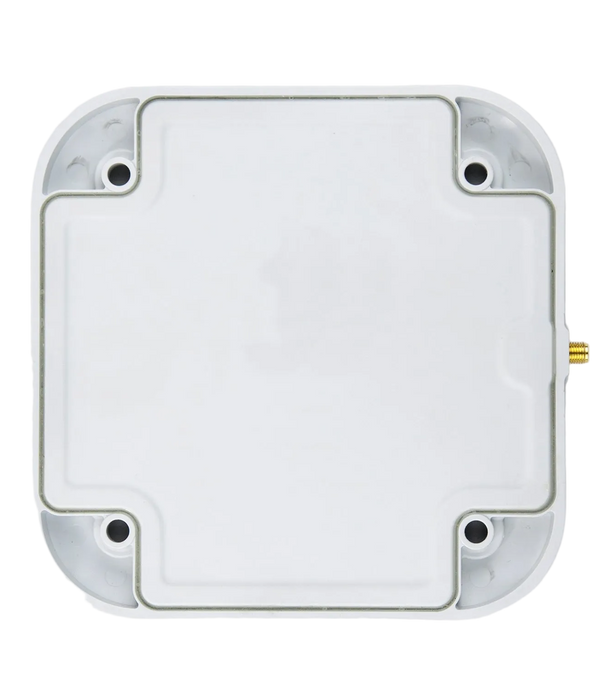

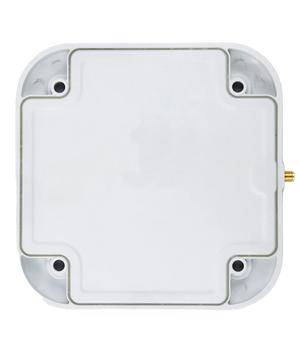

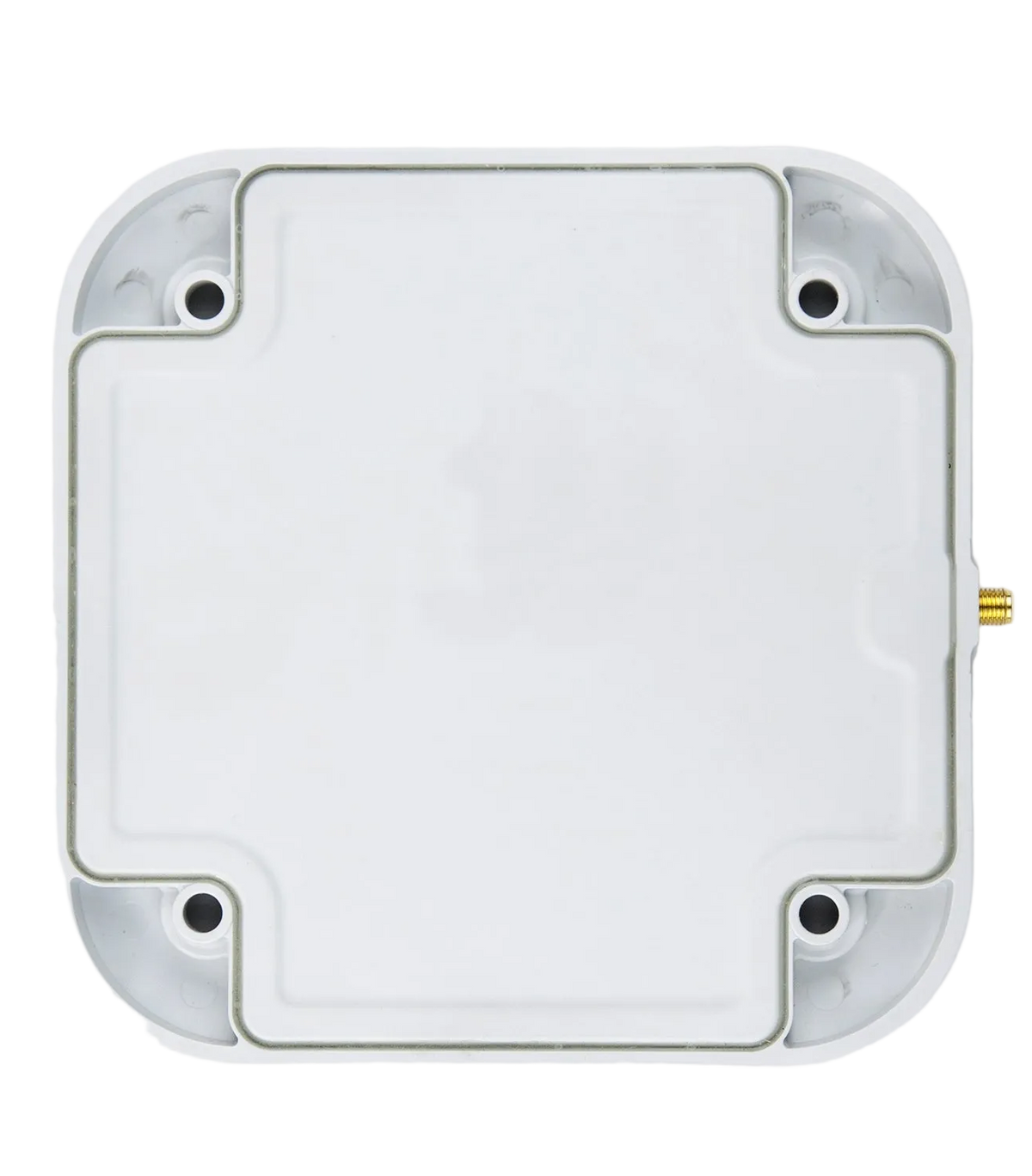

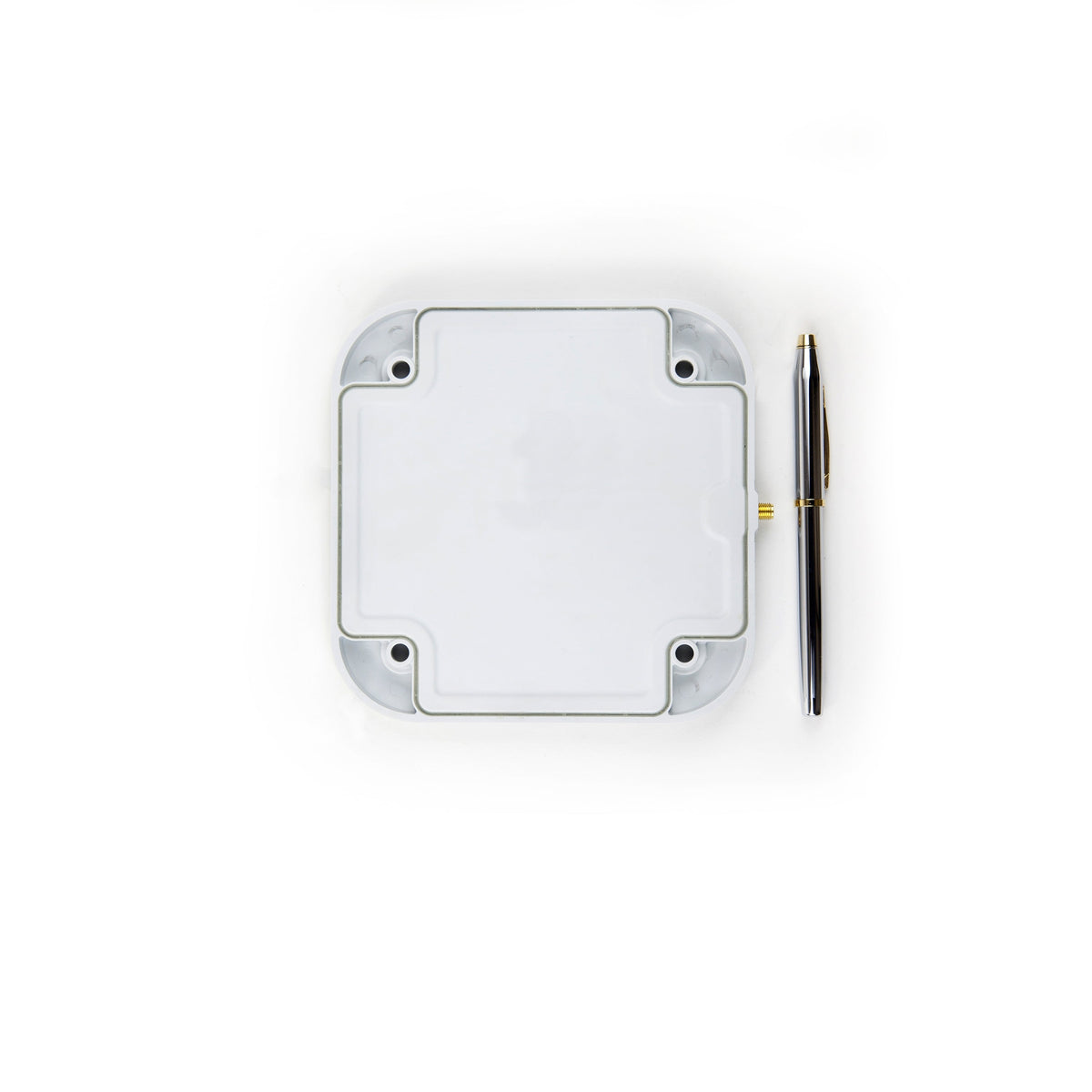

- There are mounting holes drilled in each of the 4 corners
- Its pleasing aesthetics and timeless design blends beautifully with most interiors, makes it very suitable for customer facing environments

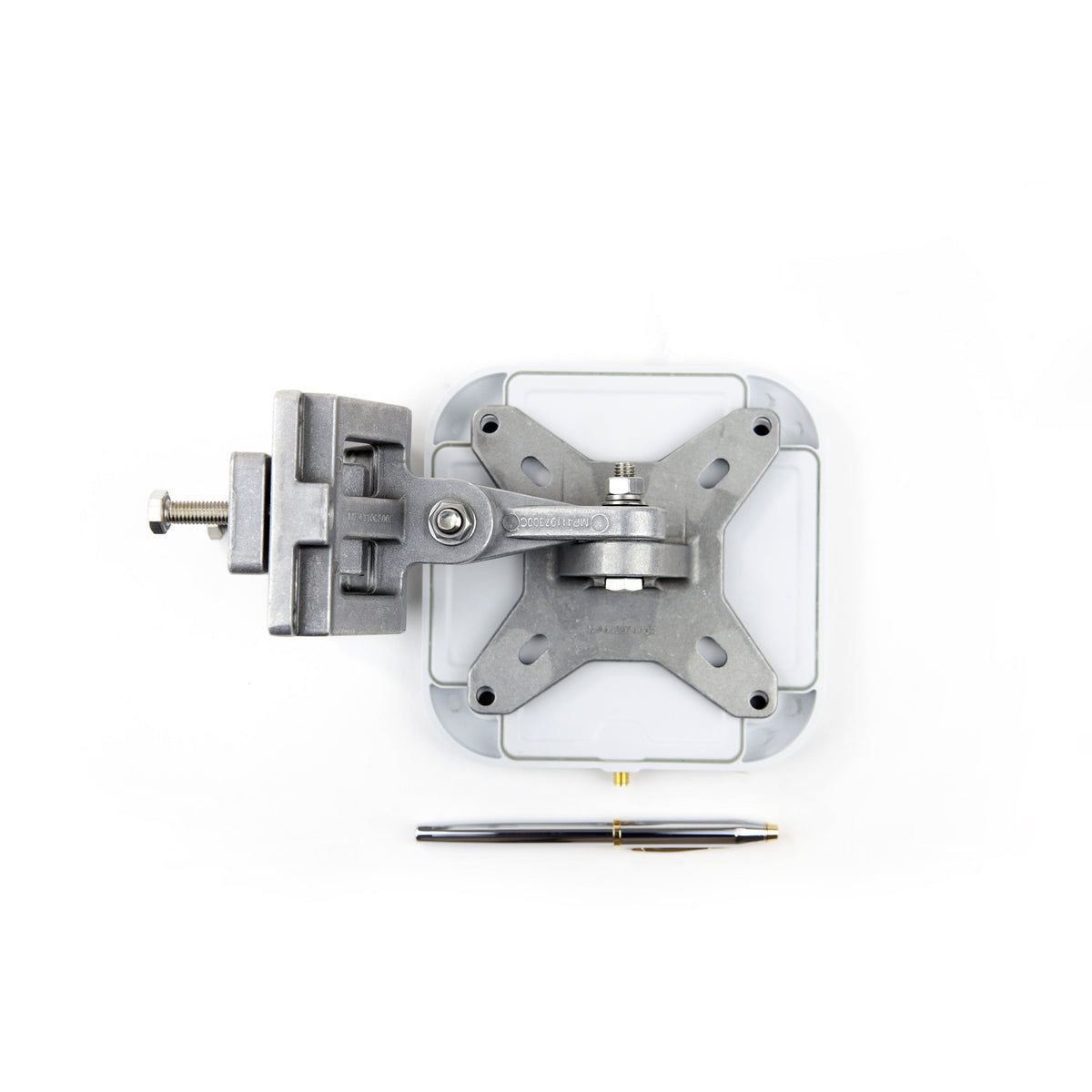

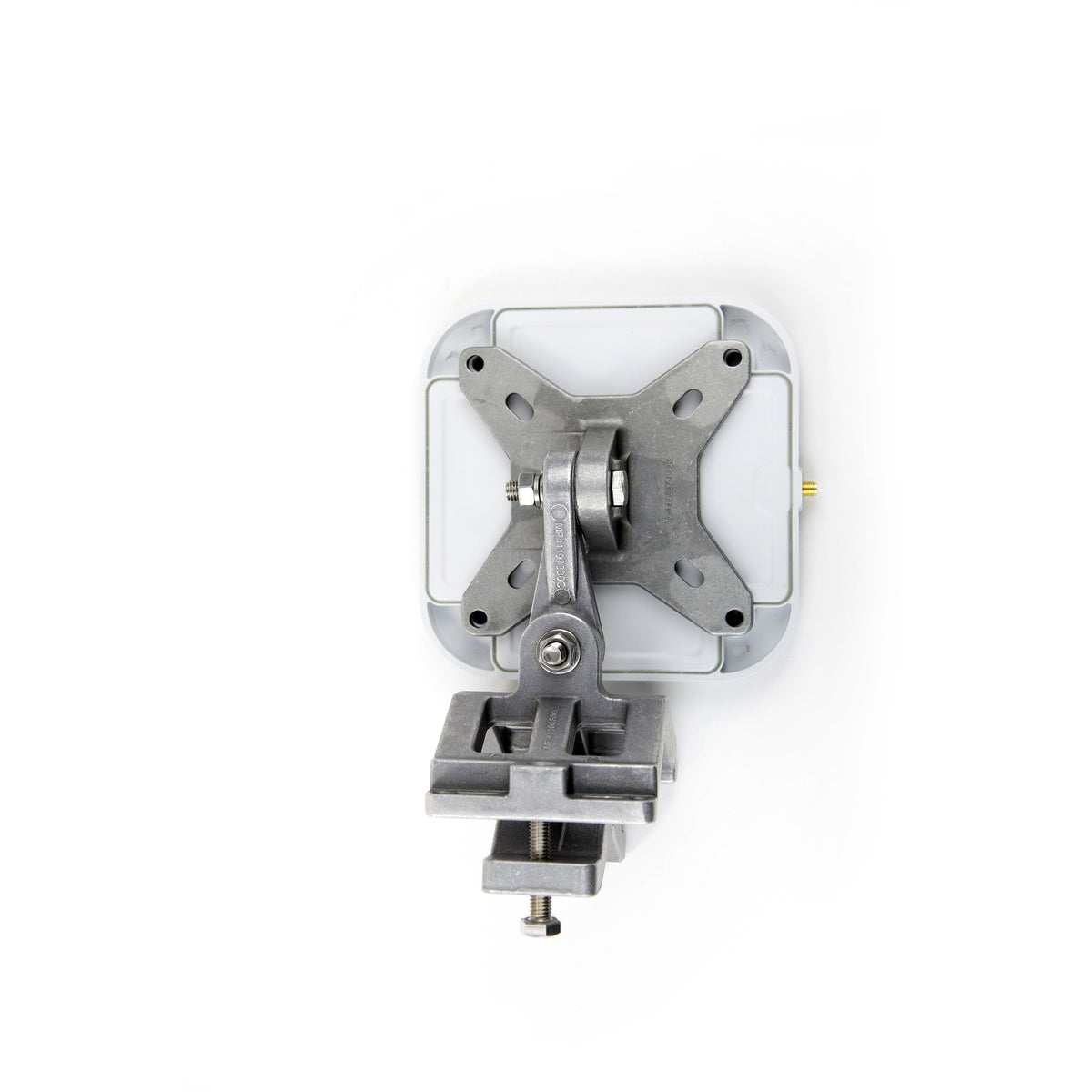

- The appropriate mounting solution for this antenna is RFMAX part # HDMNT-100MM
- COO: New Zealand
Technical Specifications
| SKU | R8655-LPF-SSF |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | SMA-Female |
| Antenna Category | RFID (865-928 MHz) |
| Gain | 5.5 dBiC |
| Height/Length (inches) | 5.9 |
| Height/Length (mm) | 150 |
| IP Rating | IP68 |
| Material | UV-Resistant ABS |
| Mount Style | Flush mount |
|---|---|
| Operating Temp (celsius) | -30° to +65°C |
| Polarity | Right Hand Circular |
| Thickness/Diameter (inches) | 0.55 |
| Thickness/Diameter (mm) | 14 |
| Weight (lbs) | 0.55 lbs |
| Width (inches) | 5.9 |
| Width (mm) | 150 |
