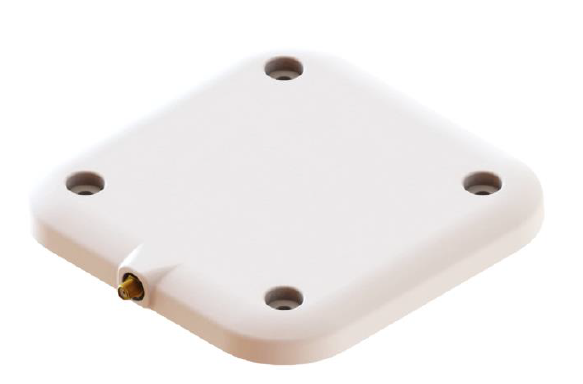

R9025-MR-SSF
6x6 Inch RFID Antenna with Mid-Range Reads or Short Range Reads FCC (902-928 MHz)
Configuration
- This antenna is designed to limit Stray Reads outside intended Zones
- Mid Range Antenna reads upto 4-5 Feet
- Short Range Antenna reads upto 10-12 centimeters or 4-5 inches
- SMA Female connector on the size of the antenna
- Mounting bracket (sold seperately) HDMNT-100MM - Click Here
Technical Specifications
| SKU | R9025-MR-SSF |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | SMA-Female |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Gain | 5.5 dBiC |
| Height/Length (inches) | 5.9 |
| Height/Length (mm) | 150 |
|---|---|
| Thickness/Diameter (inches) | 0.55 |
| Thickness/Diameter (mm) | 14 |
| VSWR: < X: 1 | 1.8:1 |
| Weight (lbs) | 0.70 lbs |
| Width (inches) | 5.9 |
| Width (mm) | 150 |
