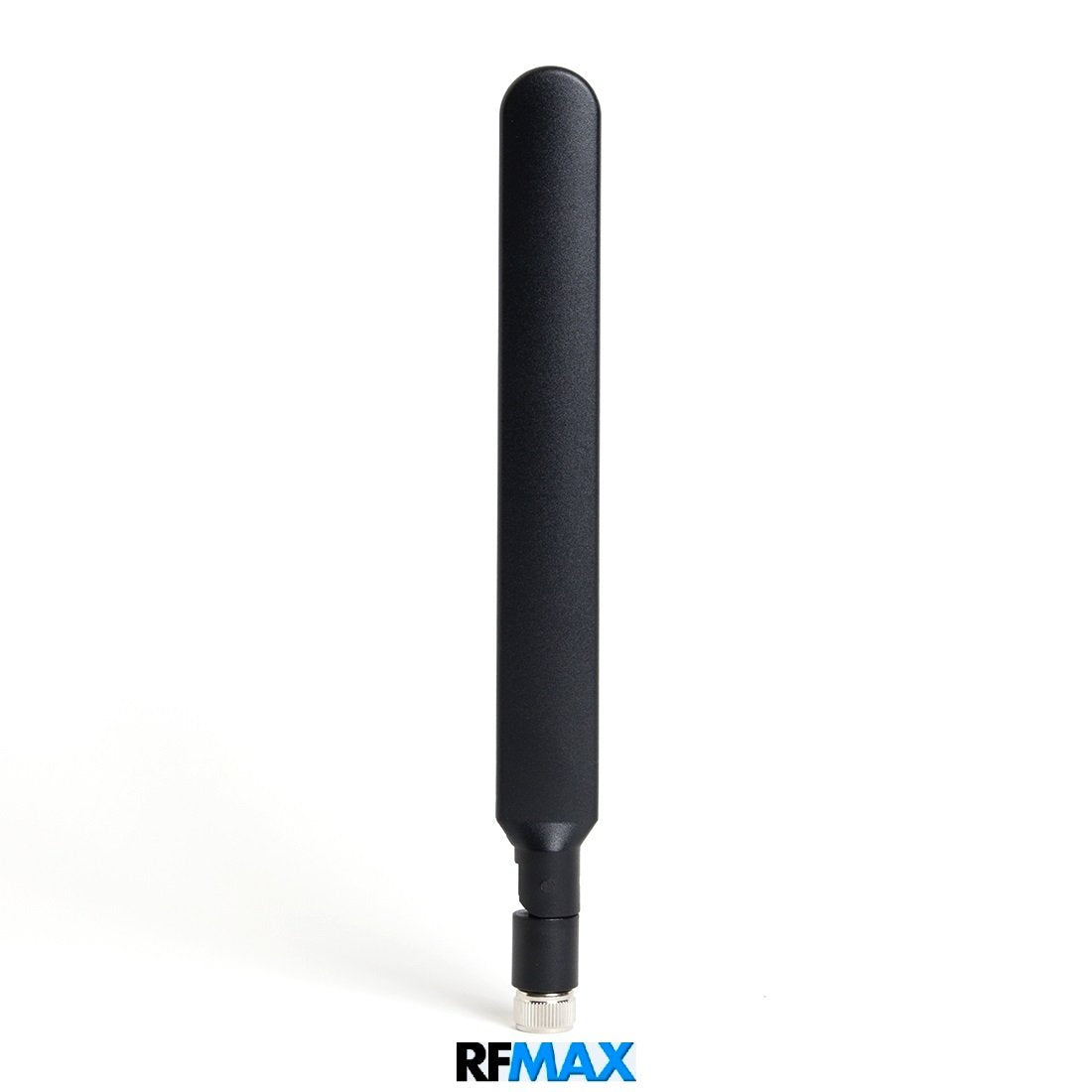

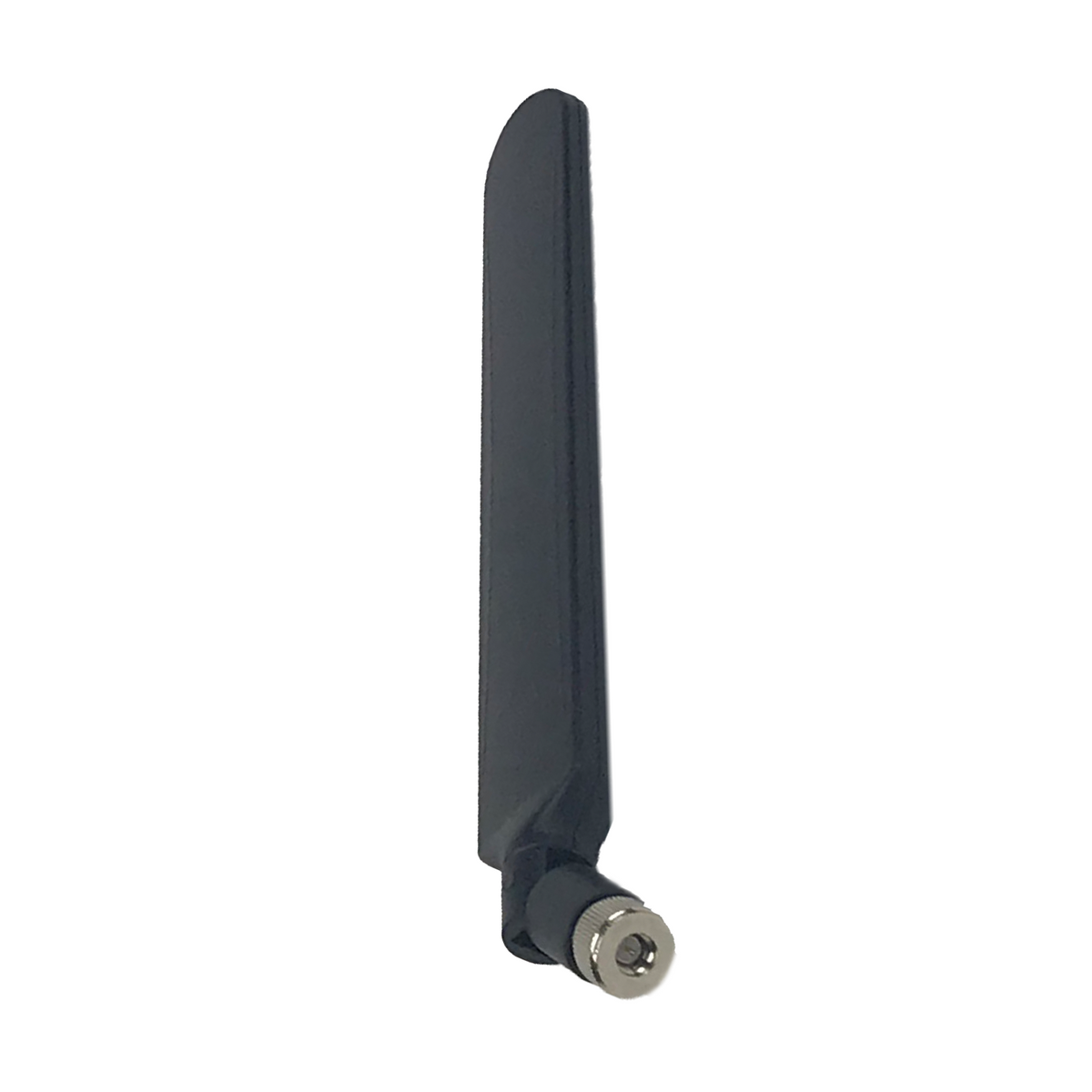

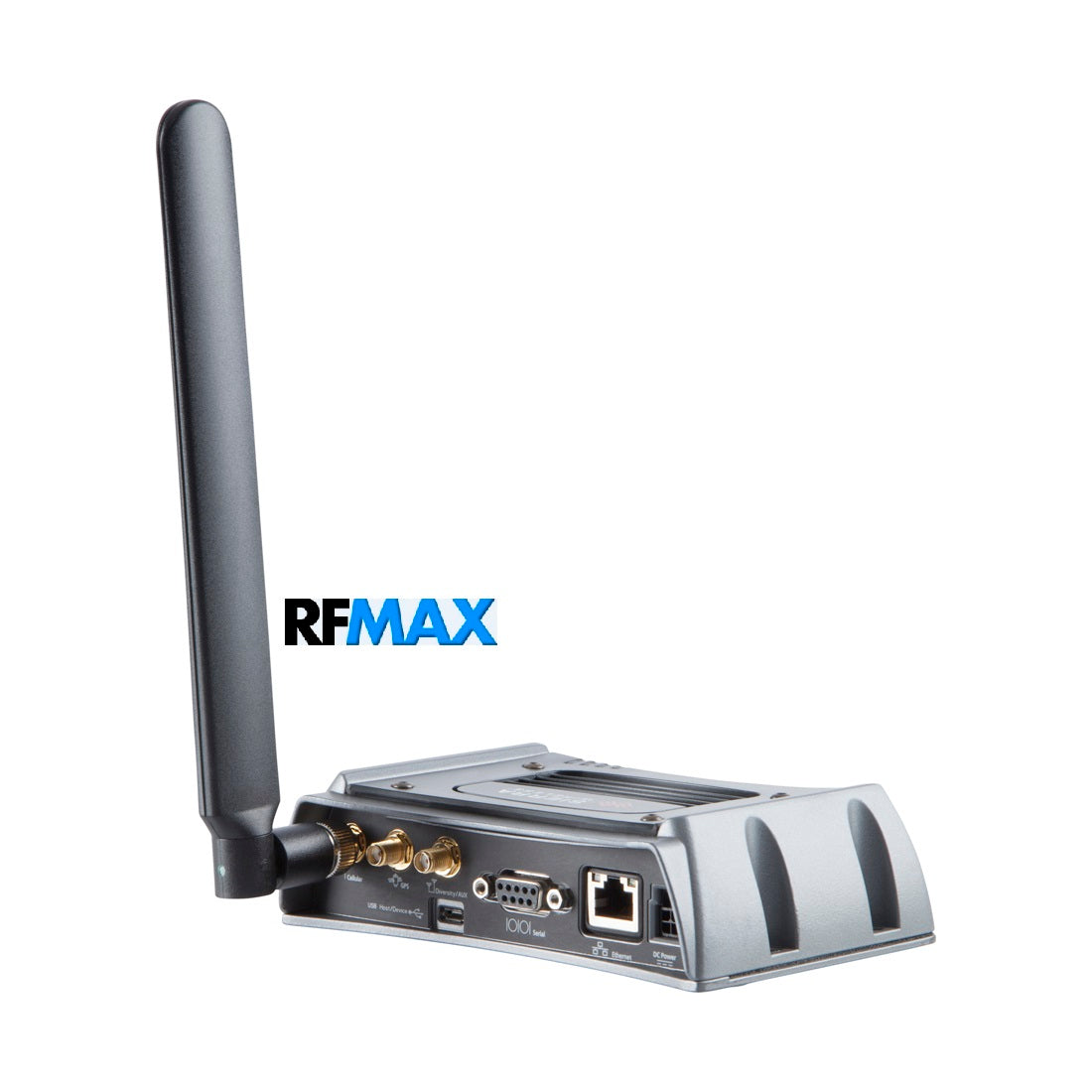

RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS
- High-performance, high-efficiency dipole antenna for 4G/LTE/5G with SMA connector
- The Best cellular antenna for OEM's looking to pass any major carrier certification - including AT&T, Verison, Sprint, T-Mobile, Rogers, Bell & Telus
- Designed for frequencies from 617-6000 MHz 4G/LTE /5G, offers 1.2 - 5.5 dBi gain with efficiencies of 45-70% for maximizing cellular performance on your device
Technical Specifications
| SKU | RDA-4G/5G-1-SSM |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector Type | Connector - Bottom |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1430-3500 MHz |
| Working Frequency 3 | 3500-6000 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | 1.2 dBi (45% efficiency) |
| Gain 2 | 2.5 dBi (65% efficiency) |
| Gain 3 | 5.5 dBi (70 % efficiency) |
| Ground Plane Required | No |
| Height/Length (inches) | 8.8 |
| Height/Length (mm) | 229 |
|---|---|

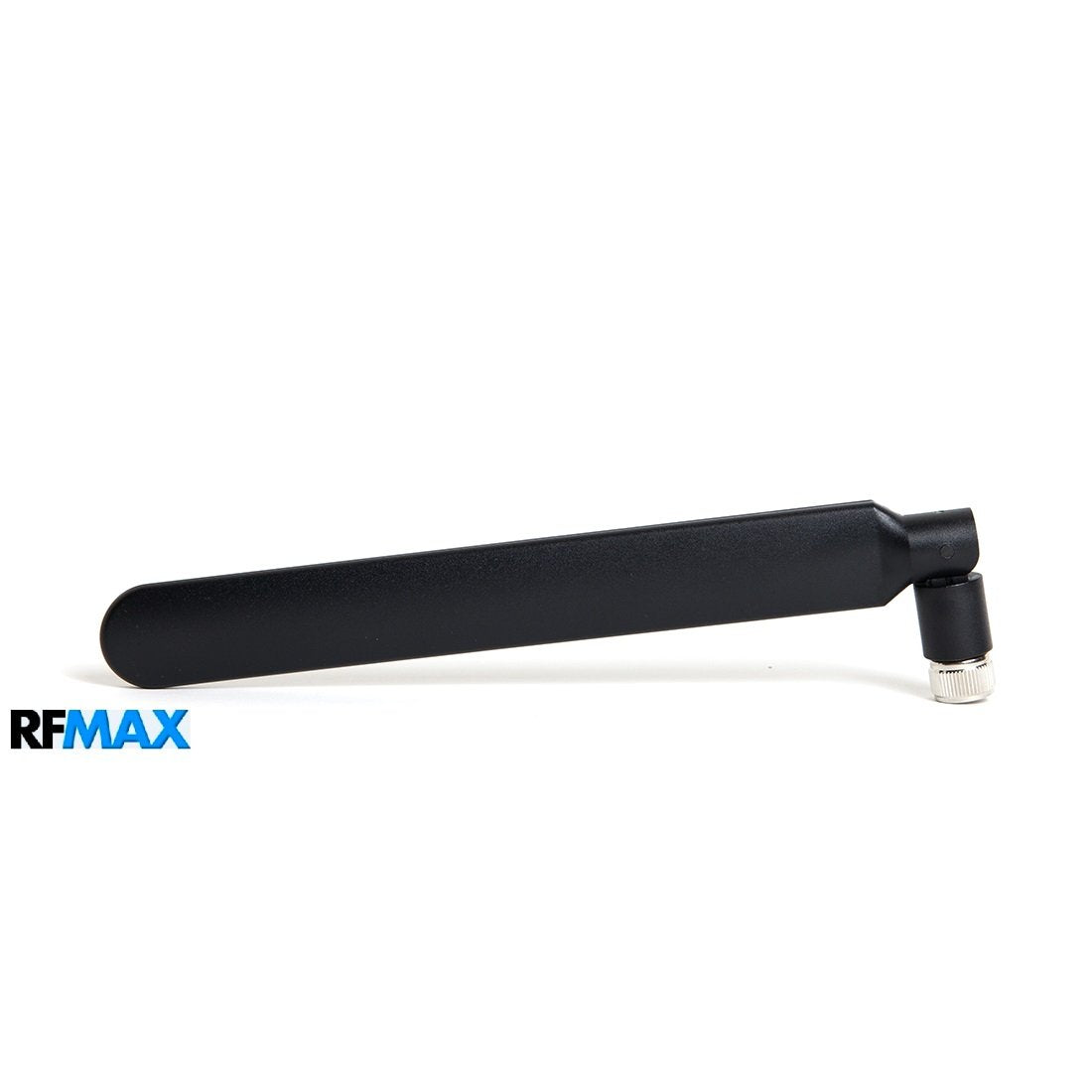

| Includes | Articulating 90 degreee knuckle |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP65 |
| Material | ABS/PC |
| Max Input Power (W) | 3 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UL94-V0 |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 0.43 |
| Thickness/Diameter (mm) | 11 |
| Weight (grams) | 50 |
| Weight (lbs) | 0.07 lbs |
| Width (inches) | 1.2 |
| Width (mm) | 30.5 |
