RBMM-G55WW-17-SSSRR-B

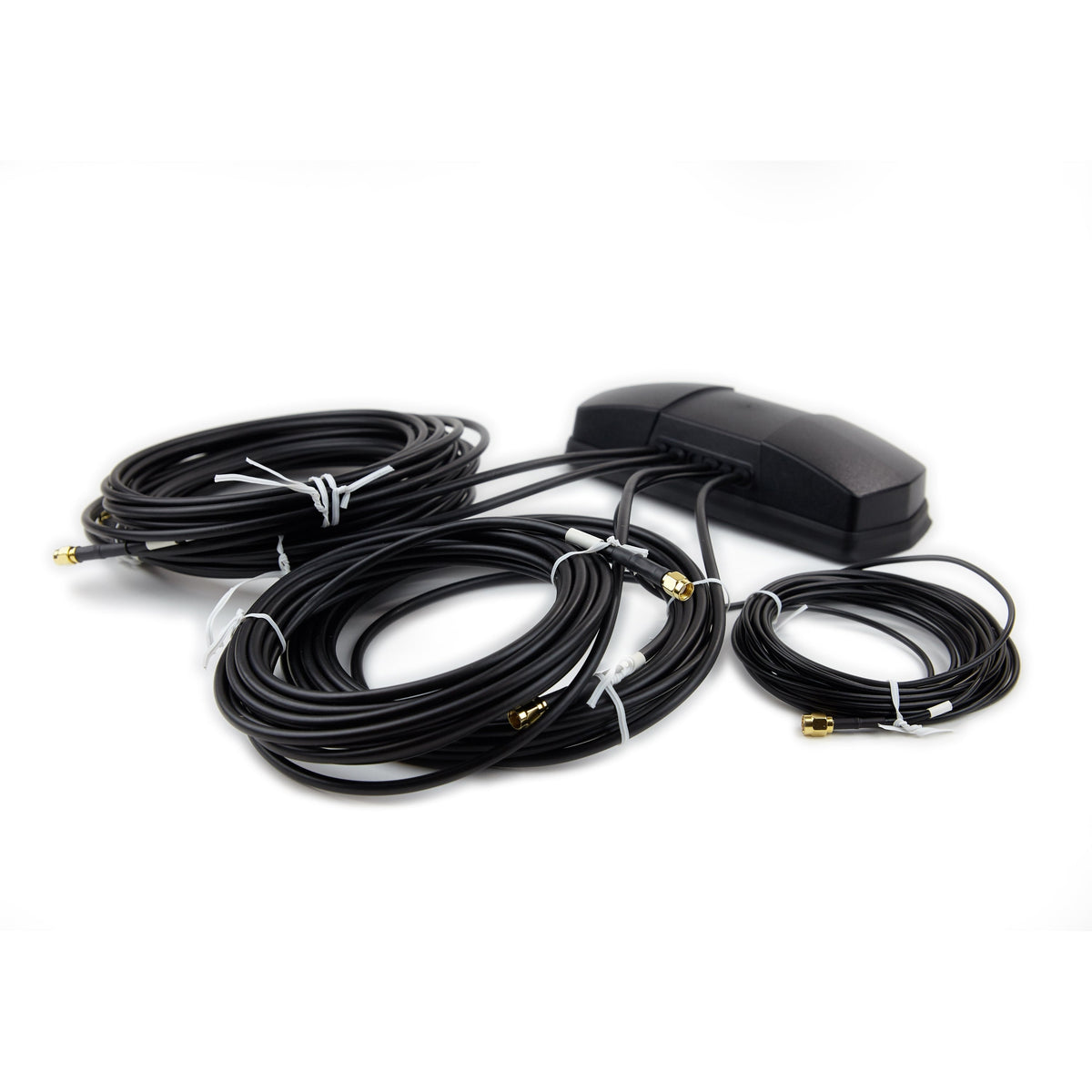

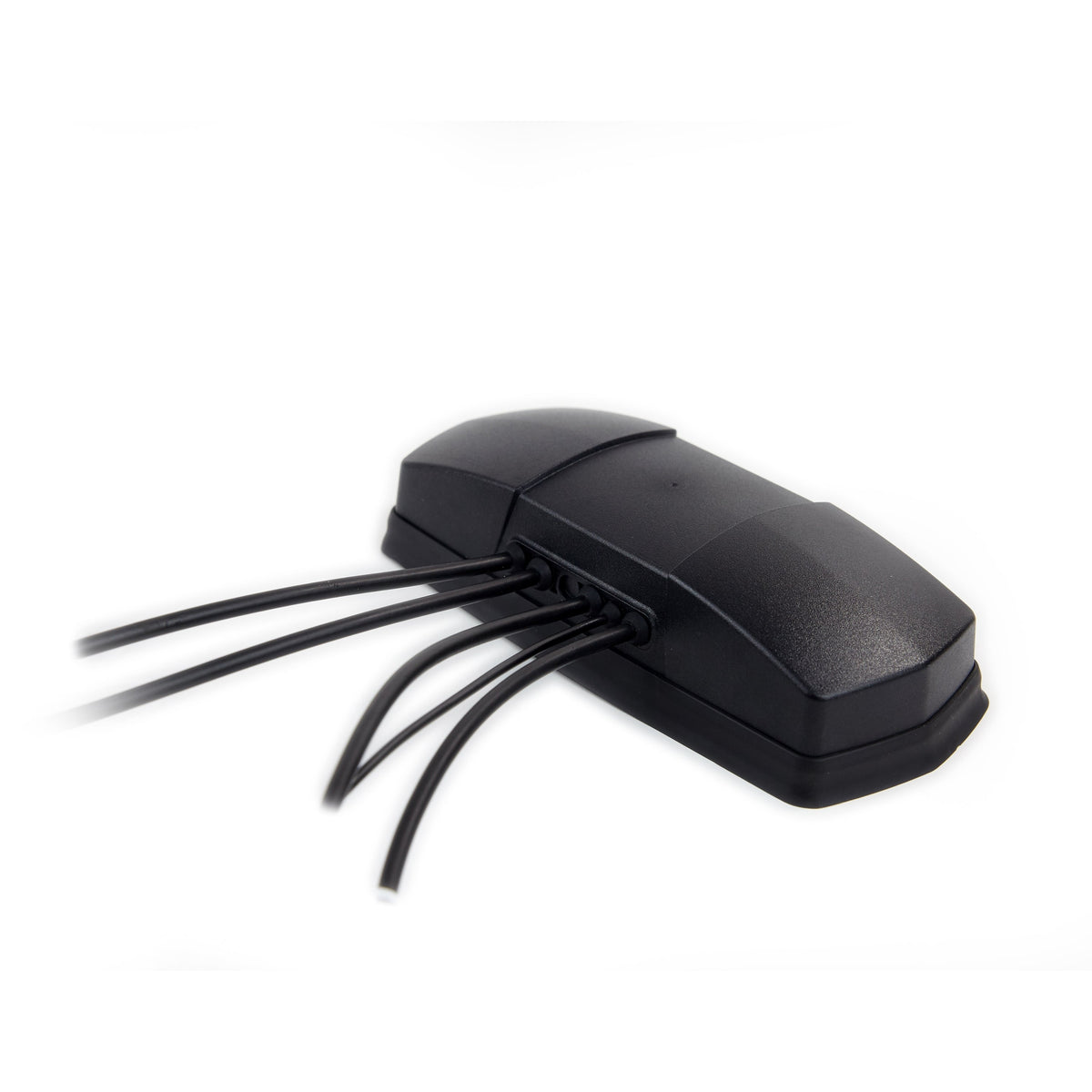

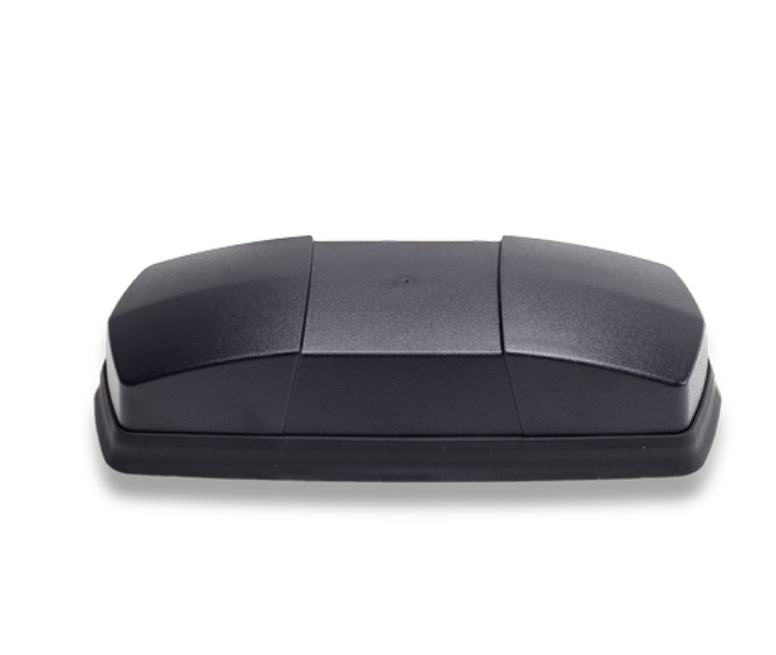

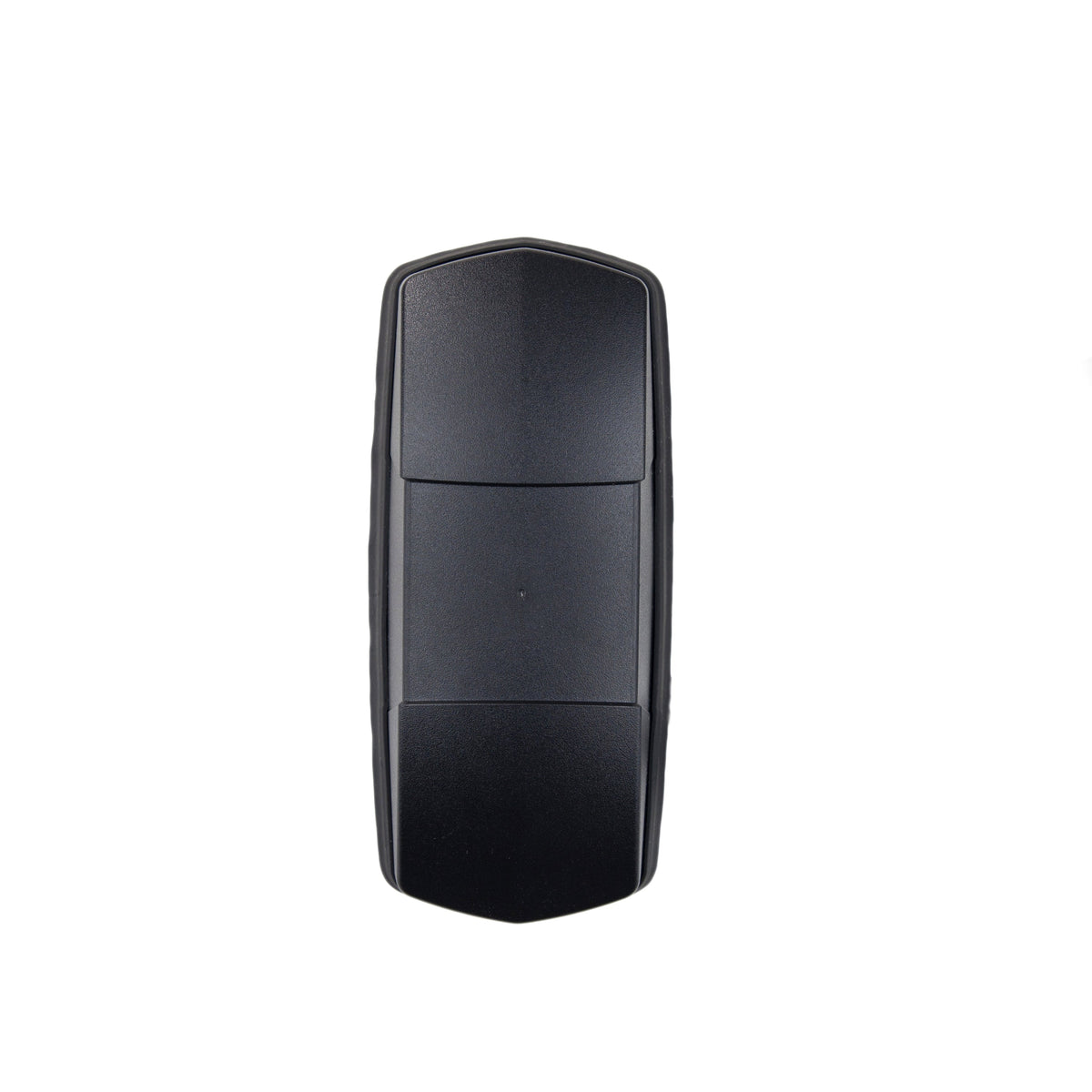

5 in 1 Multi-Band "Brick" Antenna for In-Vehicle Cellular Routers: Cradlepoint IBR900, IBR1100, etc. with Magnetic Mount and 17 ft. Cables
- A compact, ultra-rugged Mag-mount antenna designed
- Optimized for: Cradlepoint IBR900, IBR1100 & S700. R920 Sierra Wireless AirLink RV55, Getac VR-X20 DVR, PepLink, & Multi-Tech modems requiring GPS, Cell & WiFi
- Fequency: 2x Cell 5G/4G-LTE (617-6000 Mhz) (SMA-M) + 2x WiFi (RP SMA-M) + 1x GNSS (SMA-M)
- The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches
- Meets all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from cellular carriers like AT&T, Verizon, Sprint & T-Mobile
- Perfect choice for M2M appliactions like NEMA enclosures, ATM machines, video surveillance, etc
- Compatible with MiMo 4G/LTE or 5G cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc
Technical Specifications
| SKU | RBMM-G55WW-17-SSSRR-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 204 |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| Directional or Omni | Omnidirectional |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Ground Plane Required | No |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | UV Stable, UL94 Radome |
|---|---|
| Mount Style | Magnetic Mount |
| No Of Elements | 5 |
| Number of Cables | 5 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| VSWR: < X: 1 | <2:1 |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
