R2WA-GWWWW-10-SRRRR

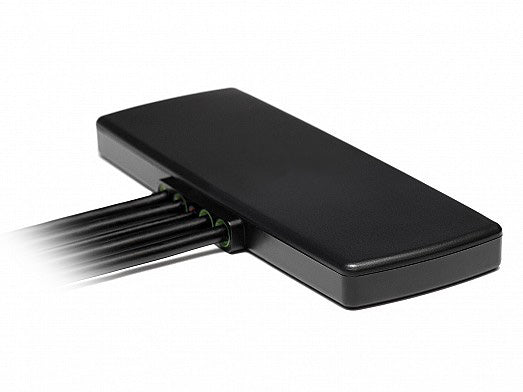

5 in 1 Covert/Window shield/Dashboard "Wedge" Antenna For Axon Fleet 3 Fleet Hub Device
- Enhance your AXON Fleet 3 in-car video system
- A rugged 5 in 1 covert antenna engineered for Public Safety fleets
- This ultra-low-profile solution integrates WiFi 6/6E MIMO, GPS/GNSS, and high-efficiency multi-band performance
- Ensures reliable video offload, real-time connectivity, and precise location tracking
- Designed with IP67/IP69 durability, adhesive mounting, and ground-plane-independent operation
- It delivers mission-critical performance for police, fire, EMS, and municipal fleet deployments using AXON Fleet 3 technology
Technical Specifications
| SKU | R2WA-GWWWW-10-SRRRR |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 120 |
| Color | Black |
| Connector 1 | RP-SMA Male |
| Connector 2 | RP-SMA Male |
| Connector 3 | RP SMA-Male |
| Directional or Omni | Omni Directional |
| Working Frequency | 2410-2490 MHz |
| Working Frequency 2 | 4920-5925 MHz |
| Working Frequency 3 | 5925-7125 MHz |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 2.4 dBi |
| Gain 2 | 3.9 dBi |
| Gain 3 | 4.1 dBi |
| Ground Plane Required | No |
|---|---|
| Height/Length (inches) | 6.13 |
| Height/Length (mm) | 155.6 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | ASA UV Stable |
| Max Input Power (W) | 25W |
| No Of Elements | 5 |
| Number of Cables | 5 |
| Operating Temp (celsius) | -40°C to +85°C |
| Thickness/Diameter (inches) | 0.79 |
| Thickness/Diameter (mm) | 20 |
| VSWR: < X: 1 | <2.0:1 |
| Width (inches) | 2.43 |
| Width (mm) | 61.8 |
