RBDMG55WW2SSSRRB
5-in-1 Antenna: MiMo 5G, MiMo WiFi & GPS/GNSS for 5G/4G/LTE Cellular Routers: RBDM-G55WW-2-SSSRR-B

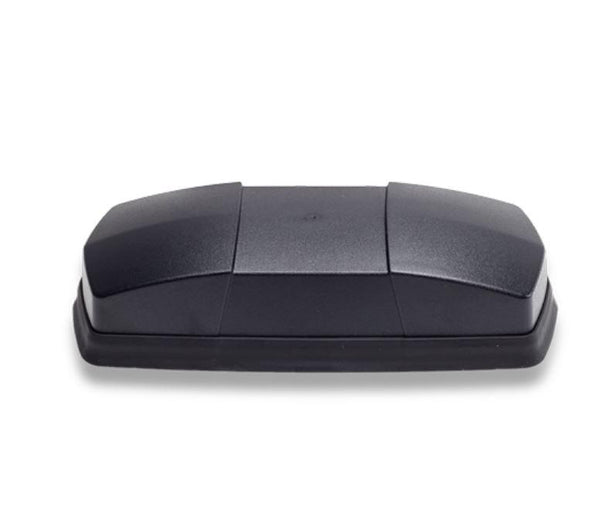

The RFMAX "Brick" antenna # RBDM-G55WW-2-SSSRR-B is a 5G ready, Low profile, ultra-rugged direct-mount antenna designed for 4G/LTE or 5G (sub 6) M2M machine-to-machine applications. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna is designed for cellular operation from 600-6000 Mhz and meets all 5G specs, as well as 3G/4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna is the perfect choice for NEMA enclosures, ATM machines, video surveillance, etc.
Optimized for 4G/LTE or 5G modems and routers from Cradlepoint, Sierra Wireless, PepLink, MultiTech, etc.
Technical Specifications
| SKU | RBDMG55WW2SSSRRB |
|---|---|
| Manufacturer Part Number | RBDM-G55WW-2-SSSRR-B |
| Manufacturer | RFMAX |
| Bands | Multi |
| Cable Length (inches) | 24 |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz (Cell) |
| Working Frequency 2 | 1710-6000 MHz (Cell) |
| Working Frequency 3 | 2400-2500 MHz (WiFi) |
| Working Frequency 4 | 5150-5925 MHz (WiFi) |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS/Baido |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 3.3 dBi |
| Gain 2 | 5.2 dBi |
| Gain 3 | 5.4 dBi |
| Gain 4 | 6.3 dBi |
| Gain 5 | 30 dB LNA Gain |
| Ground Plane Required | No |
| Horizontal/Azimuth Beamwidth | 360 |
|---|---|

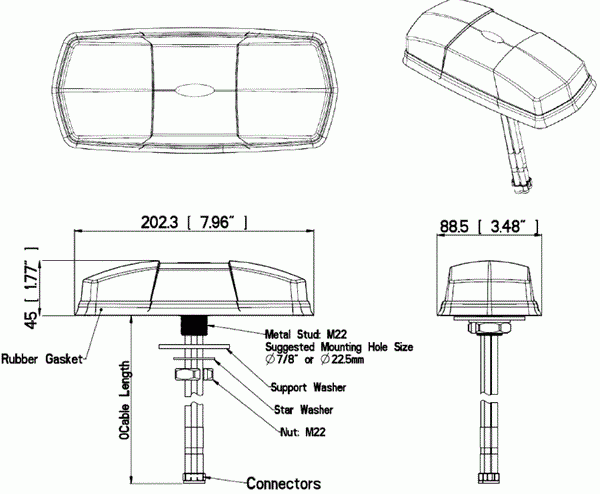

| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Impedance | 50 Ohm |
| OK for Outdoor Use | Yes |
| Material | UV Stable, UL94 Radome |

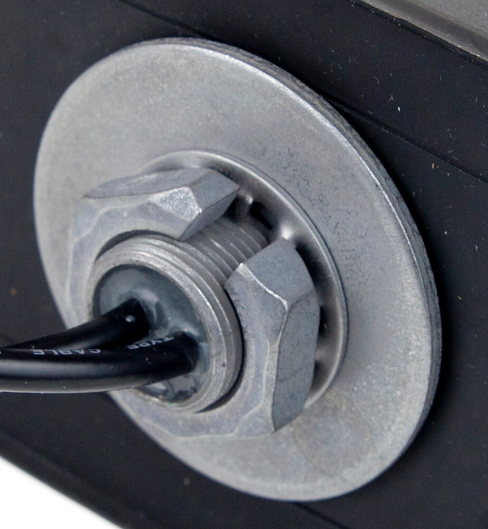

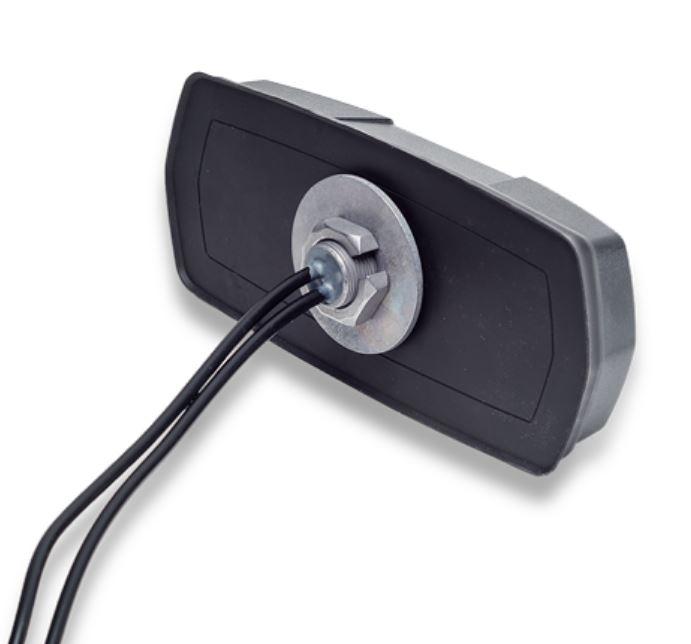

| Mount Style | Direct Mount |
| No Of Elements | 5 |
| Number of Cables | 5 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| SISO or MIMO | MIMO |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Vehicular | No |
| VSWR: < X: 1 | <2.2:1 (Cell) <2.0:1 (WiFi & GPS) |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
