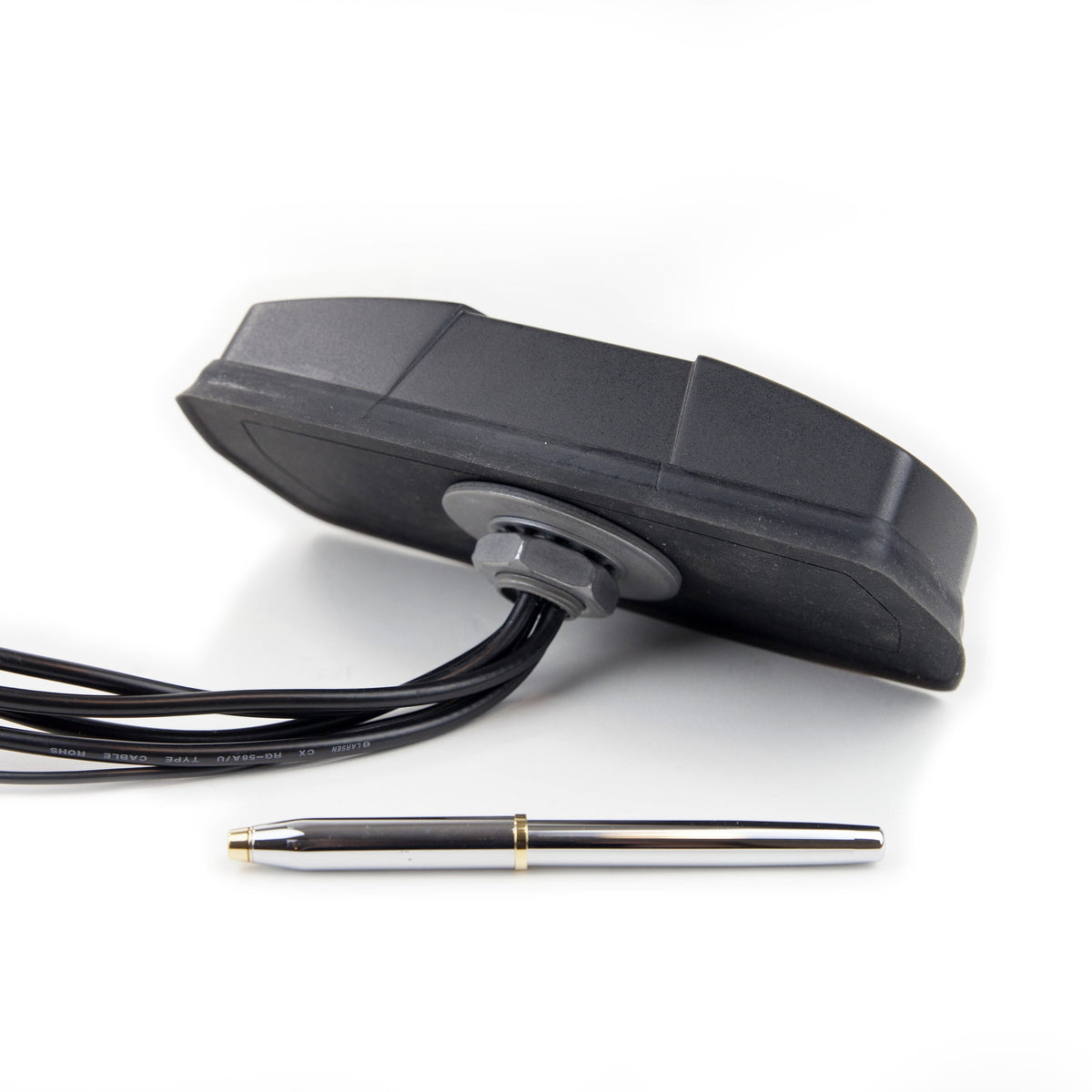

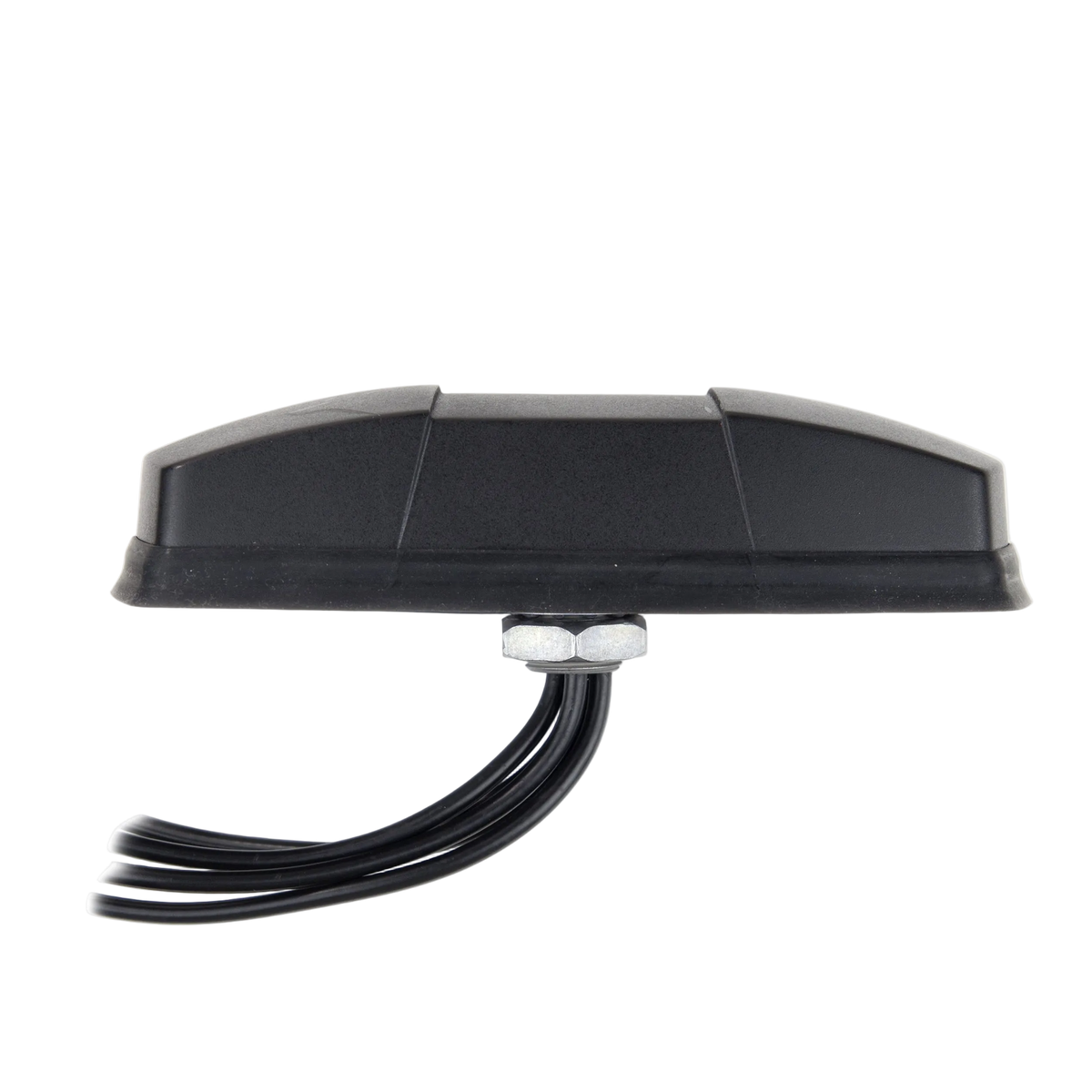

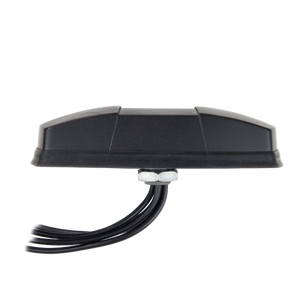

RBDM-G55WW-17-SSSRR-B
5 in 1, 4G/5G "Brick" Antenna for cellular modems like Cradlepoint R920, IBR1100, IBR900
Configuration
- A compact, ultra-rugged Direct-mount antenna designed
- Optimized for: Cradlepoint IBR900, IBR1100 & S700. R920 Sierra Wireless AirLink RV55, Getac VR-X20 DVR, PepLink, & Multi-Tech modems requiring GPS, Cell & WiFi

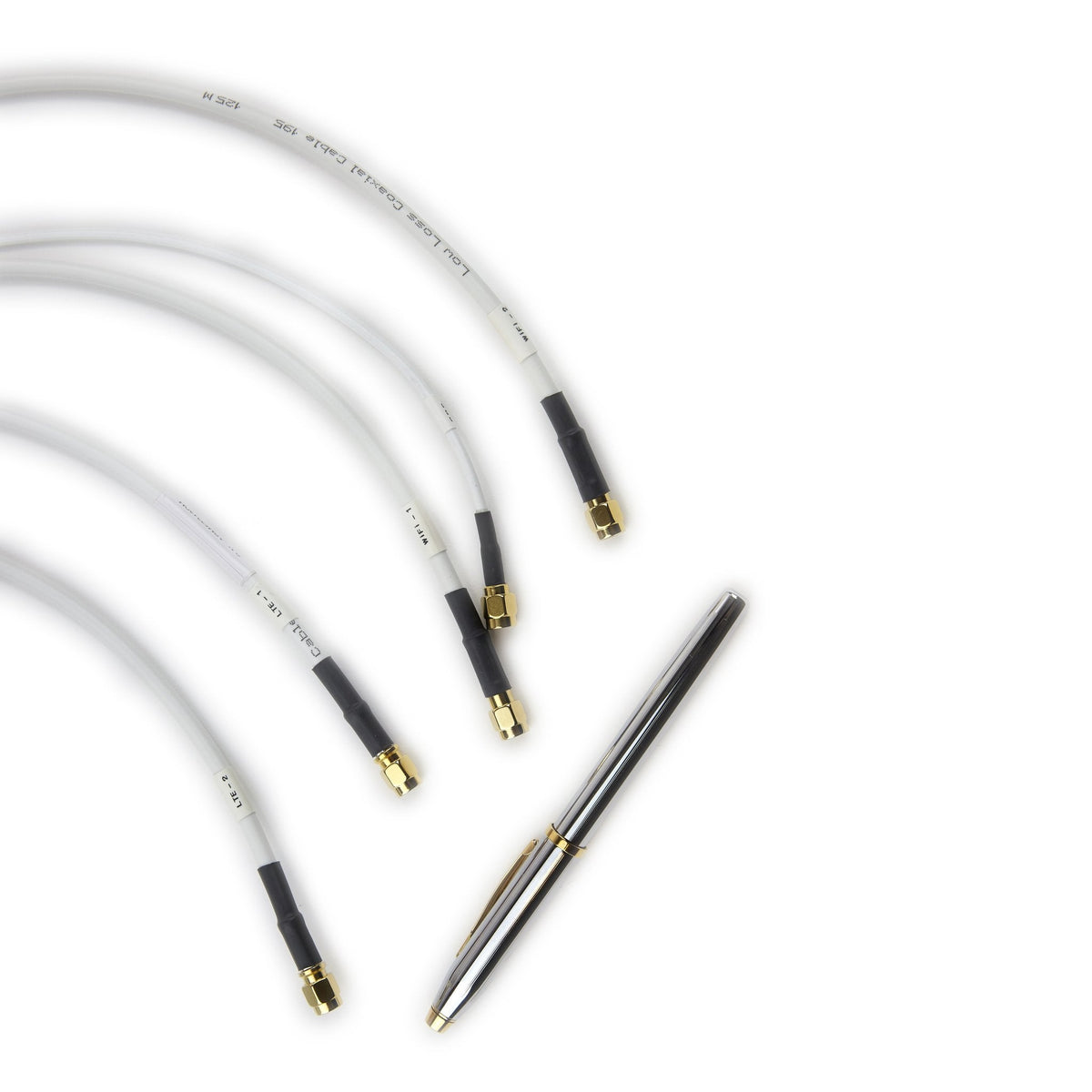

- Fequency: 2x Cell 5G/4G-LTE (617-6000 Mhz) (SMA-M) + 2x WiFi (RP SMA-M) + 1x GNSS (SMA-M)

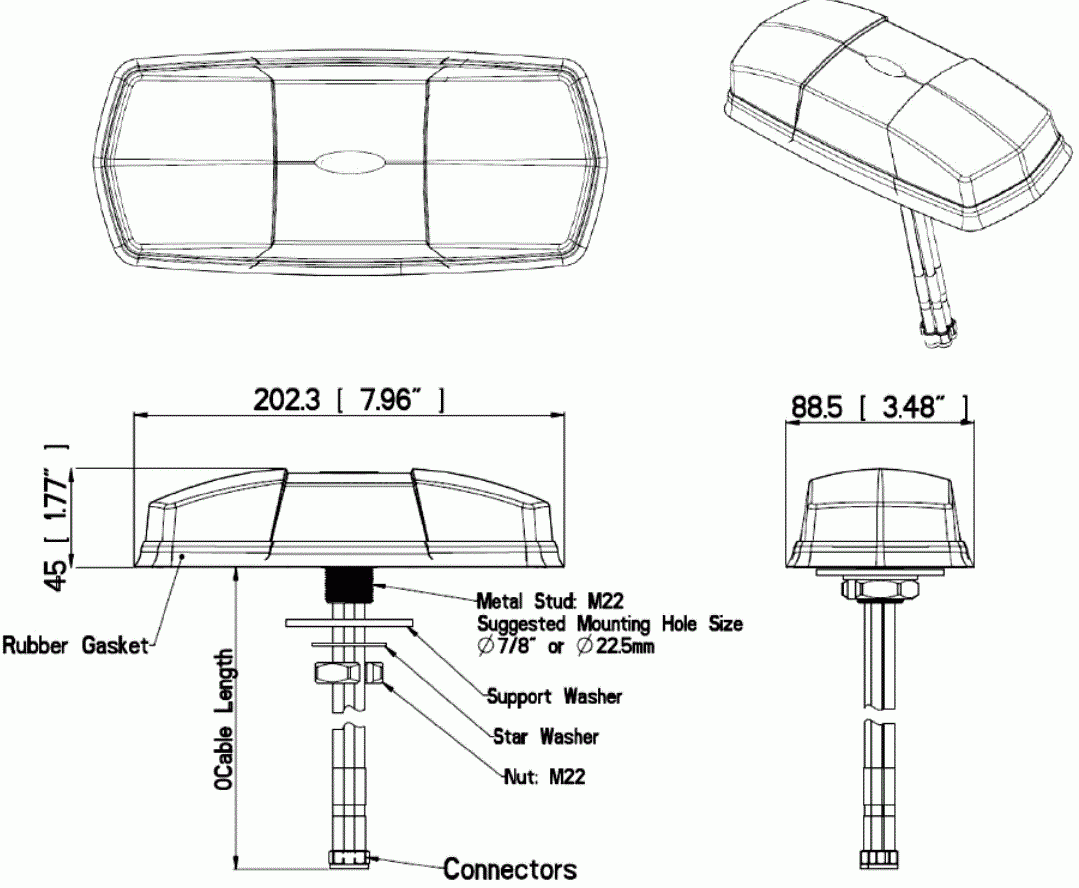

- The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches
- Meets all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from cellular carriers like AT&T, Verizon, Sprint & T-Mobile

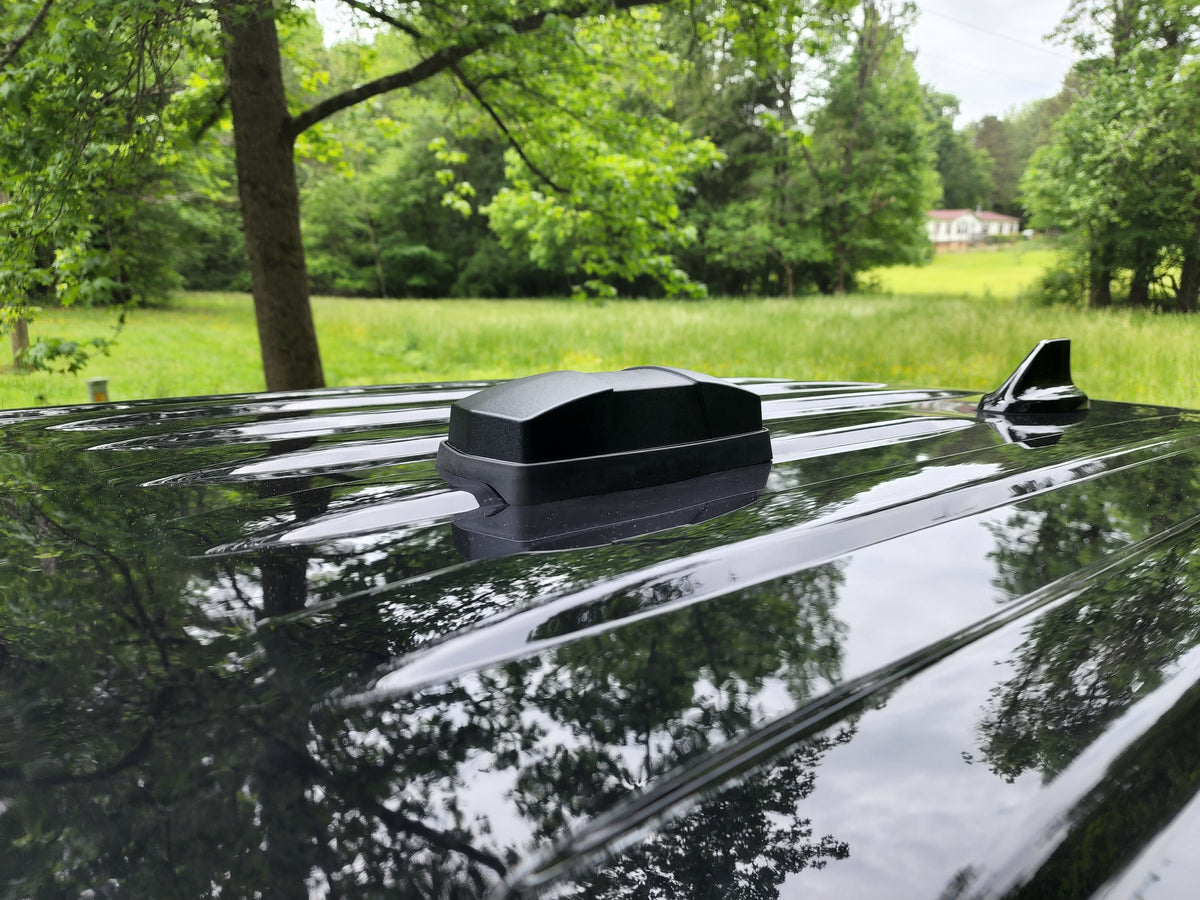

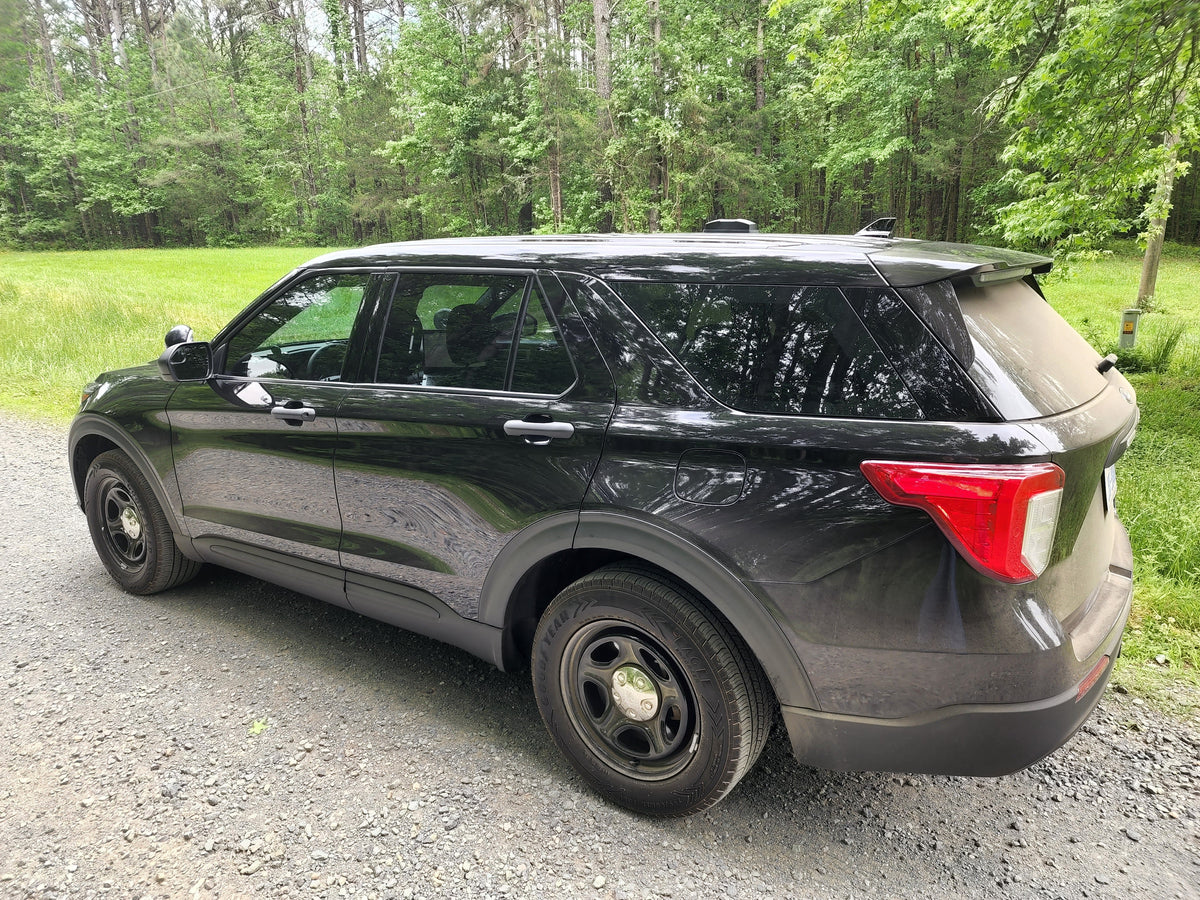

- Perfect choice for Police, Sheriff, Fire, EMS including Chevy Tahoe, Dodge Durango and the 2020/2021 Ford Explorer / Police Interceptor
- Perfect choice for M2M appliactions like NEMA enclosures, ATM machines, video surveillance, etc
- Compatible with MiMo 4G/LTE or 5G cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc
- Easy to deploy and has a low chances of vandalism due to it low profile, IP67 rated for year-round indoor or outdoor use
- USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET

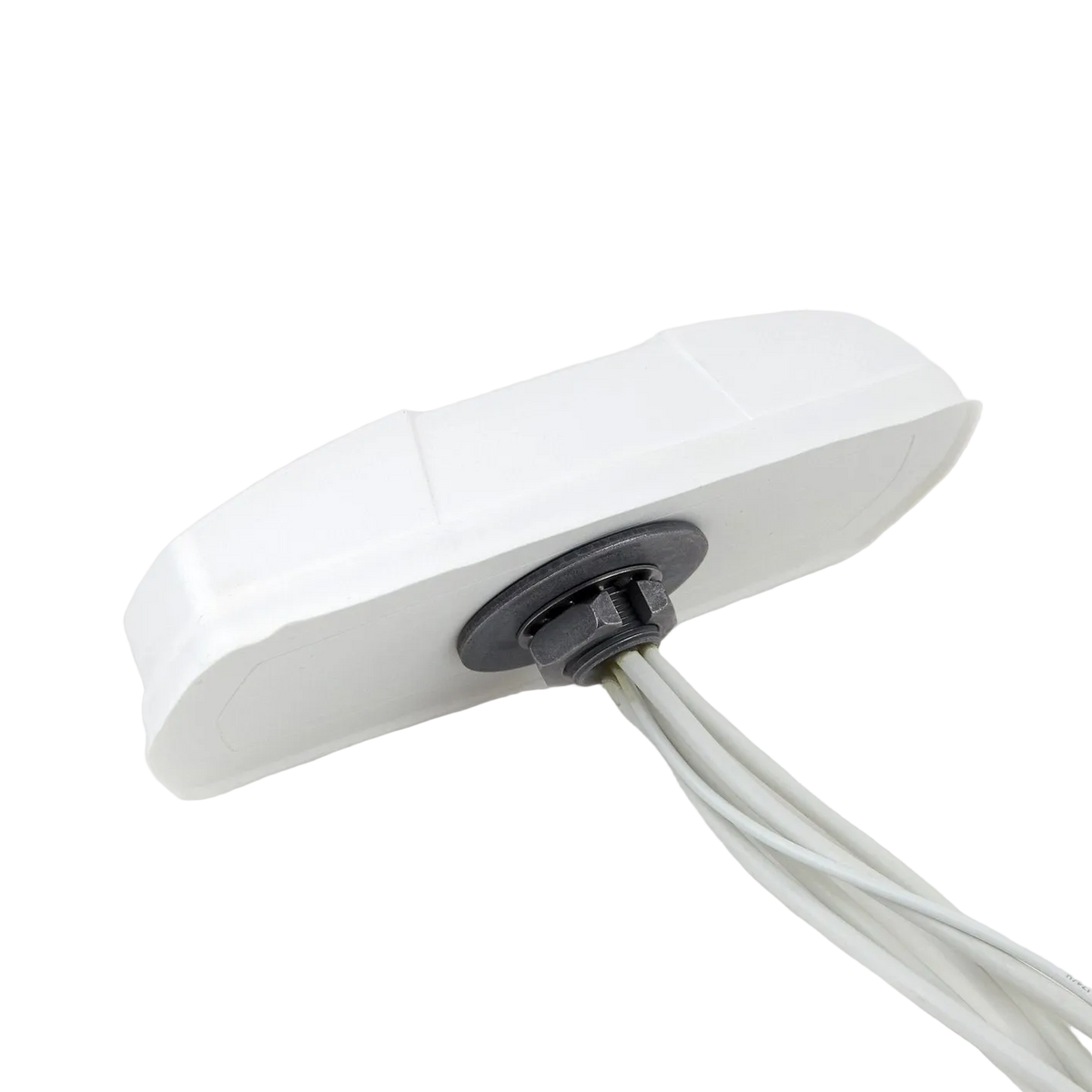

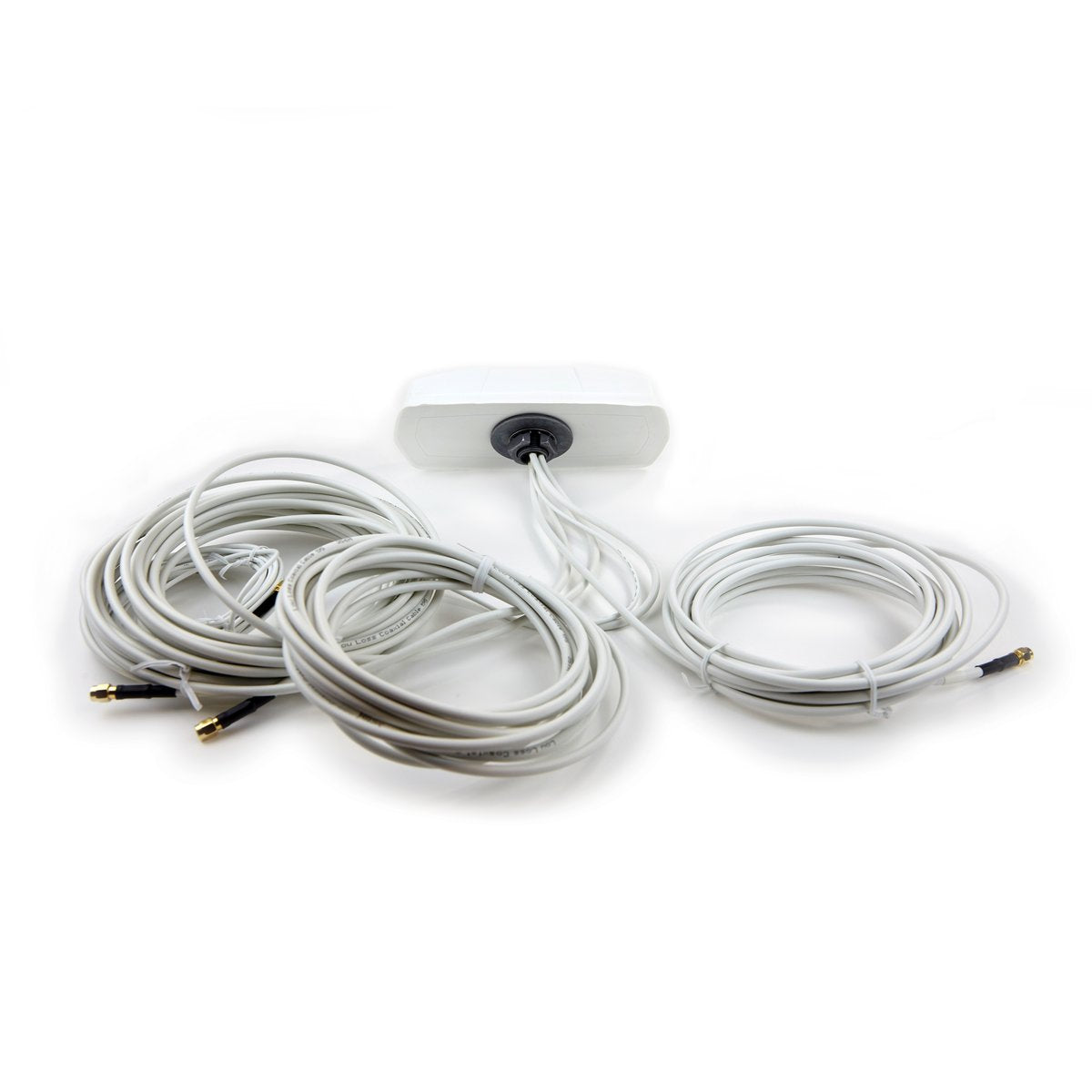

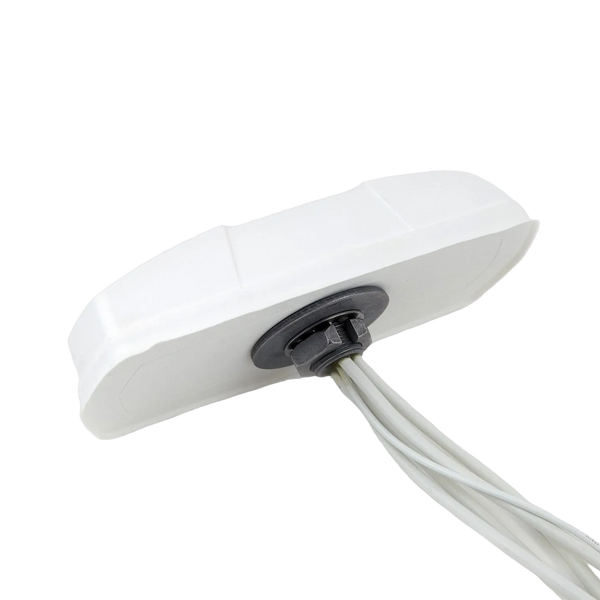

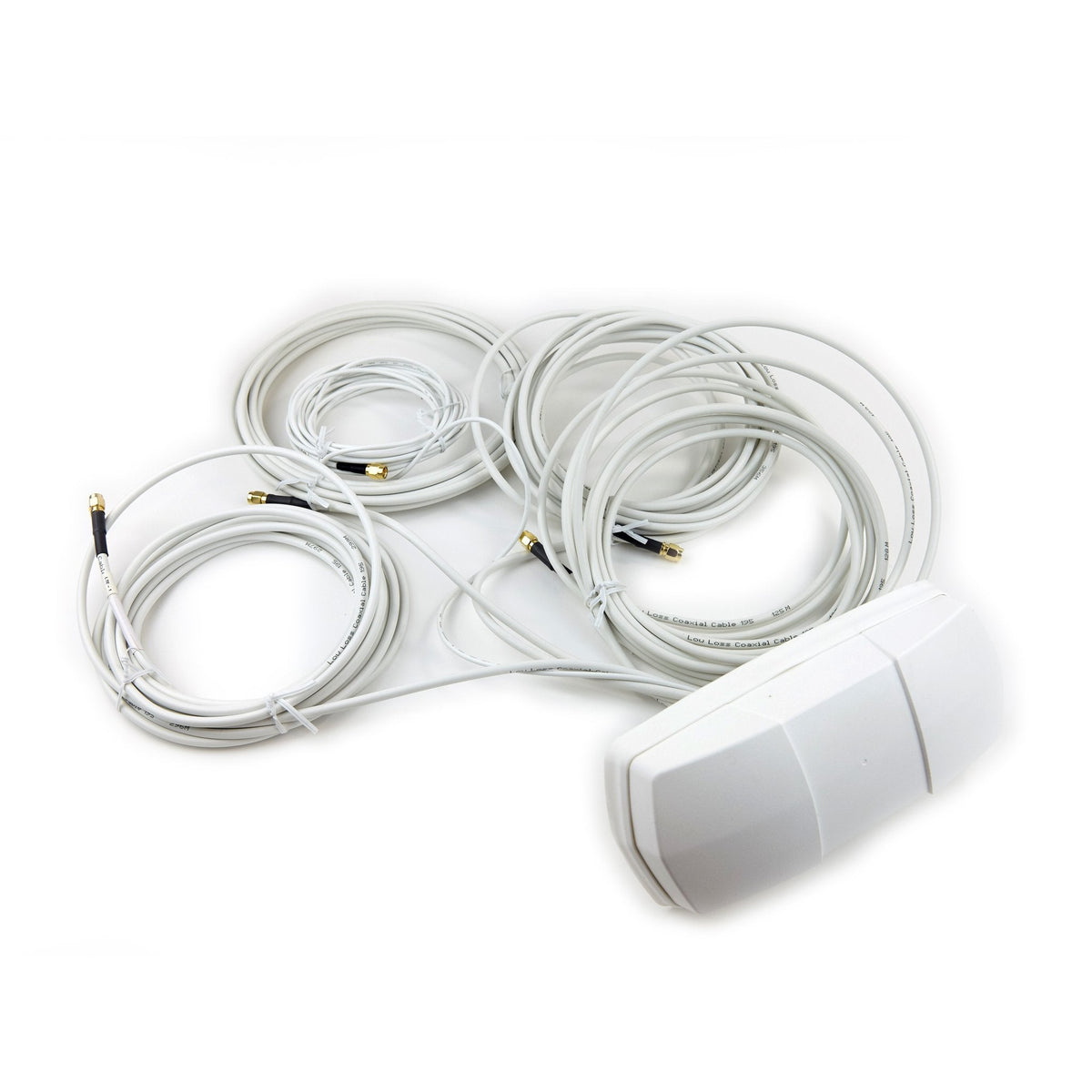

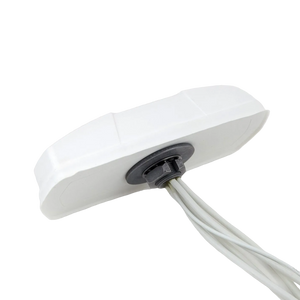

- Available in different lengths of cable and Black or White color
Technical Specifications
| SKU | RBDM-G55WW-17-SSSRR-B |
|---|---|
| Manufacturer | RFMAX |
| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1710-6000 MHz |
| Working Frequency 3 | 2400-2500 MHz |
| Working Frequency 4 | 5150-5925 MHz |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 3.3 dBi |
| Gain 2 | 5.2 dBi |
| Gain 3 | 5.4 dBi |
| Gain 4 | 6.3 dBi |
| Gain 5 | 30 dB LNA Gain |
| Ground Plane Required | No |
| Height/Length (inches) | 7.9 |
|---|---|
| Height/Length (mm) | 202 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | UV Stable, UL94 Radome |
| Mount Style | Direct Mount |
| No Of Elements | 5 |
| Number of Cables | 5 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| VSWR: < X: 1 | <2.2:1 (Cell) <2.0:1 (WiFi & GPS) |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
