RBDMG55WW17TTTTTB

4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B

  • Unit is out of stock
List Price: $325.00
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RBDMG55WW17TTTTTB

4G/5G, 5-in-1 with 17 ft. cables and TNC Male | RBDM-G55WW-17-TTTTT-B

  • Unit is out of stock
List Price: $325.00
Ships in 10-12 Weeks

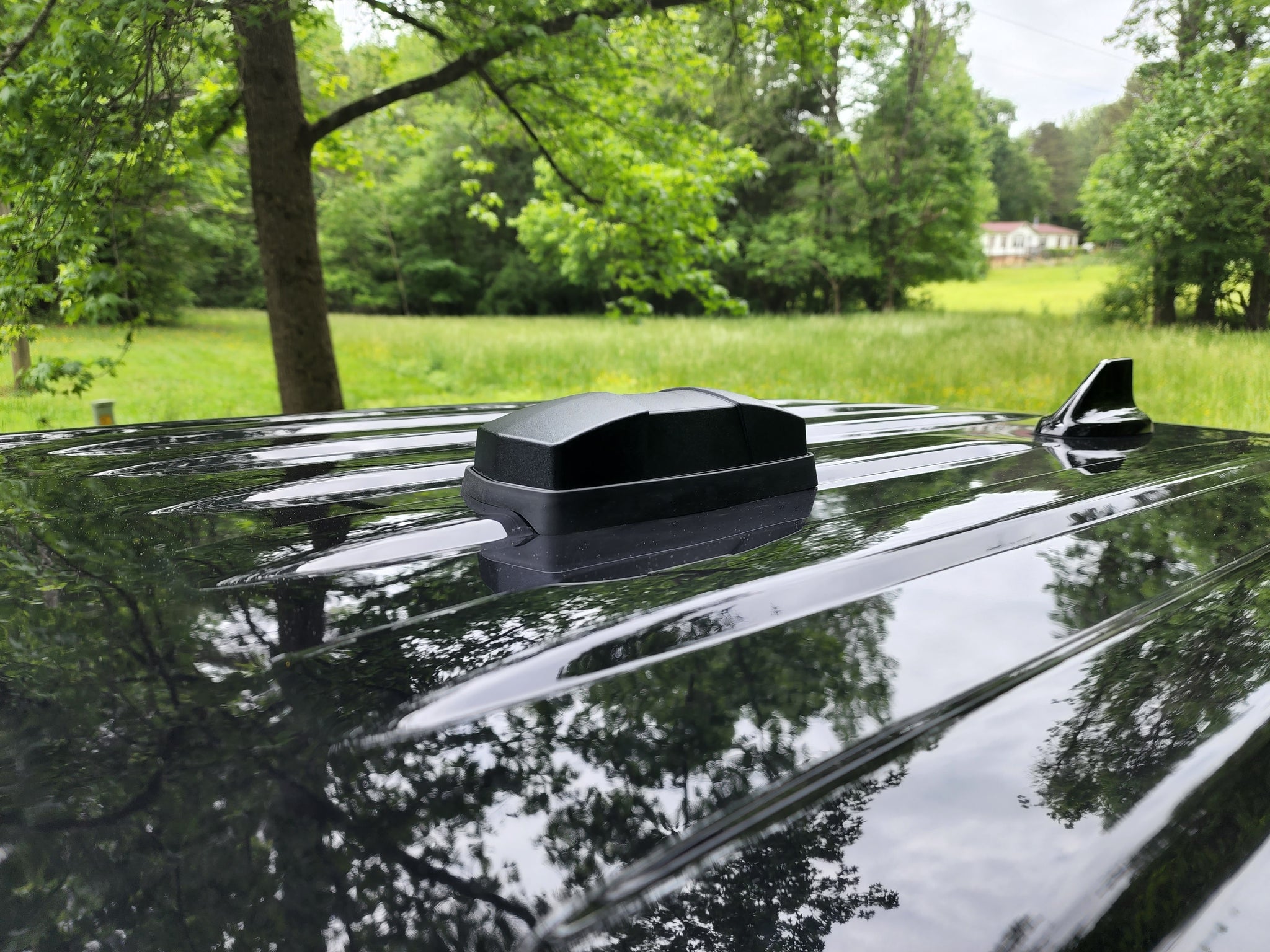

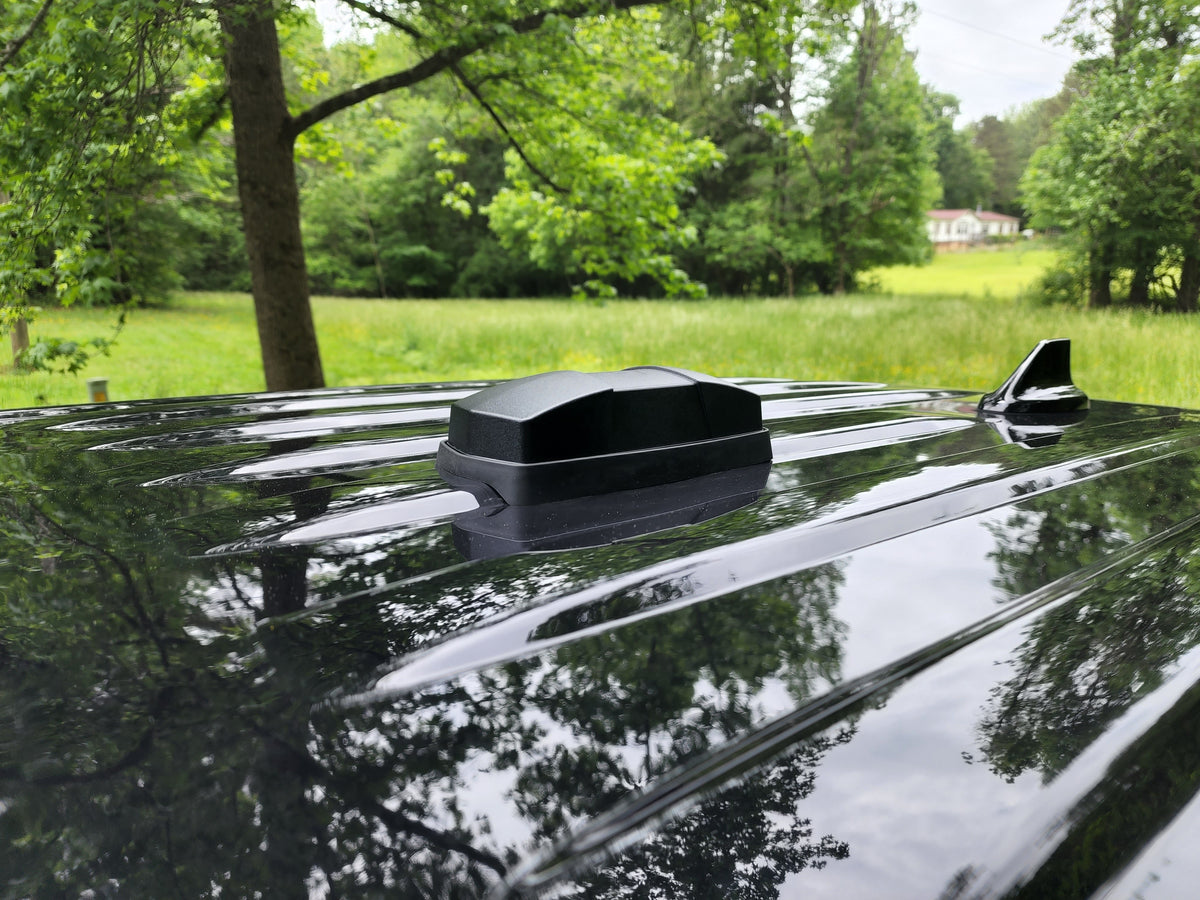

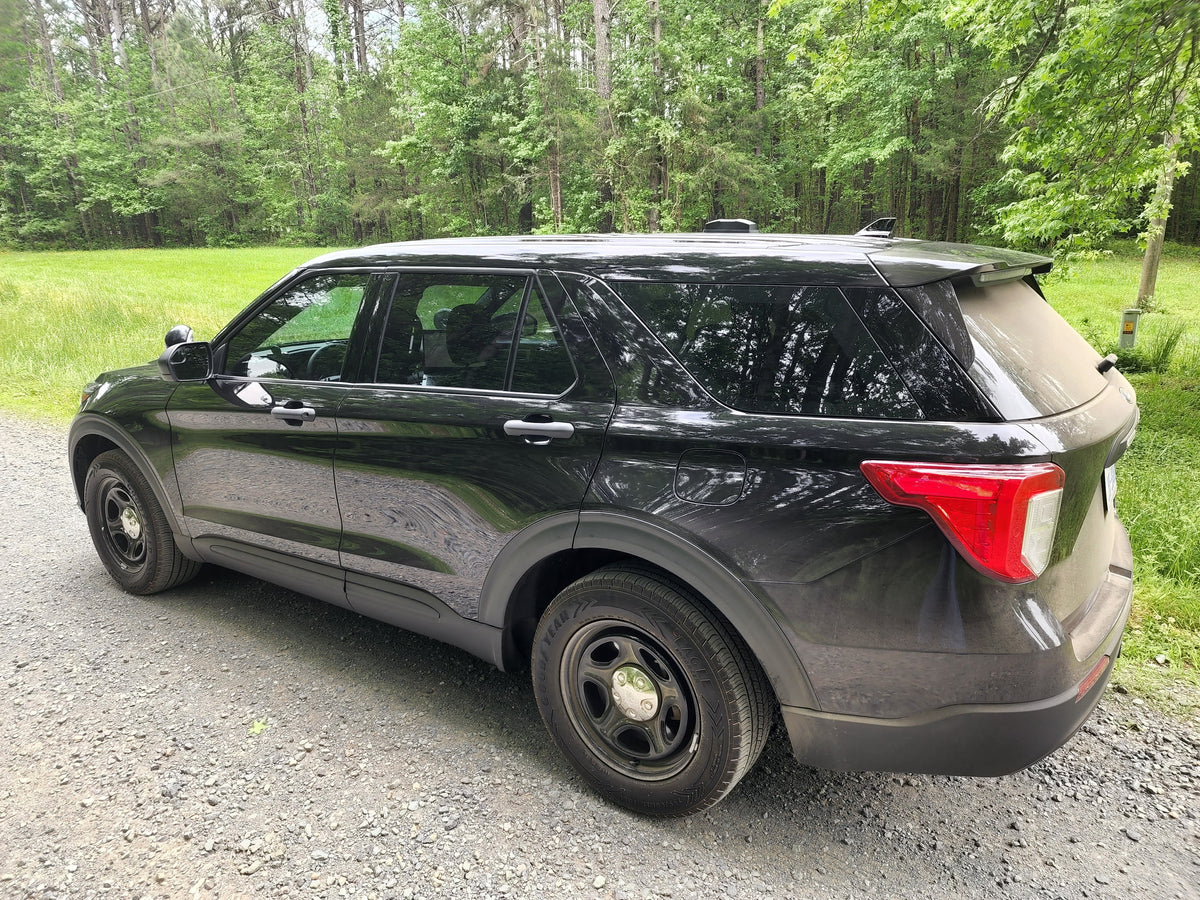

USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? USE WITH PART# RBDM-GASKET

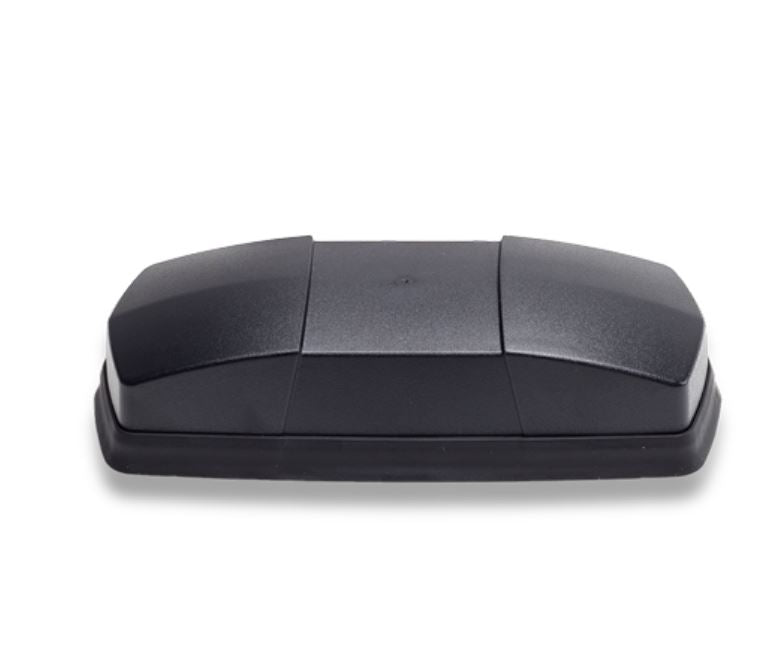

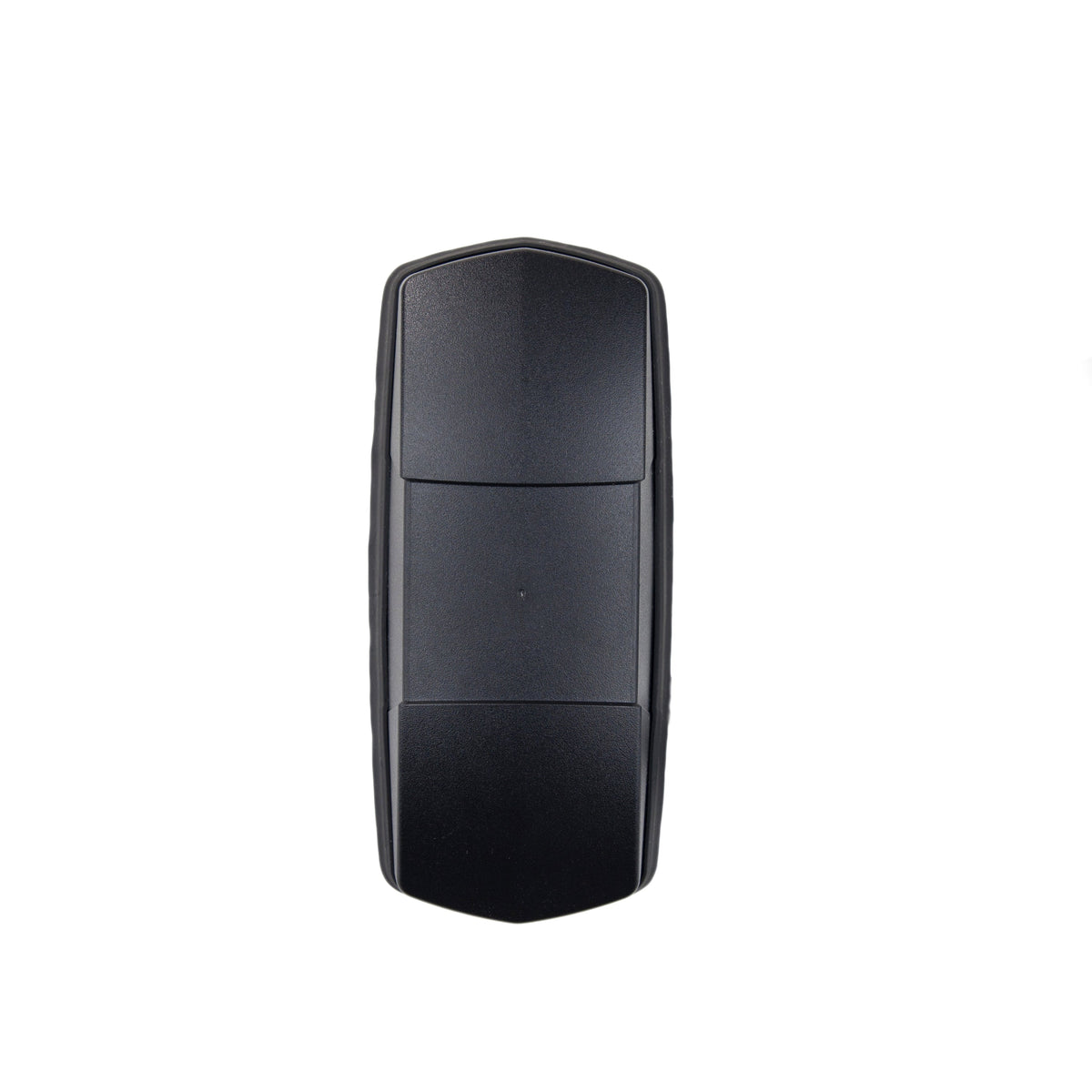

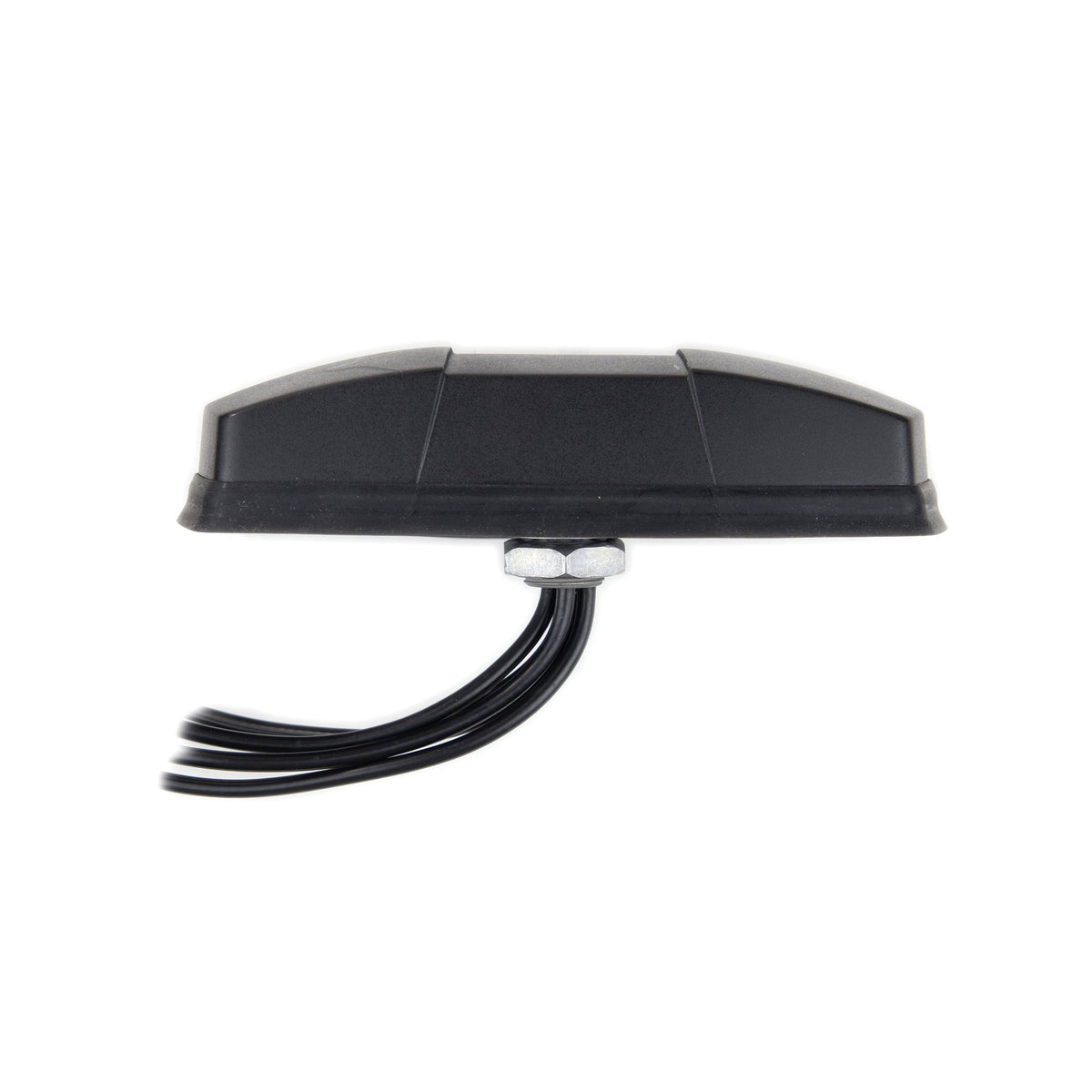

The RFMAX "Brick" antenna # RBDM-G55WW-17-TTTTT-B is a BLACK, 5-in-1 antenna with 1 x GPS + 2 x Cellular, 2 x WiFi. Includes SMA Female - to - TNC Male adapter for all cable leads.

Description BlueArrow Created with Sketch.

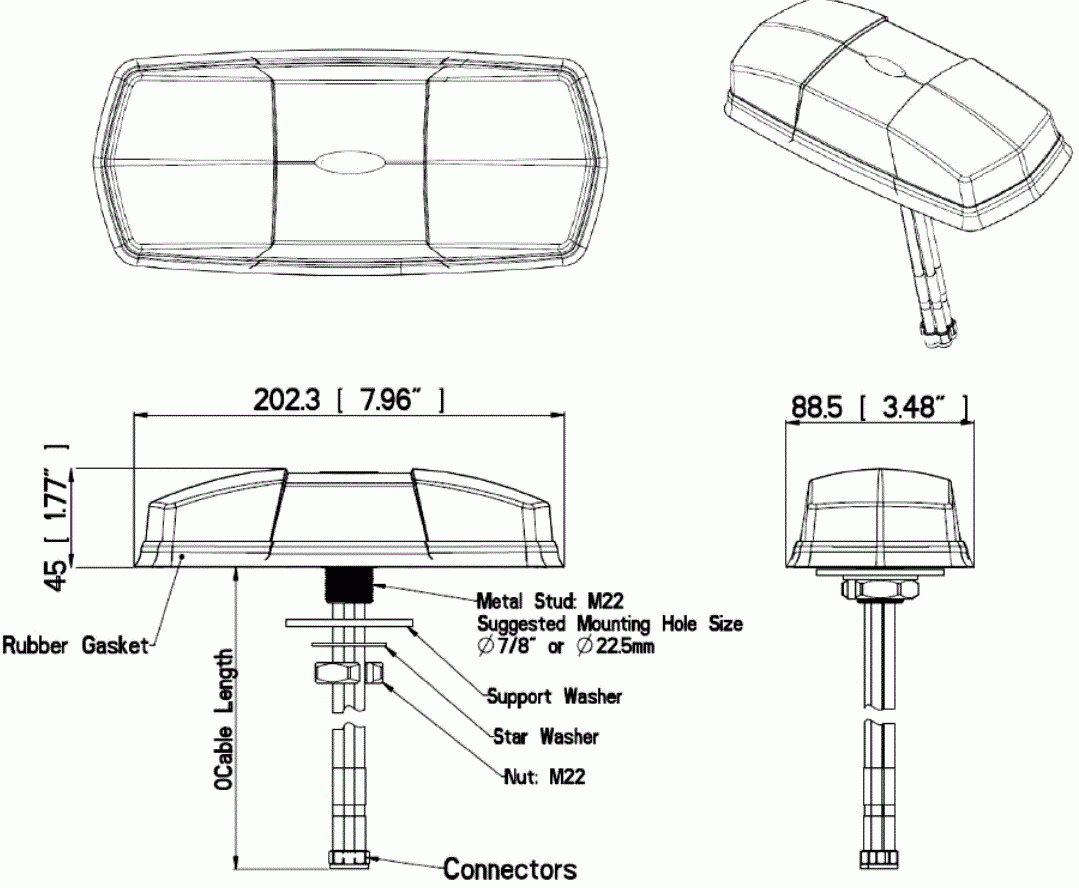

  • RFMAX "Brick" Antenna Size: 7.9 x 3.4 x 1.8 Inches
  • Excellent performance at 4G/LTE and 5G (Band 71)
  • Elements: GPS/GNSS, MiMo 4G/5G Cellular, MiMo Wi-Fi, TNC Male connectors
  • High Gain at all frequencies for maximum connection speeds
  • Vehicular Rated for Mobile (IP67 rated)

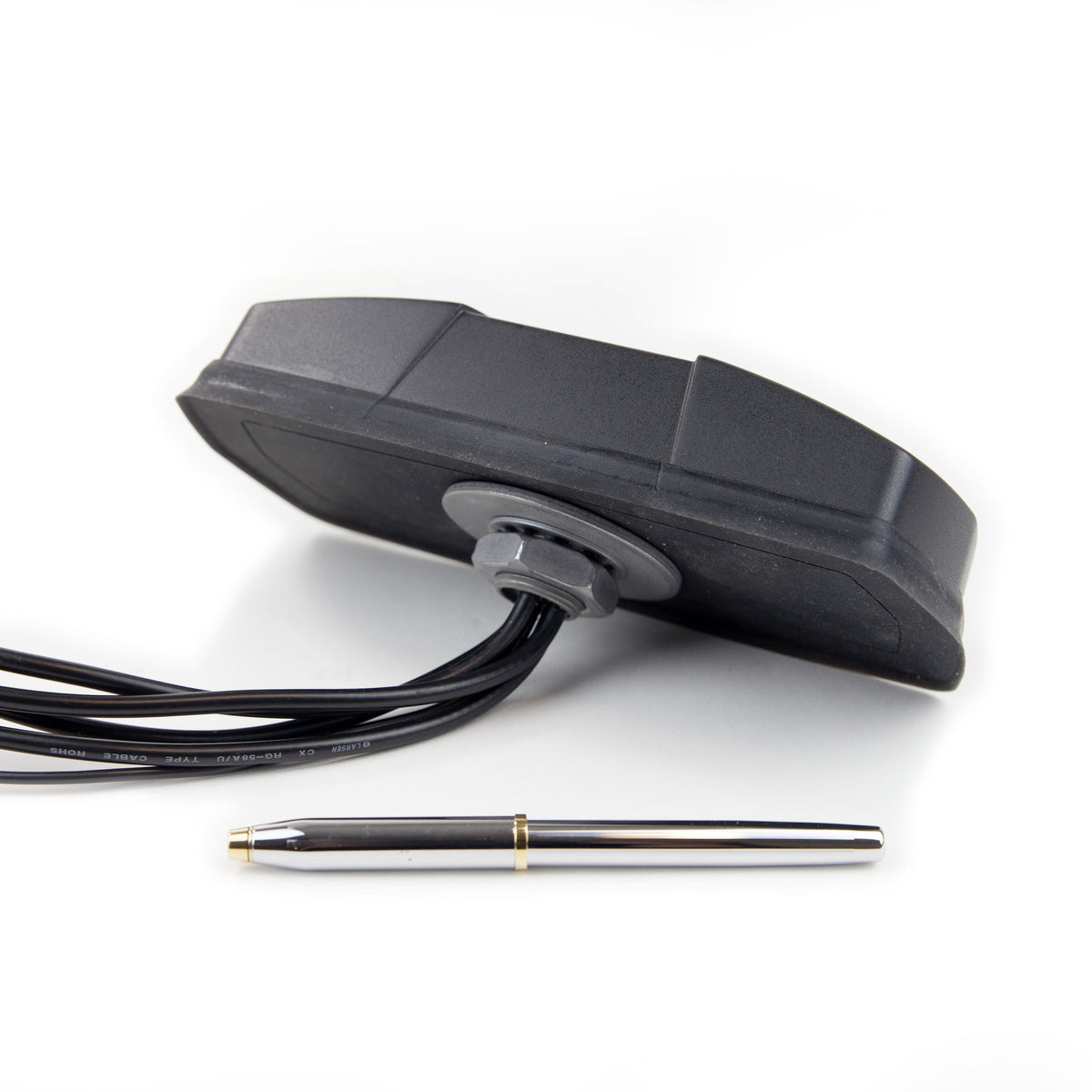

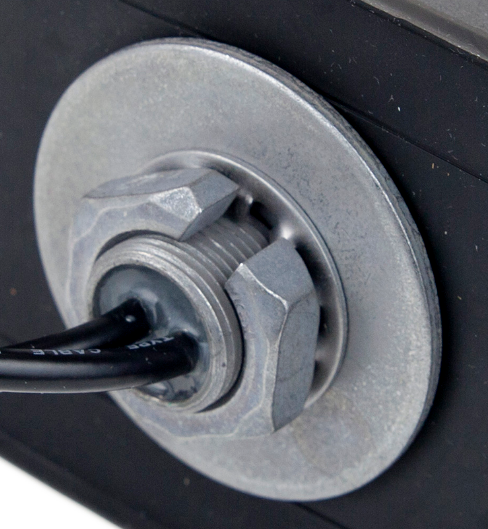

  • Easy to install (just one, 7/8" hole)

Documents BlueArrow Created with Sketch.

ViewDocument Created with Sketch. RBDM-G55WW-17-SSSRR-B Datasheet ViewDocument Created with Sketch. Mechanical Drawing ViewDocument Created with Sketch. Reliability Test Report

Specifications BlueArrow Created with Sketch.

color Black
connector 1 TNC-Male
frequency range Multi-Band (Cellular, WiFi, and/or GPS)
ip rating IP67
lenght (in) 7.9
material UV Stable, UL94 Radome
mfg part# RBDM-G55WW-17-TTTTT-B
operating temp (celsius) -40 to +85 C
technology CELLULAR + WIFI + GPS
thick (in) 1.8
type "Brick" Multi-Element Antenna
weight (lbs) 2
width (in) 3.4
