RBDMG55WW17SSSRRB
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B

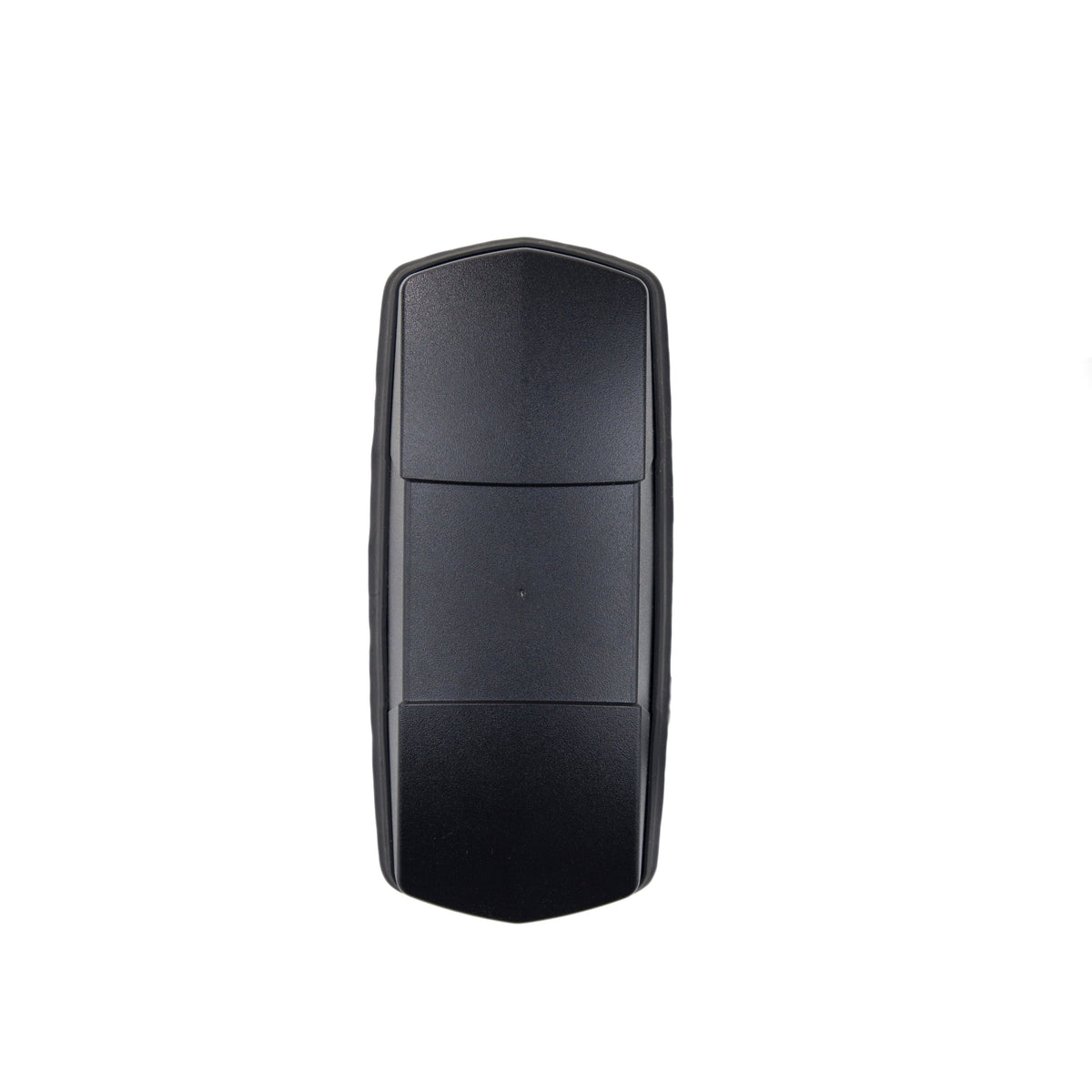

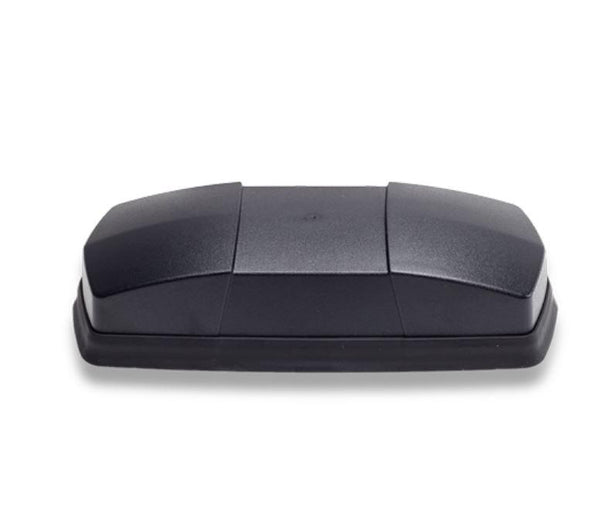

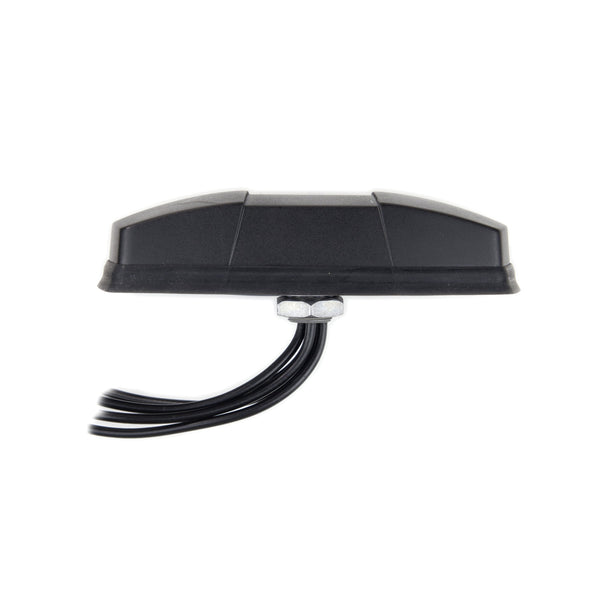

The RFMAX "Brick" antenna # RBDM-G55WW-17-SSSRR-B is a BLACK, 5G ready (617-6000 Mhz) compact, Low profile, ultra-rugged direct-mount antenna designed for Public Safety and Enterprise Fleets. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to exceed all 3G/4G/LTE *AND* 5G (Band 71, CBRS) specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna is the perfect choice for Police, Sheriff, Fire, EMS including Chevy Tahoe, Dodge Durango and the 2020/2021 Ford Explorer / Police Interceptor. Includes roof rib gasket for FPIU. Optimized for: Cradlepoint IBR900 & R1900, Sierra Wireless AirLink RV55, PepLink, & Multi-Tech modems requiring GPS, Cell & WiFi.
Technical Specifications
| SKU | RBDMG55WW17SSSRRB |
|---|---|
| Manufacturer Part Number | RBDM-G55WW-17-SSSRR-B |
| Manufacturer | RFMAX |
| Bands | Multi |
| Cable Length (inches) | 204 |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | RP SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1710-6000 MHz |
| Working Frequency 3 | 2400-2500 MHz |
| Working Frequency 4 | 5150-5925 MHz |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 3.3 dBi |
| Gain 2 | 5.2 dBi |
| Gain 3 | 5.4 dBi |
| Gain 4 | 6.3 dBi |
| Gain 5 | 30 dB LNA Gain |
| Ground Plane Required | No |
| Horizontal/Azimuth Beamwidth | 360 |
|---|---|

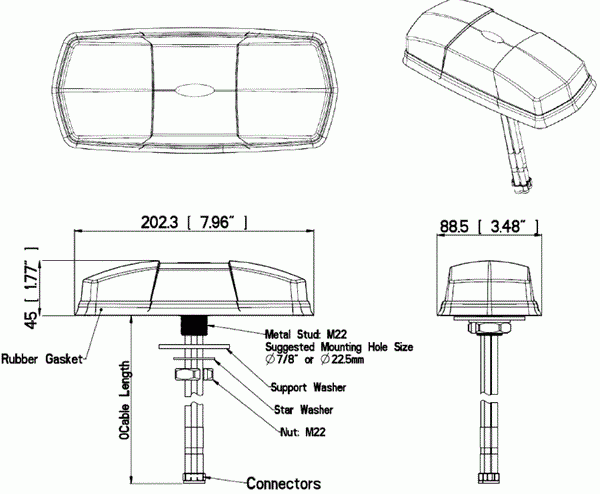

| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Impedance | 50 Ohm |
| OK for Outdoor Use | yes |
| IP Rating | IP67 |
| Material | UV Stable, UL94 Radome |

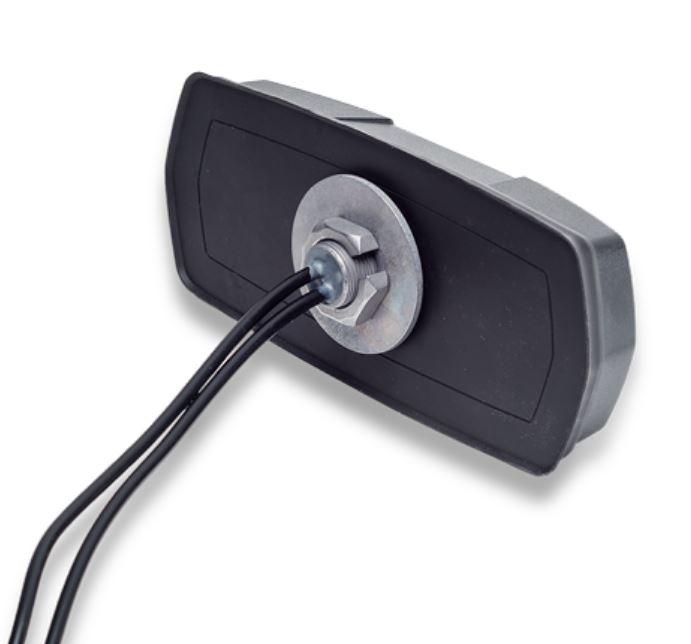

| Mount Style | Direct Mount |
| No Of Elements | 5 |
| Number of Cables | 5 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| SISO or MIMO | MIMO |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Vehicular | Yes |
| VSWR: < X: 1 | <2.2:1 (Cell) <2.0:1 (WiFi & GPS) |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
