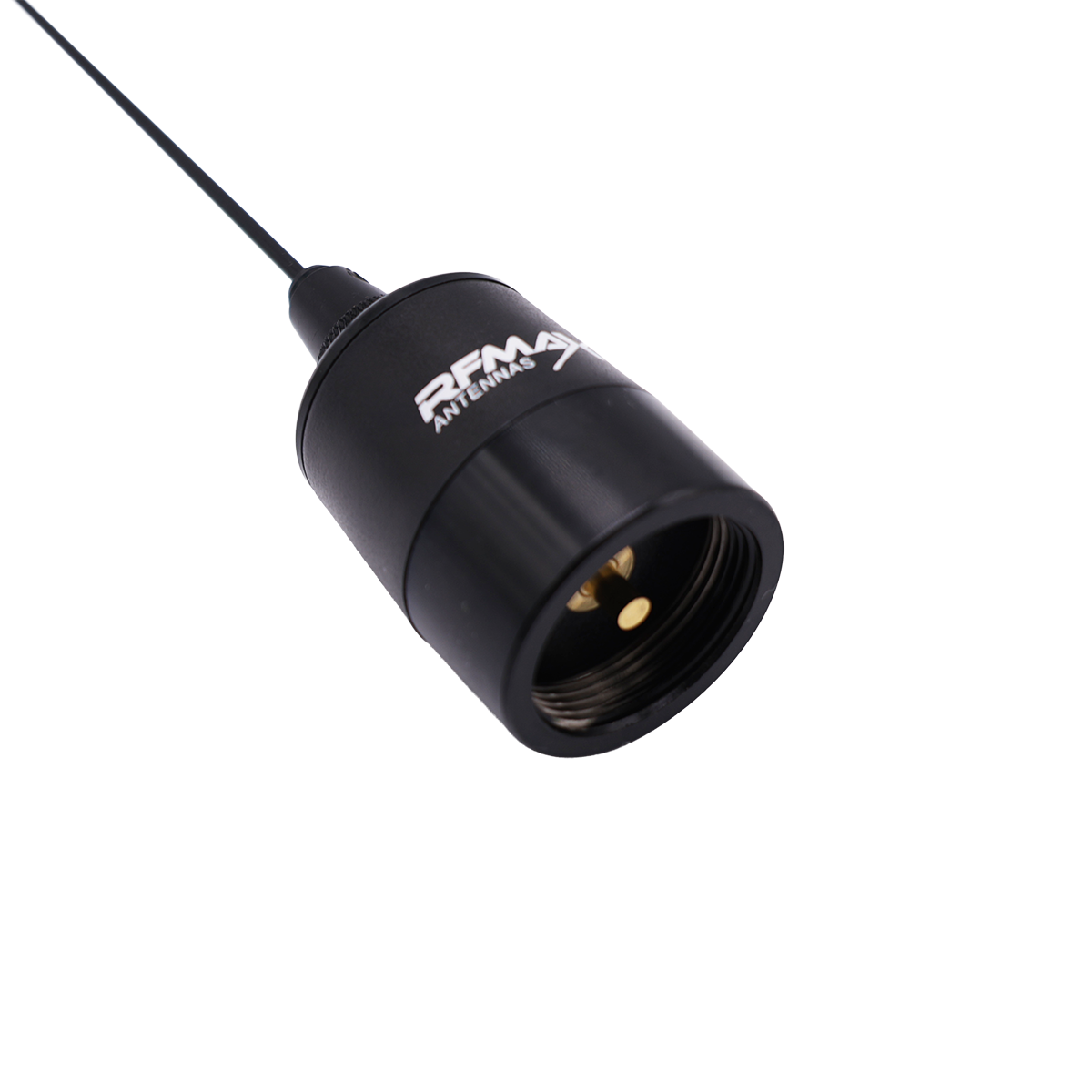

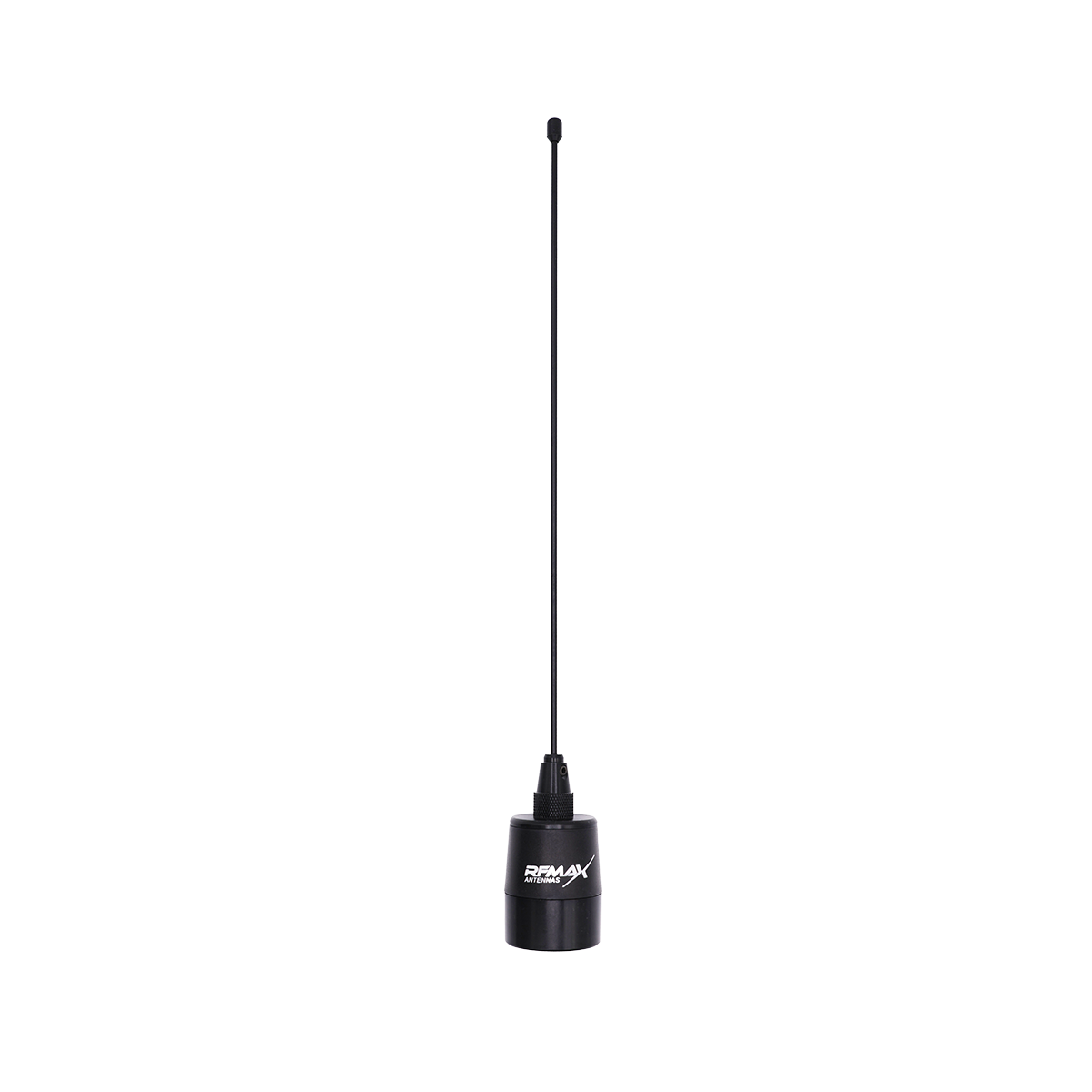

RBCO-450-2-NGP-B
450-470 MHz UHF Whip Antenna with Black NMO Base no Ground plane req
- High-performance UHF antenna operating across the 450-470 MHz band
- Loaded base coil antenna design delivering 2 dBi gain with high radiation efficiency
- Ground plane independent (NGP) architecture ideal for fiberglass, composite, and non-metallic mounting surfaces
- Rugged, high-efficiency design engineered for public safety, fleet, and land-mobile radio applications requiring consistent and reliable UHF performance
Technical Specifications
| SKU | RBCO-450-2-NGP-B |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | NMO |
| Directional or Omni | Omnidirectional |
| Working Frequency | 450-470 MHz |
| Antenna Category | UHF (380-600 MHz) |
| Gain | 2.4 |
| Ground Plane Required | No |
| OK for Outdoor Use | Outdoor |
|---|---|
| Material | ABS |
| Max Input Power (W) | 200 |
| Mount Pattern | 3/4 Inch NMO |
| Mount Style | Screw On |
| Polarity | Linear |
| Thickness/Diameter (inches) | 1.44 |
| Thickness/Diameter (mm) | 37 |
| VSWR: < X: 1 | 2 |
