ROSA-450-3-SNF

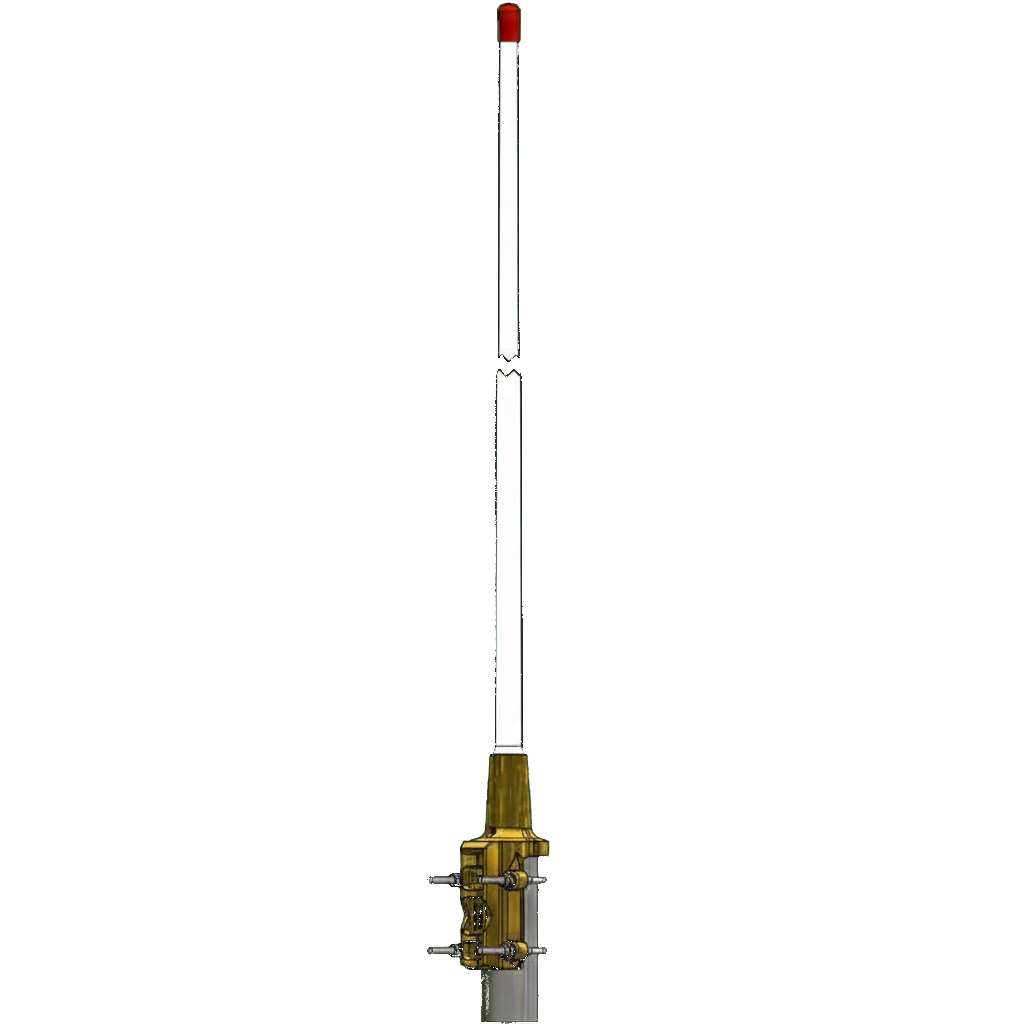

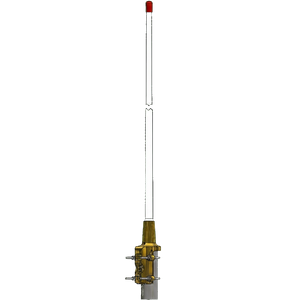

450-470 MHz Fiberglass Omni Base Station Antenna with N Female
Configuration
- UHF fiberglass omni base station antenna for LMR, repeaters, and industrial radio systems
- Omnidirectional 5 dBi or 5 dBi gain for reliable 360° coverage and extended range
- Durable fiberglass radome with N-Female connector (50 Ohm) for long-term outdoor use
- Designed for fixed/base station installations with stable, high-efficiency RF performance
- Weather-resistant construction for reliable operation in harsh environments
- Ideal for public safety, utilities, and mission-critical UHF communications network
- DC-grounded antenna ensures long-term performance in harsh environments
Technical Specifications
| SKU | ROSA-450-3-SNF |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Connector 1 | N-Female |
| Directional or Omni | Omnidirectional |
| Working Frequency | 440-470 MHz |
| Antenna Category | UHF (380-600 MHz) |
| Includes | Includes Mounting Kit |
| OK for Outdoor Use | Outdoor |
|---|---|
| IP Rating | IP66 |
| Material | Polyurethane-coated fiberglass |
| Max Input Power (W) | 150 Watts |
| Operating Temp (celsius) | -35 to +70 C |
| Polarity | Vertical |
| Thickness/Diameter (inches) | .93 (Dia. At Bottom) |
| VSWR: < X: 1 | <1.5:1 |
