RY450-6-3-SNF

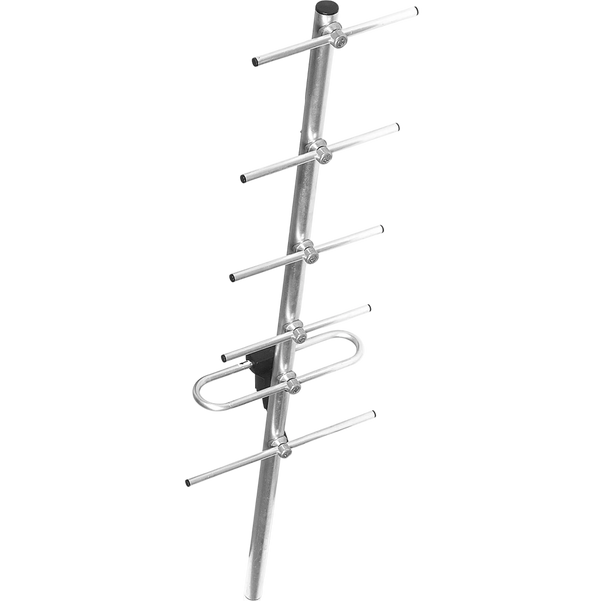

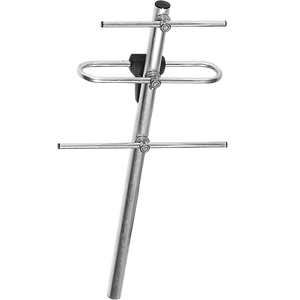

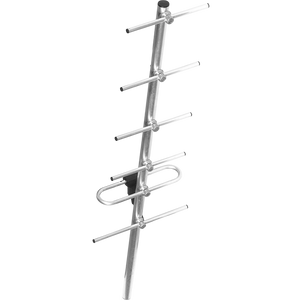

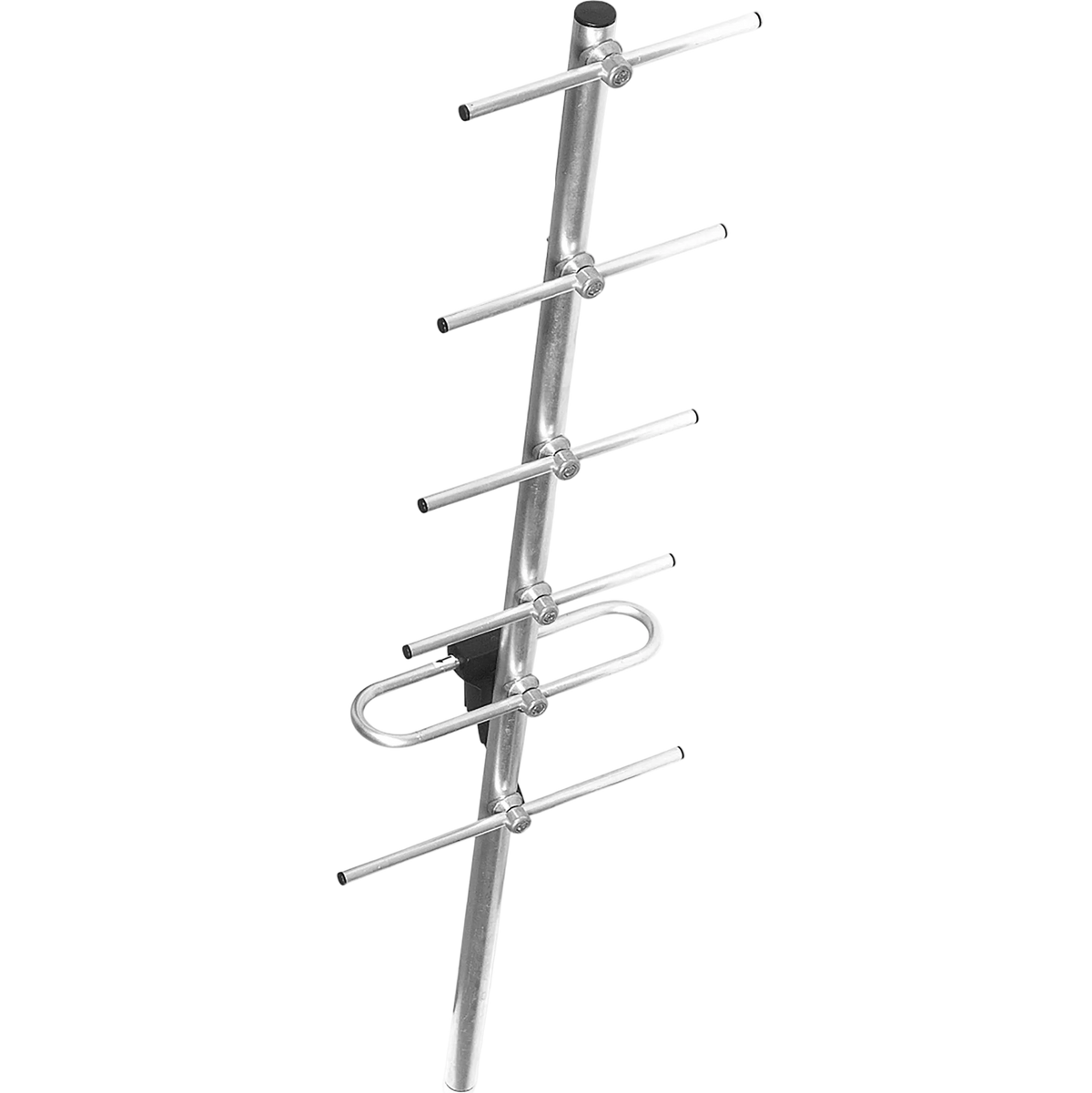

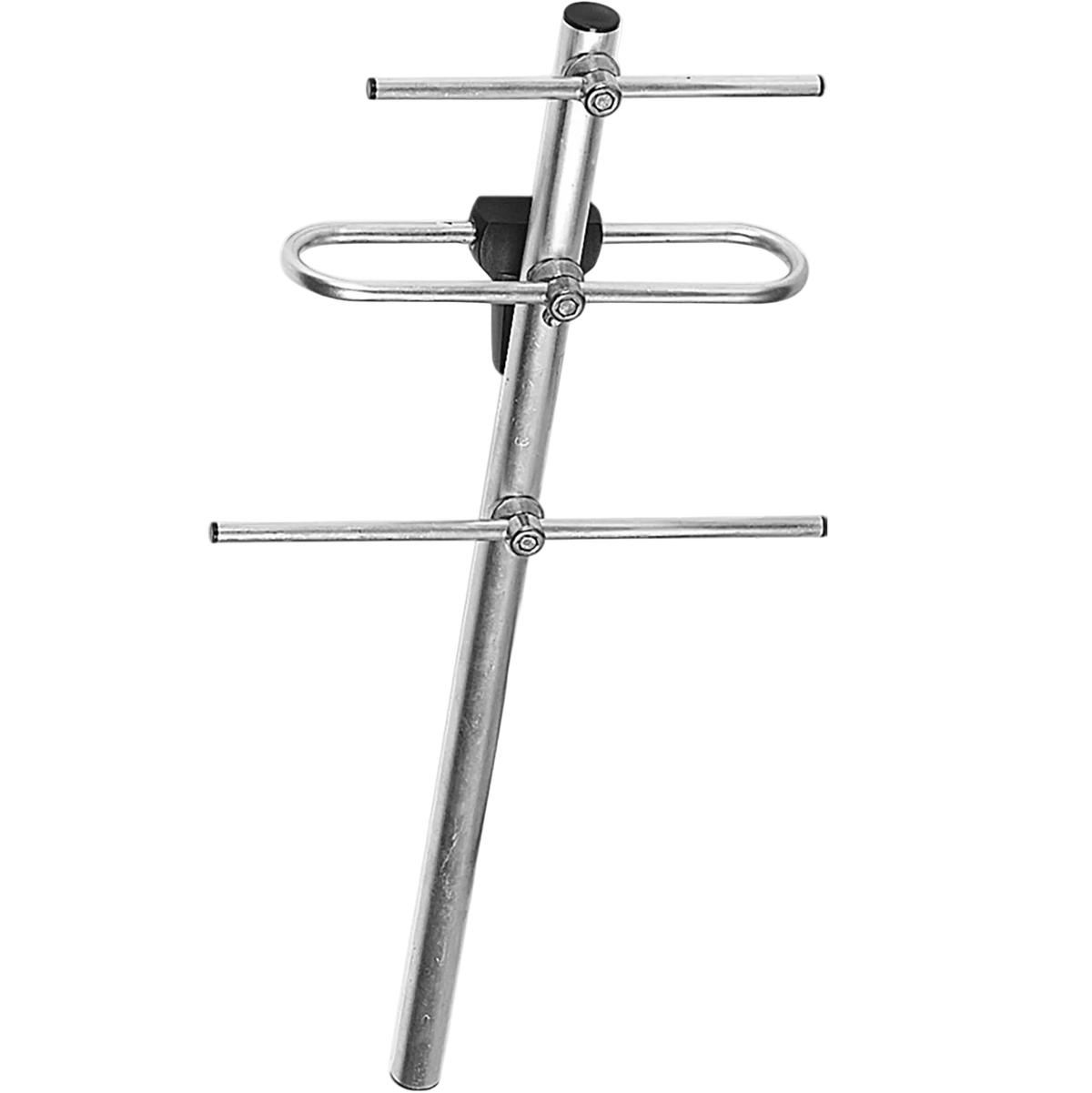

420-470 MHz Yagi Antenna with 10 feet of cable and N-Female Connector
Configuration
- Frequency range: 420470 MHz (UHF band)
- Gain: 6 dB (3-element) or 9 dB (6-elements)
- VSWR / Impedance: ?1.5:1, 50 Ohm
- Max input power: 150W
- Polarization: Linear (directional)
- Front-to-back ratio: >15 dB
- Connector: N-Female
- Cable: 10 ft RG-213 integrated coax
- Dimensions: Approx. 29.1" length (3-element), 50.39 (6-element)
- Environmental rating: IP68 (outdoor-rated)
Technical Specifications
| SKU | RY450-6-3-SNF |
|---|---|
| Manufacturer | RFMAX |
| Color | Stainless |
| Connector 1 | N-Female |
| Directional or Omni | Directional |
| Working Frequency | 420-470 MHz |
| Antenna Category | UHF (380-600 MHz) |
| Includes | Includes Mounting Kit |
| OK for Outdoor Use | Outdoor |
|---|---|
| IP Rating | IP68 |
| Length pt240 cables | 10 Feet RG-213 |
| Max Input Power (W) | 150 Watts |
| Operating Temp (celsius) | -35 to +70 C |
| Polarity | Linear (Vertical or Horizontal) |
| VSWR: < X: 1 | <1.5:1 |
