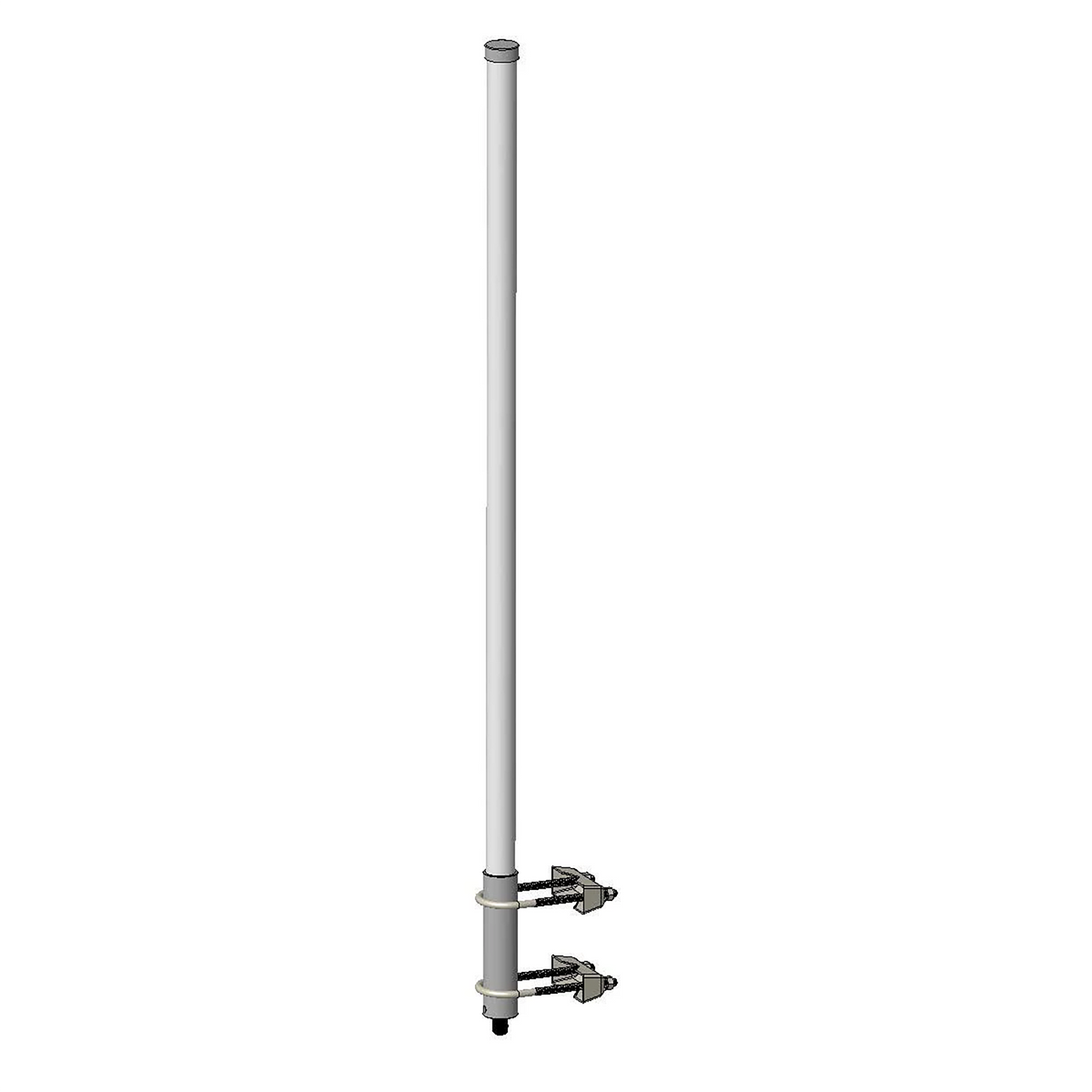

ROSA-410-5-SNF
410-420 MHz Fiberglass Omni Antenna with N Female 5 dBi Gain
- Optimized for : AES Fire Monitoring System, Public Safety, SCADA, and wireless infrastructure networks
- Engineered to withstand wind speeds up to 100 mph and temperatures from -40°C to +60°C
- Included: Mounting Bracket
- 410-420 MHz, 5 dBi, N-Female, DC grounded, 100 W, 43 inches long
Technical Specifications
| SKU | ROSA-410-5-SNF |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Connector 1 | N-Female |
| Directional or Omni | Omni Directional |
| Working Frequency | 410-420 MHz |
| Antenna Category | UHF (380-600 MHz) |
| Gain | 5.0 dBi |
| Height/Length (inches) | 42.9 |
| Height/Length (mm) | 1090 |
| Includes | Includes Mounting Kit |
|---|---|
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Max Input Power (W) | 100 Watts |
| Operating Temp (celsius) | -40 to +60 C |
| Polarity | Vertical |
| Thickness/Diameter (inches) | 1.3 |
| Thickness/Diameter (mm) | 32 |
| VSWR: < X: 1 | <2.0:1 |
| Weight (lbs) | 2.8 (without bracket) |
