R3DAN-450-SBM

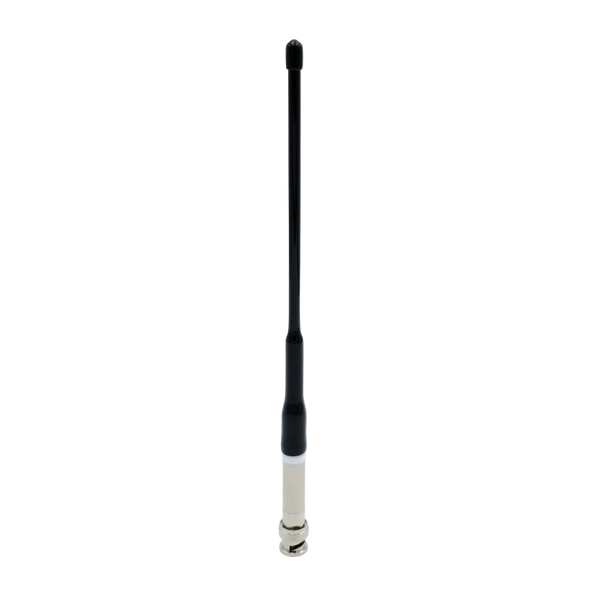

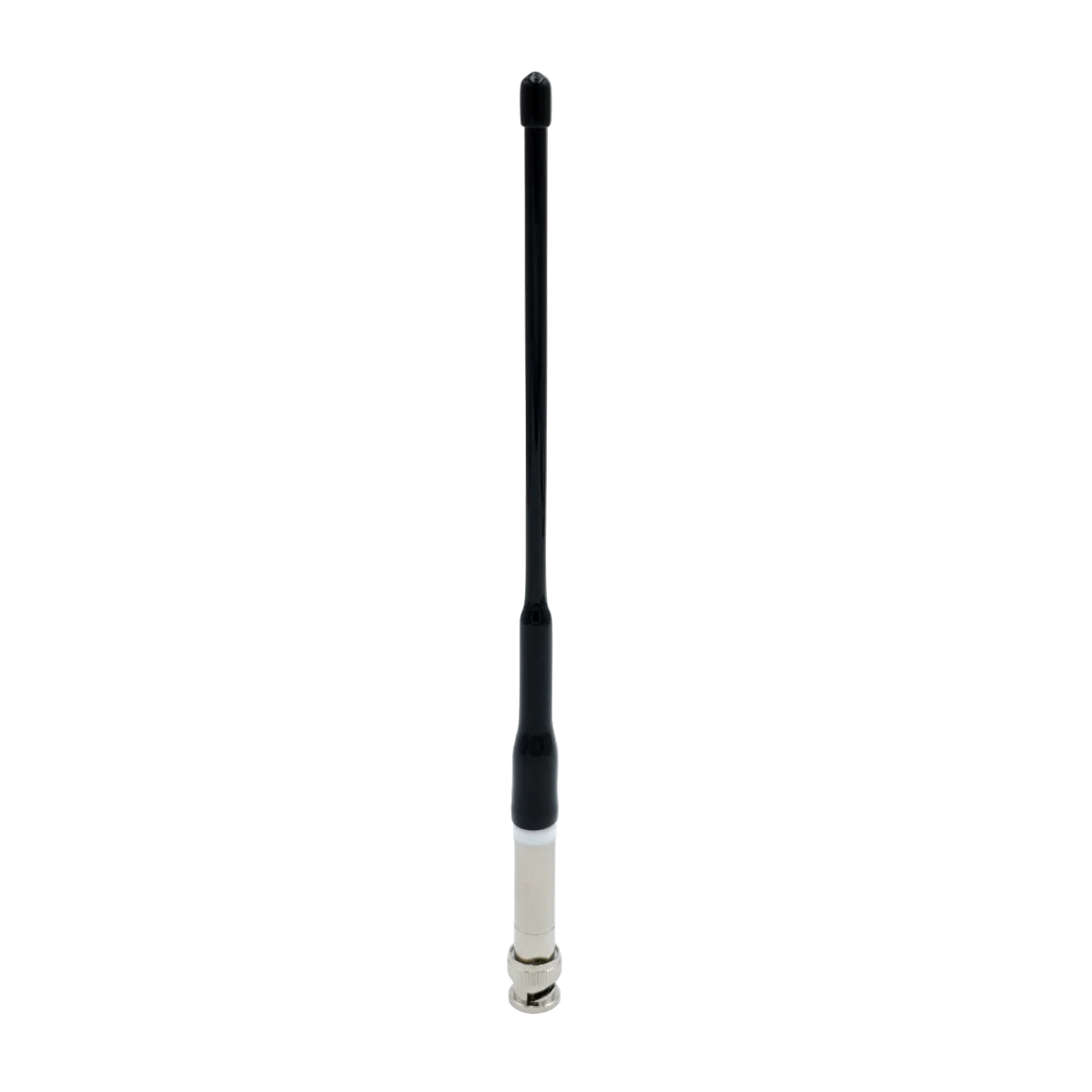

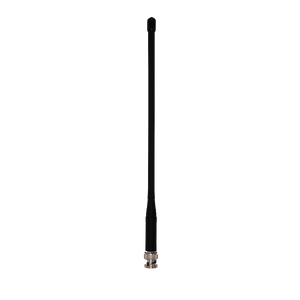

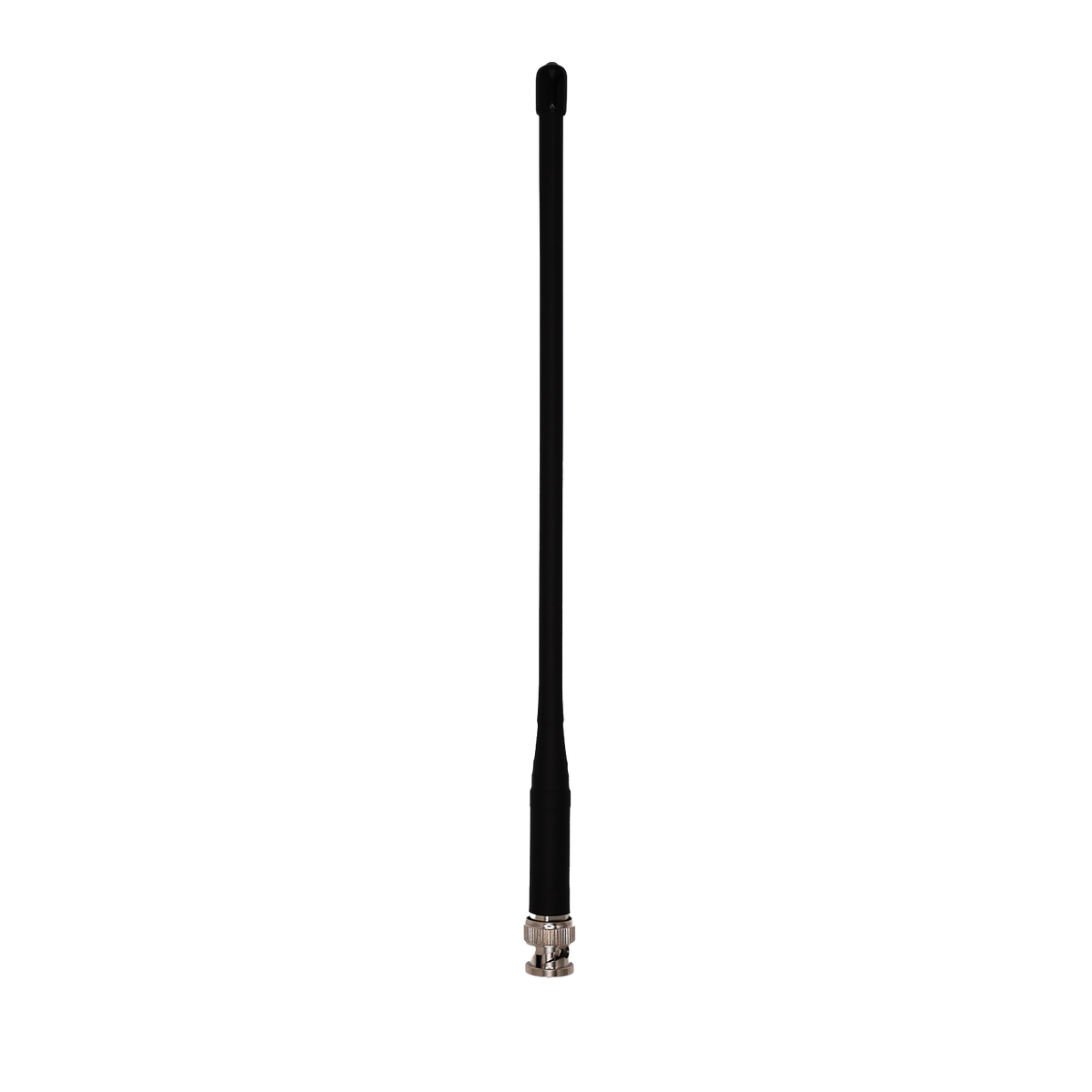

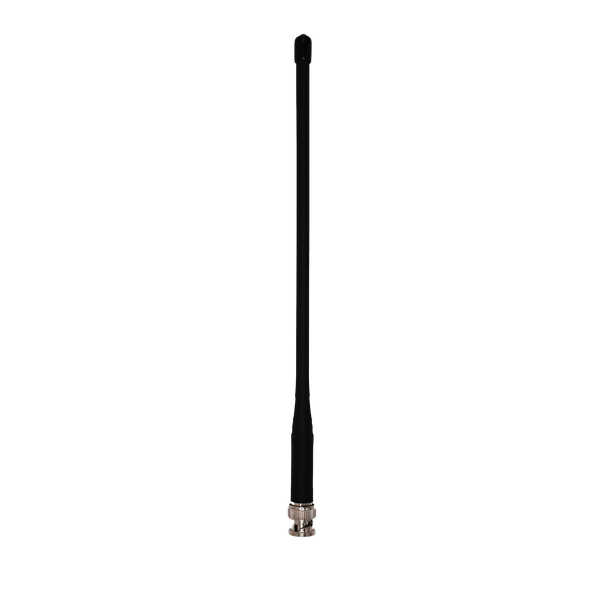

400-500 MHz UHF 1/2 Wave Flexible Antenna with BNC Connector

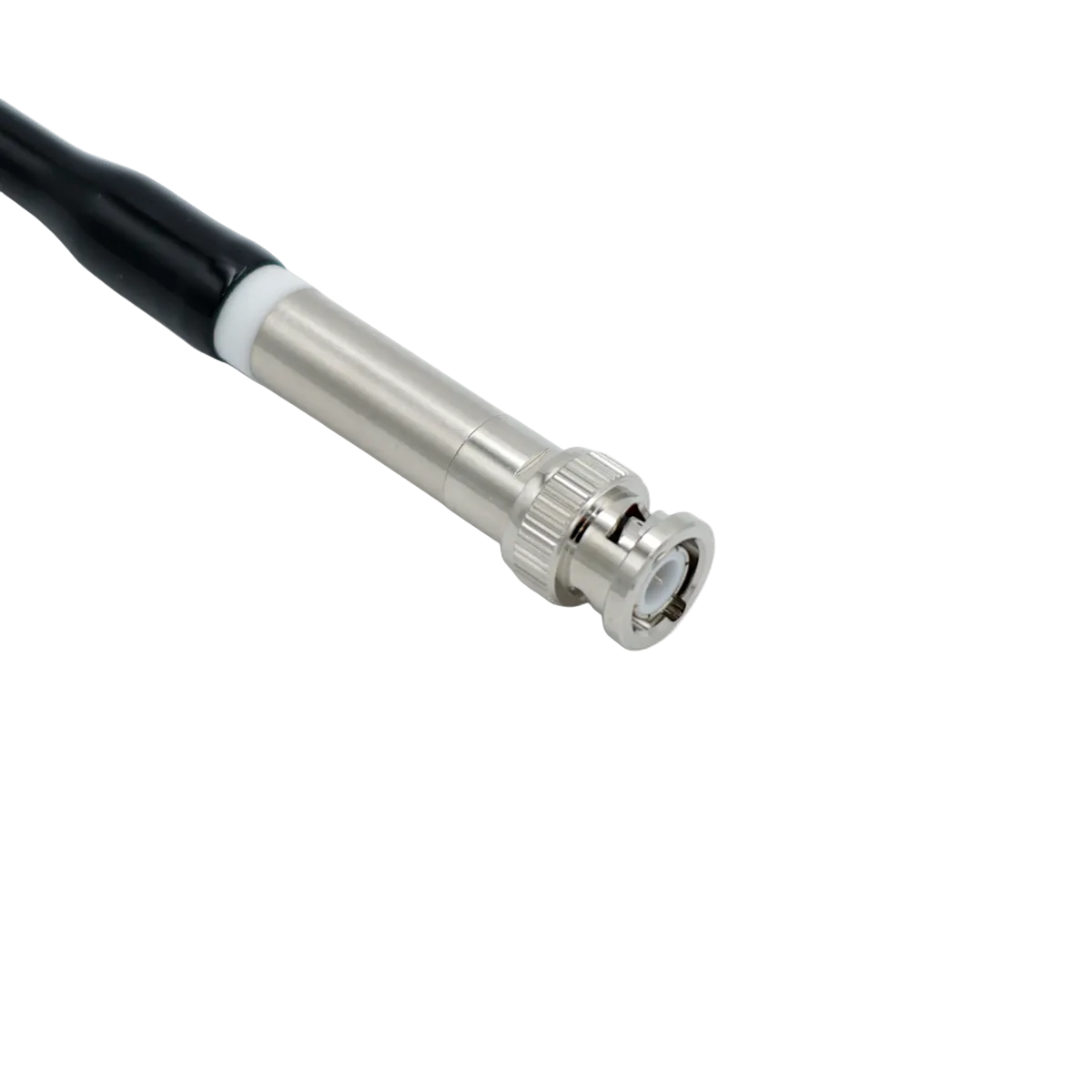

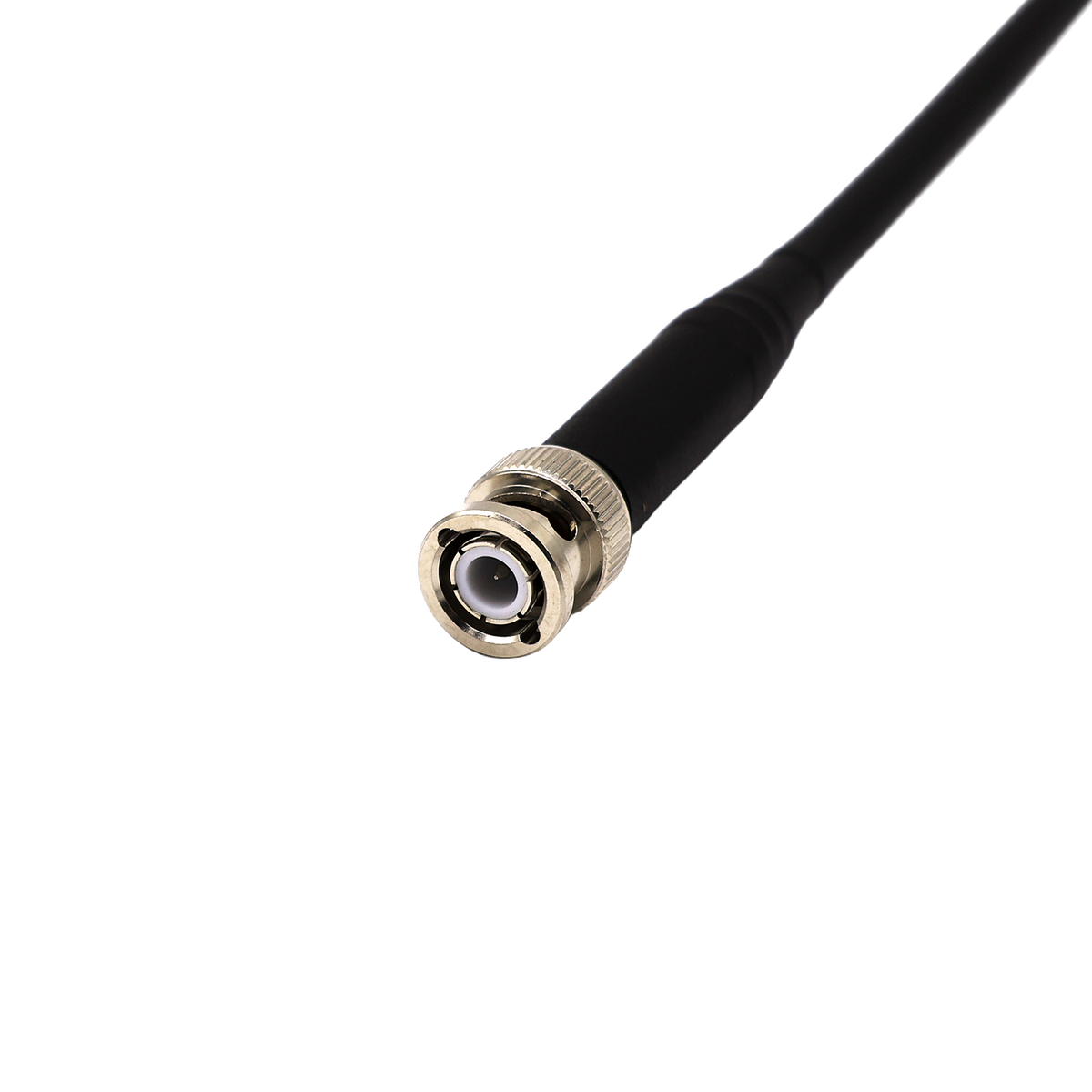

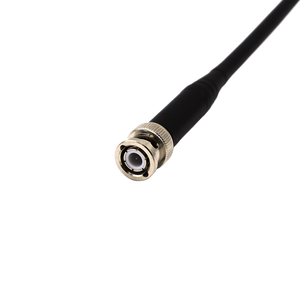

- High-performance 1/2 wave base-loaded UHF antenna, BNC Male connector
- 400-500 MHz for 450 MHz radios and Topcon equipments
- Featuring a flexible whip design
Technical Specifications
| SKU | R3DAN-450-SBM |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | BNC Male |
| Directional or Omni | Omni Directional |
| Working Frequency | 400-500 MHz |
| Antenna Category | UHF (380-600 MHz) |
| Gain | 1 dBi |
| Height/Length (inches) | 10.33 |
| Height/Length (mm) | 262.3 |
|---|---|
| Impedance | 50 ohms |
| OK for Outdoor Use | Indoor/Outdoor |
| IP Rating | IP65 |
| Operating Temp (celsius) | -40 to +85 |
| Thickness/Diameter (inches) | 2.52 |
| Thickness/Diameter (mm) | 13.8 |
| VSWR: < X: 1 | <1.5:1 |
