RBDM-G5W-17-SSS-B

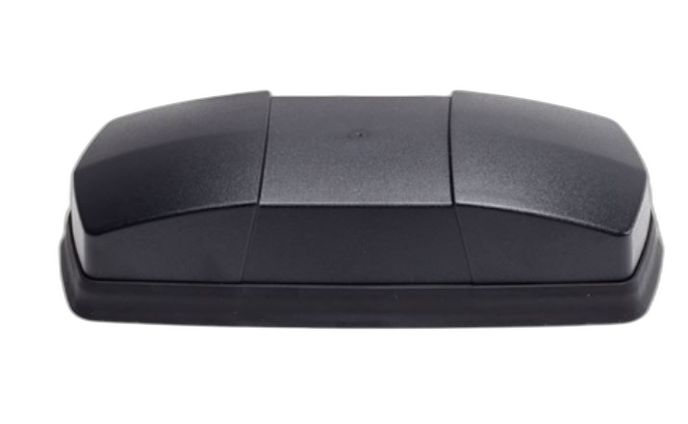

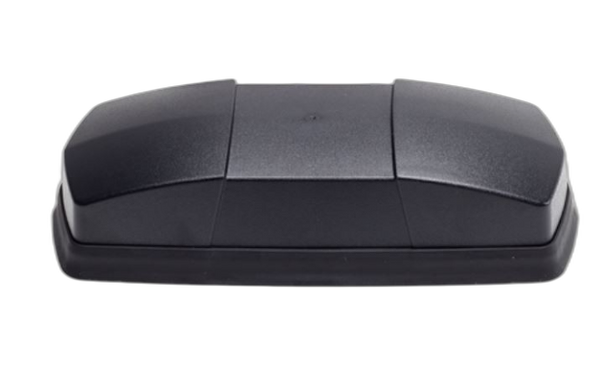

3 in 1 "Brick" Triple Pass Antenna-1x GPS/GNSS, 1x 4G/5G, 1x Wi-Fi 17 FT Cable Direct Mount
Configuration
- Configuration: 1× GPS/GNSS, 1× 4G/5G cellular, 1× Wi?Fi (triple-pass)
- Frequency range: Multi-band (cellular, Wi?Fi, GNSS)
- Connectors: SMA-Male on all ports or TNC on all Ports
- Cable length: 17 ft integrated coax leads
- Impedance / VSWR: 50 Ohm, ?2.0:1
- Cellular gain: ~3.3 dBi (low band) / ~5.2 dBi (mid/high band)
- Wi?Fi gain: ~5.46.3 dBi
- GNSS gain: ~1 dBic with integrated LNA (~30 dB)
- Dimensions: Approx. 8.0" L × 3.5" W × 1.8" H
- SMA version Compatible with: DS-ZEB-401, DS-ZEB-402, Getac B360, or Getac B360 PRO Havis Docking Station and Gamber Johnson MDTs
- TNC version Compatible with: Havis and Gamber Johnson MDTs
Technical Specifications
| SKU | RBDM-G5W-17-SSS-B |
|---|---|
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
|---|
