RBDM-G55-17-SSS-B
3 in 1 "Brick" Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables, SMA Male

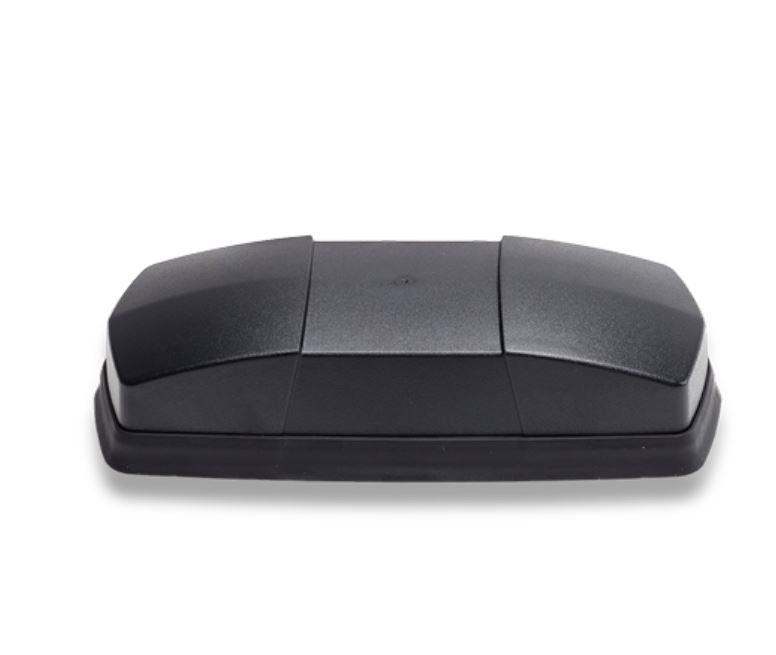

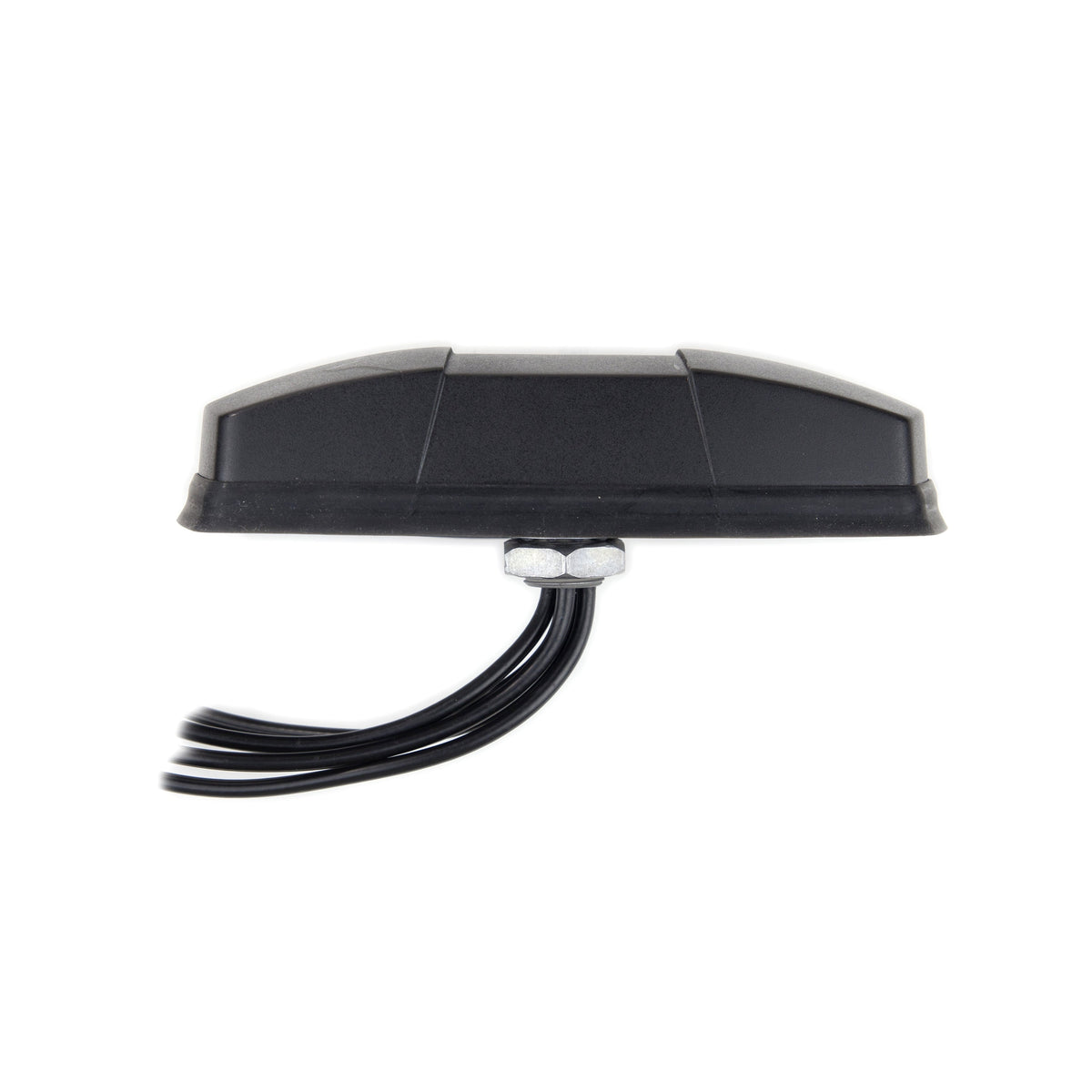

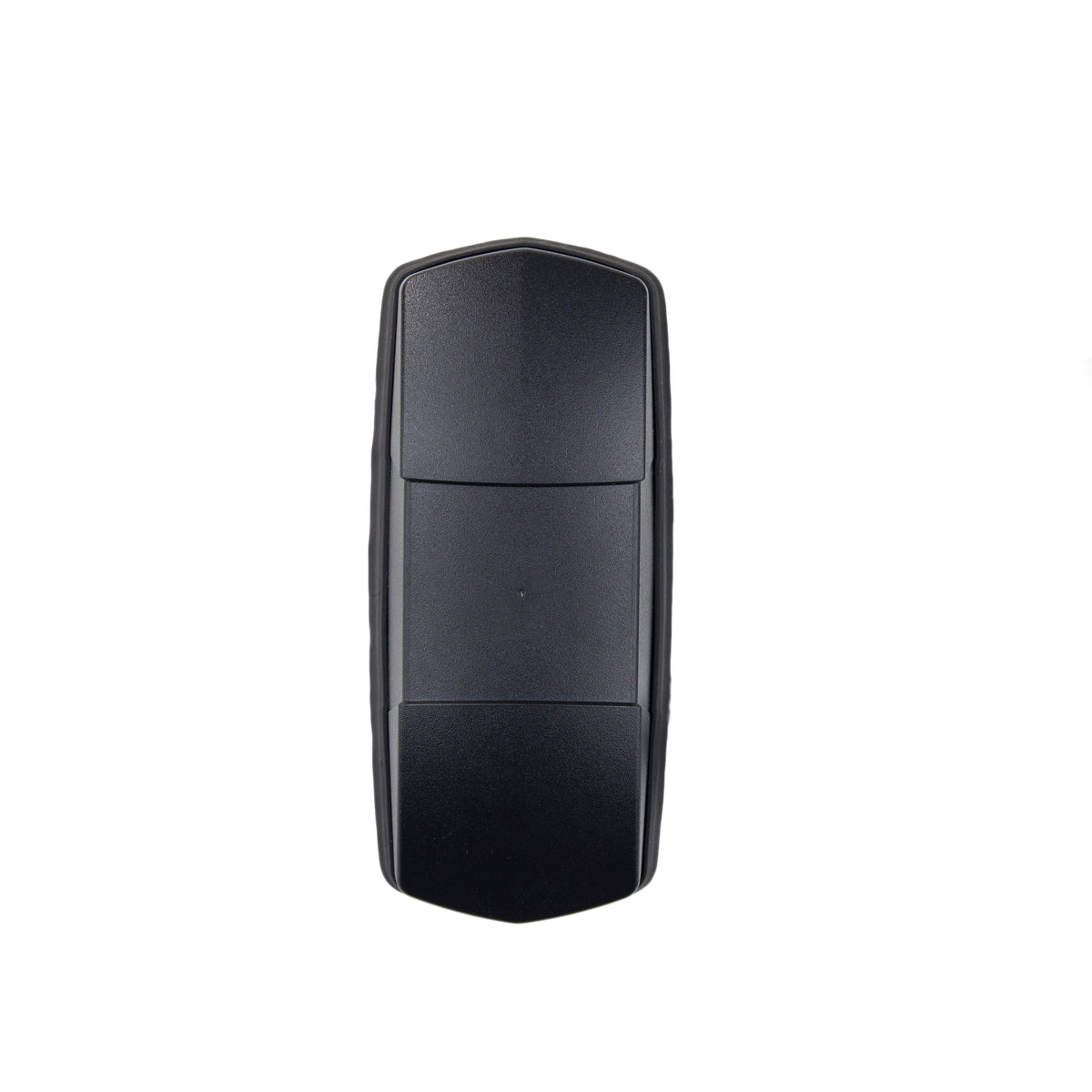

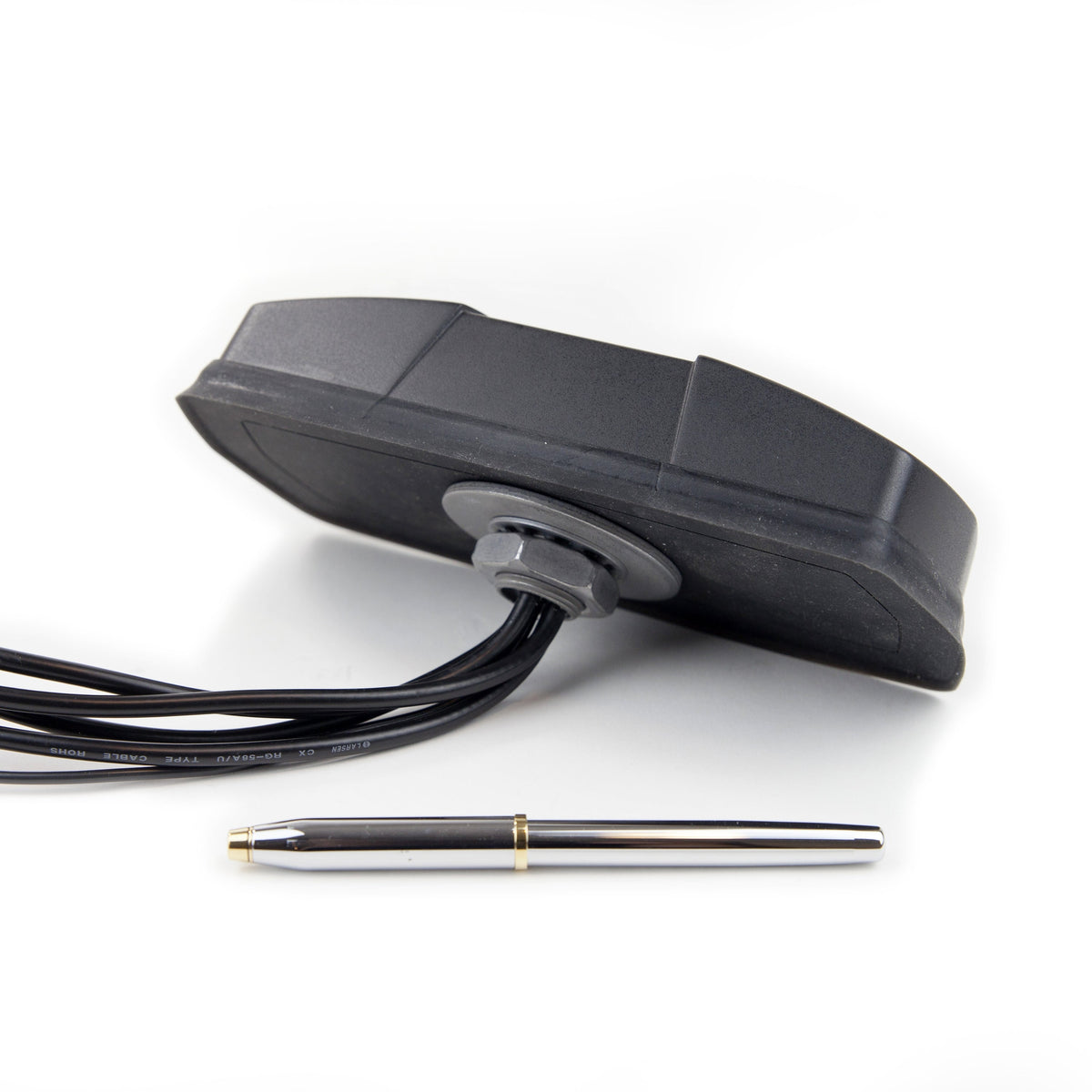

- A compact, Low profile, ultra-rugged direct-mount antenna designed for M2M and Vehicluar applications

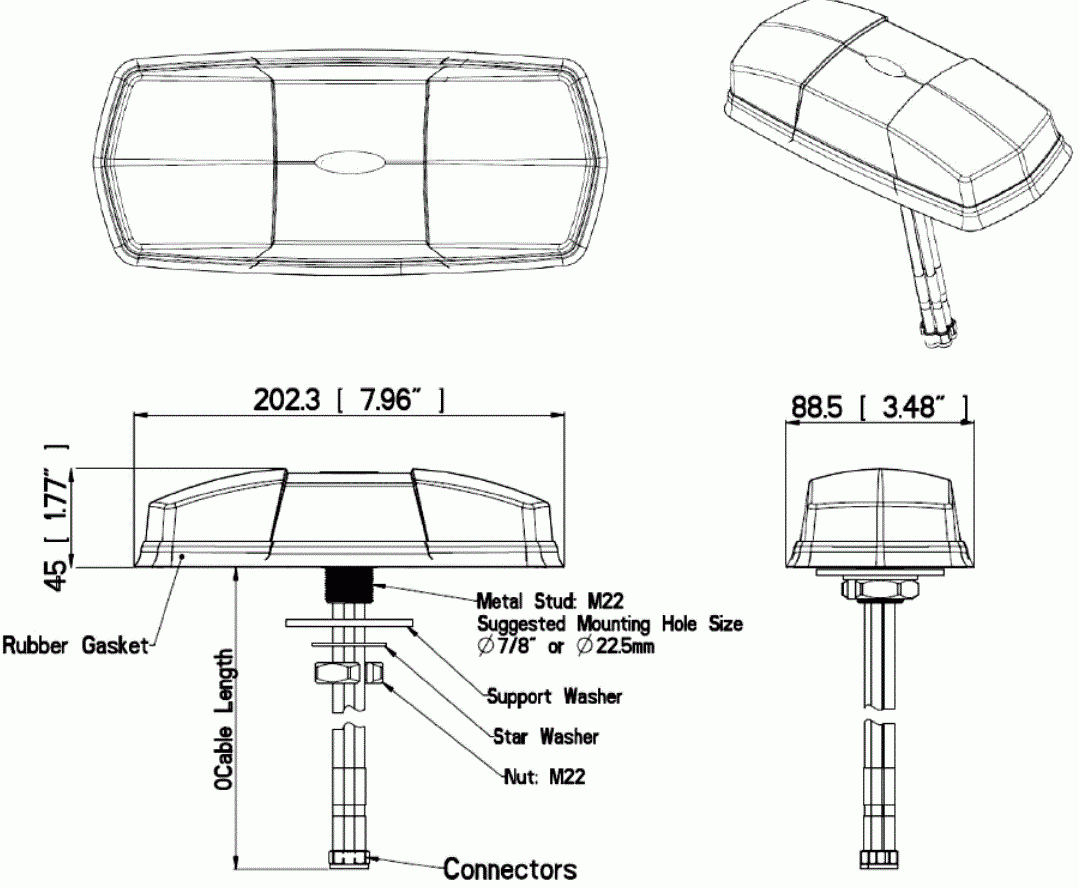

- The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches
- Meets all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from cellular carriers like AT&T, Verizon, Sprint & T-Mobile
- Sub-6 Frequency range is 600-6000 Mhz
- Perfect choice for utility vehicles, or public safety vehicles, including the Ford Explorer / Police Interceptor, Dodge Durango, Chevy Tahoe Etc.
- Optimized for: Sierra RV50, RV55, Cradlepoint IBR200
- USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
Technical Specifications
| SKU | RBDM-G55-17-SSS-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 204 |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 600-960 MHz |
| Working Frequency 2 | 1710-2690 MHz |
| Working Frequency 3 | 2400-2500 MHz |
| Working Frequency 4 | 5150-5925 MHz |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 2.5 dBi |
| Gain 2 | 3.1 dBi |
| Gain 3 | 3.2 dBi |
| Gain 4 | 3.1 dBi |
| Gain 5 | 30 dB |
| Ground Plane Required | No |
|---|---|
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
| Material | UV Stable, UL94 Radome |

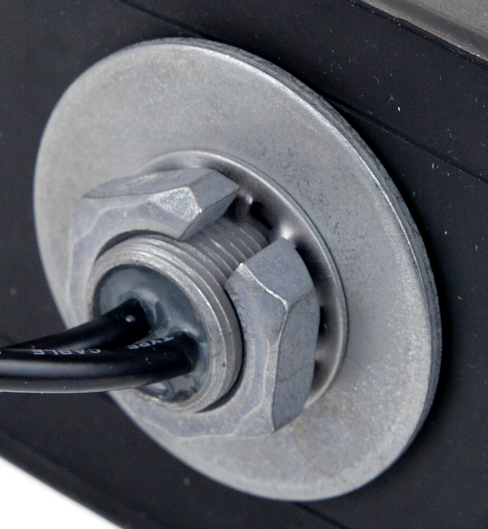

| Mount Style | Direct Mount |
| No Of Elements | 3 |
| Number of Cables | 3 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| VSWR: < X: 1 | <2:1 |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
