RBDM55SS17

2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17

  • Units Available: 971
List Price: Regular price $125.00
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17
2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RBDM55SS17

2x2 MiMo 5G, Band 71 Ready (4G-LTE) Cellular Antenna for Vehicular Communication, 17 Ft cable | RBDM-55-SS-17

  • Units Available: 971
List Price: Regular price $125.00
Ships in 10-12 Weeks

5G is here!!! The RFMAX "Brick" antenna # RBDM-55-SS-17 is a compact, ultra-rugged direct-mount antenna designed for Public Safety, Fleet Management and M2M machine-to-machine applications like Irrigation Control, Digital Signage, Surveillance, Lottery and ATM machines. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to meet all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. Sub-6 Frequency range is 600-6000 Mhz.

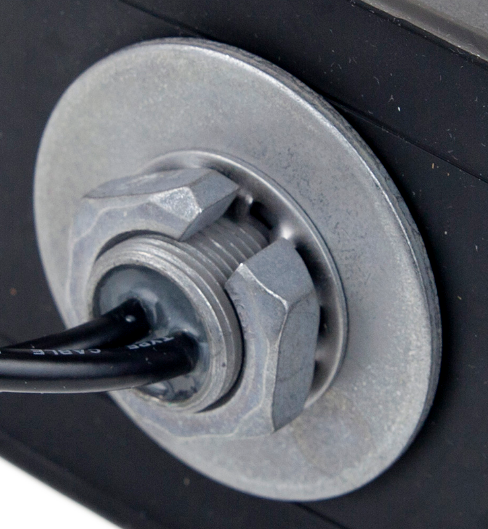

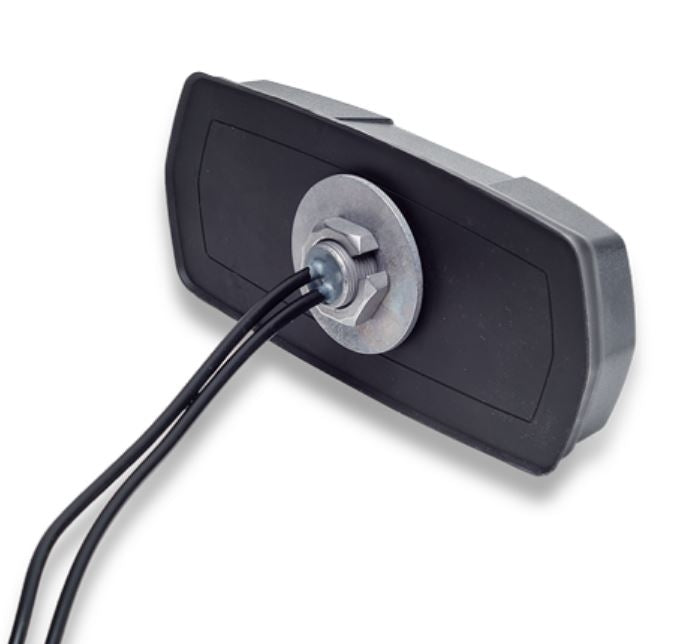

This unit was designed for use with MiMo 4G/LTE or 5G cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc. The "Brick" antenna is easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use. The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. This ensures that ATM machines are able to clear bank transactions in seconds, and digital signage is able to upload & download media content at maximum speed. The antenna includes dual 17 feet long, low loss cables with SMA male connectors.

Description BlueArrow Created with Sketch.

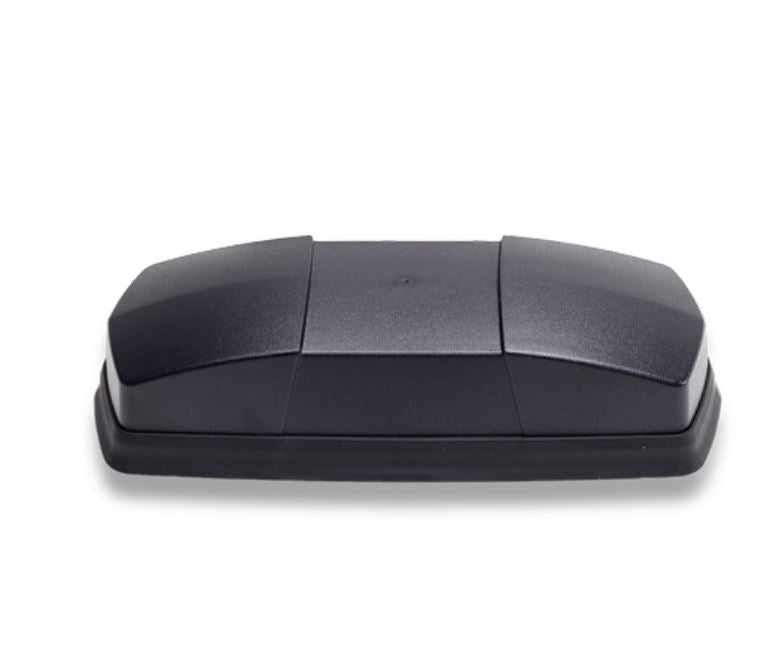

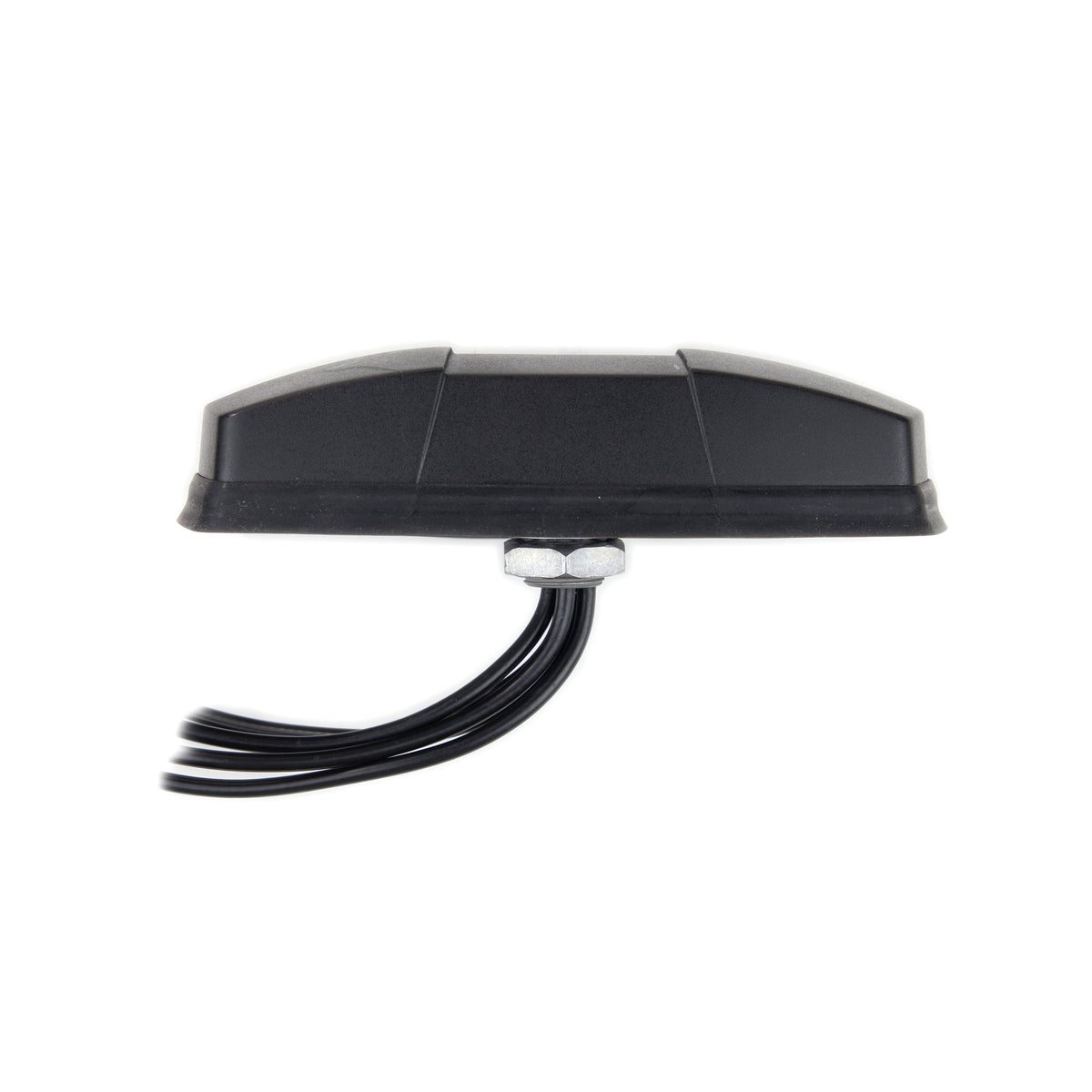

RFMAX "Brick" Antenna

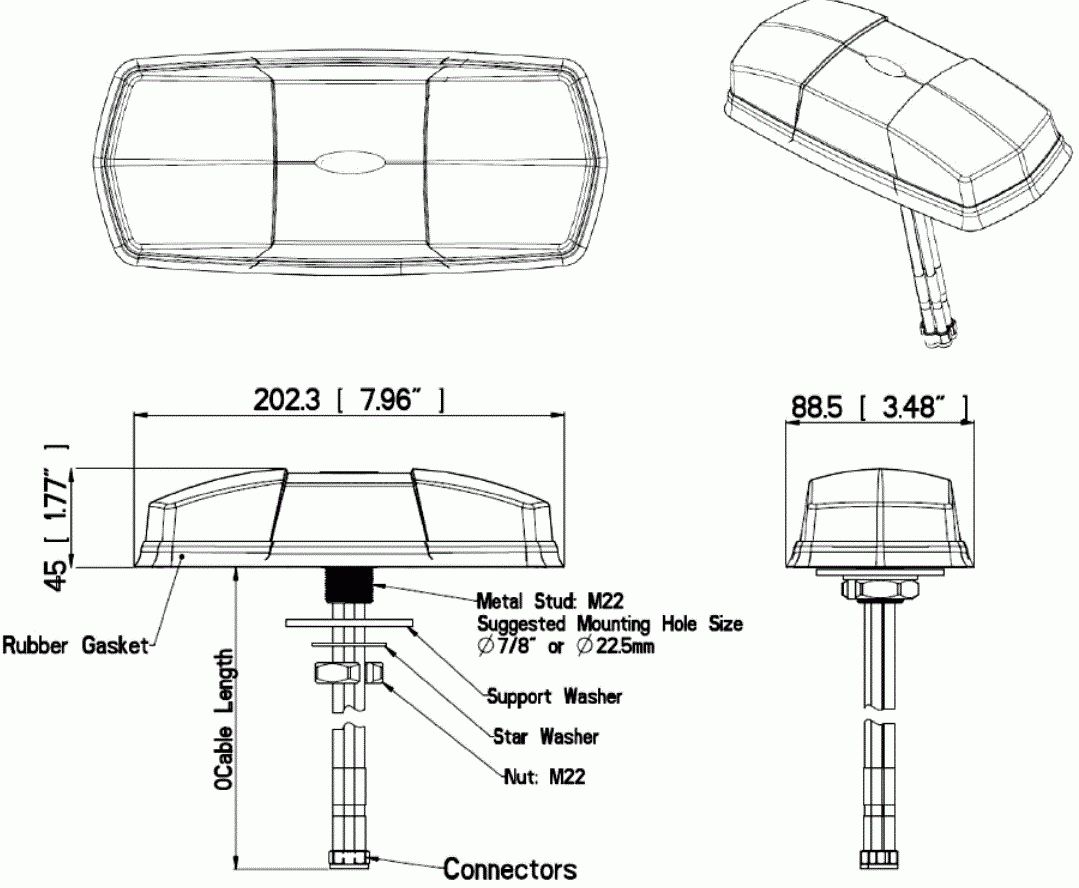

  • Size: 7.9 x 3.4 x 1.8 Inches
  • Out-performs ALL similar antennas
  • Elements: Dual/MiMo 4G/LTE & 5G Cellular (Sub-6, Band 71, CBRS)
  • High Gain at all frequencies for maximum connection speeds
  • Designed for Indoor or Outdoor Installations (IP67 rated)
  • Easy to install, Rugged & 100% Vandal Proof
  • Approved for use with all major carriers: AT&T, Verizon, Sprint
  • Optimized for Cradlepoint, Sierra Wireless, Digi, etc.

Documents BlueArrow Created with Sketch.

Specifications BlueArrow Created with Sketch.

color Black
connector 1 SMA-Male
frequency range 4G/LTE/5G (600-6000 MHz)
ip rating IP65
lenght (in) 7.9
material UV Stable, UL94 Radome
mfg part# RBDM-55-SS-17
operating temp (celsius) -40 to +85 C
technology CELLULAR or WIFI
thick (in) 1.8
type "Brick" Multi-Element Antenna
weight (lbs) 2
width (in) 3.4
