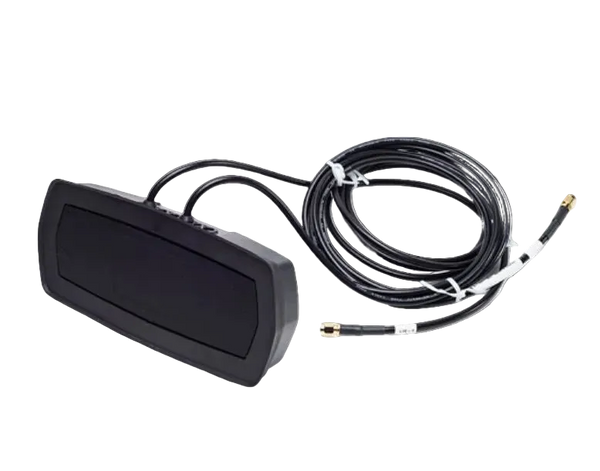

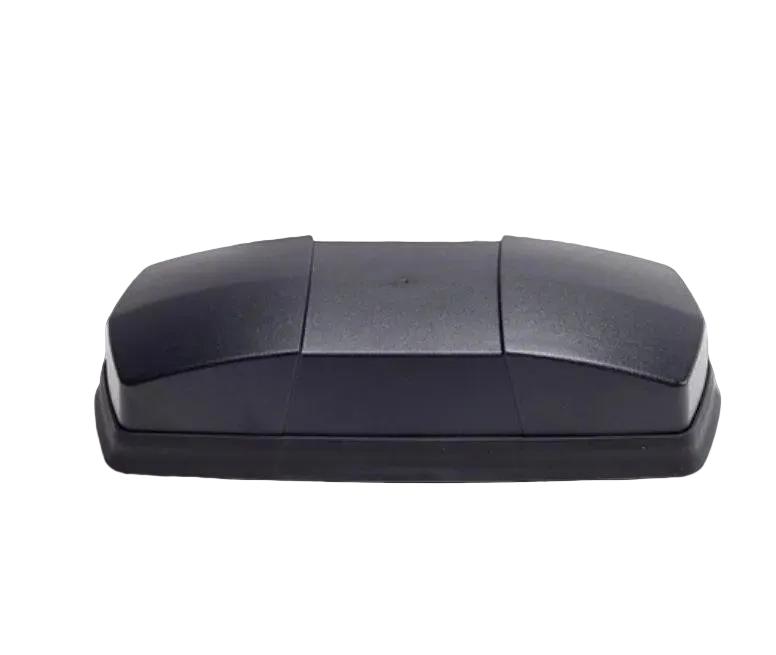

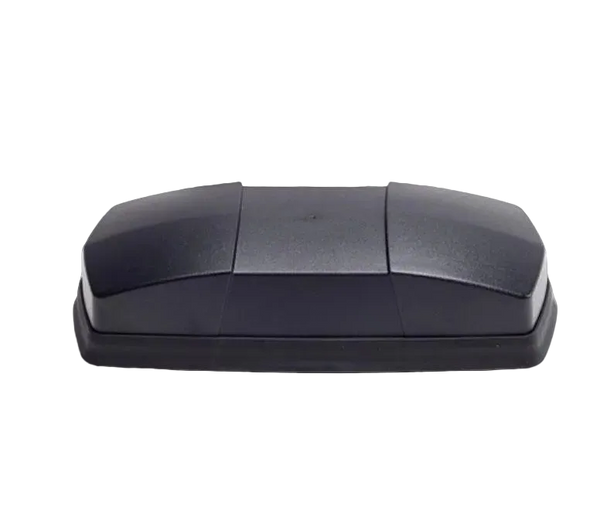

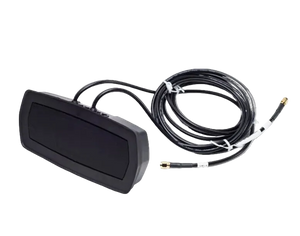

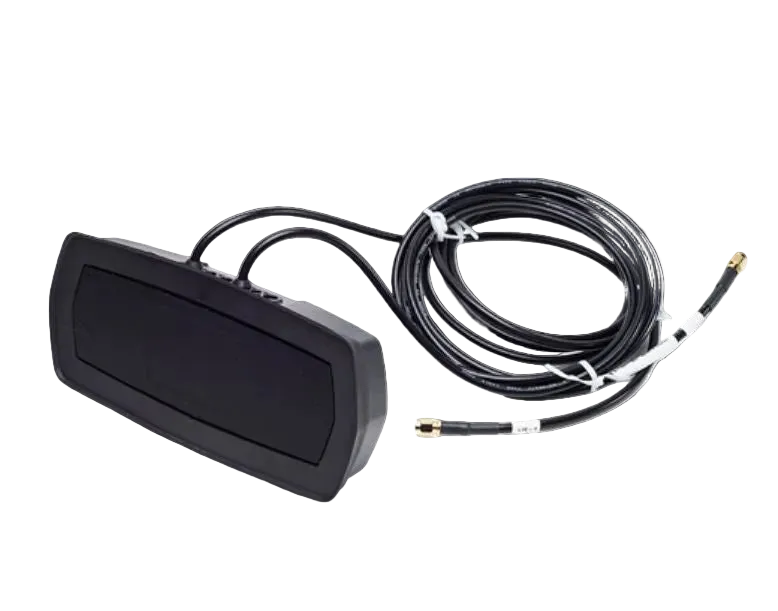

RBMM-55-SS-6
2x2 MiMo 5G/4G-LTE Cellular "Brick" Antenna for Machine To Machine Communication & SMA Connectors, Magnetic Mount
Configuration
- A compact, ultra-rugged Mag-mount antenna designed with SMA Male connectors
- Designed for M2M machine-to-machine applications like Irrigation Control, Digital Signage, Surveillance, Lottery and ATM machines
- The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches
- Meets all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from cellular carriers like AT&T, Verizon, Sprint & T-Mobile
- Sub-6 Frequency range is 600-6000 Mhz
- Compatible with MiMo 4G/LTE or 5G cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc
- Easy to deploy and has a low chances of vandalism due to it low profile, IP67 rated for year-round indoor or outdoor use
- Available in different lengths of cable
Technical Specifications
| SKU | RBMM-55-SS-6 |
|---|---|
| Manufacturer | RFMAX |
| Cable Type | Low Loss 195 |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 600-6000 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | 1.5 dBi @ 617-960 MHz |
| Gain 2 | 4.5 dBi @ 1710-2690 MHz |
| Gain 3 | 6.3 dBi @ 5150-5925 MHz |
| Ground Plane Required | No |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| IP Rating | IP65 |
|---|---|
| Material | UV Stable, UL94 Radome |
| Mount Style | Magnetic Mount |
| No Of Elements | 2 |
| Number of Cables | 2 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UL-94 |
| Polarity | Linear |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| VSWR: < X: 1 | <2:1 |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
