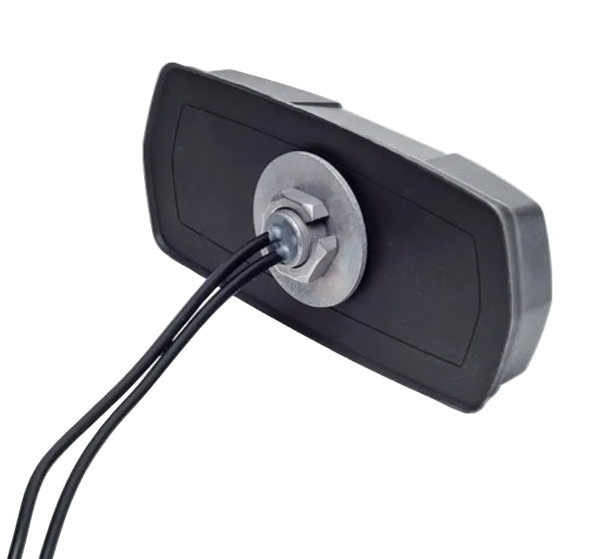

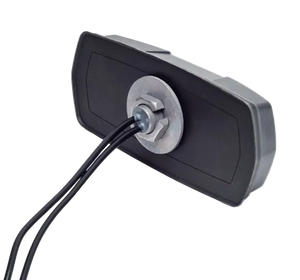

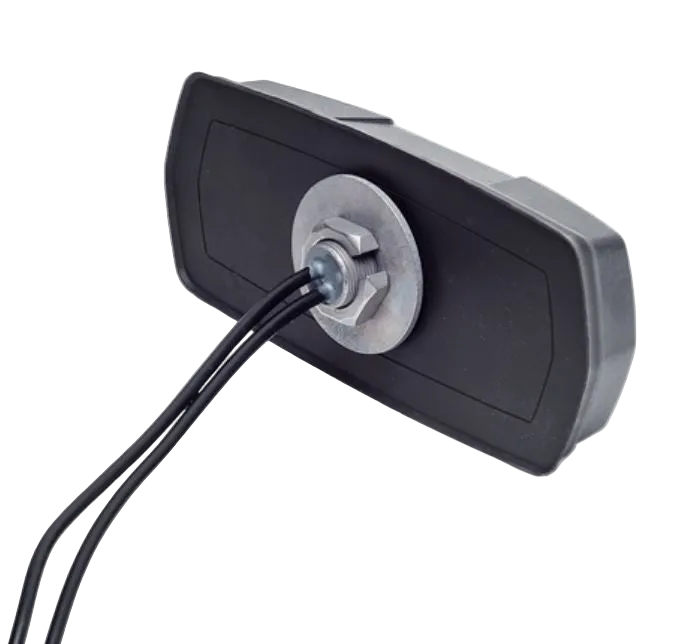

RBDM-55-SS-1
2x2 MiMo 5G/4G-LTE Cellular "Brick" Antenna for Machine To Machine Communication & SMA Connectors, Direct Mount
Configuration
- A compact, ultra-rugged direct-mount antenna designed with SMA Male connectors
- Designed for M2M machine-to-machine applications like Irrigation Control, Digital Signage, Surveillance, Lottery and ATM machines
- The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches
- Meets all specifications of 3G, 4G/LTE and 5G (including Band 71 and CBRS) from cellular carriers like AT&T, Verizon, Sprint & T-Mobile
- Sub-6 Frequency range is 600-6000 Mhz
- Compatible with MiMo 4G/LTE or 5G cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc
- Easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use
- Available in different lengths of cable
Technical Specifications
| SKU | RBDM-55-SS-1 |
|---|---|
| Manufacturer | RFMAX |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 MHz |
| Working Frequency 2 | 1710-6000 MHz |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Gain | 3.3 dBi @ 617-960 MHz |
| Gain 2 | 5.2 dBi @ 1710-6000 MHz |
| Ground Plane Required | No |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| OK for Outdoor Use | Outdoor |
|---|---|
| IP Rating | IP67 |
| Material | UV Stable, UL94 Radome |
| Mount Style | Direct Mount |
| No Of Elements | 2 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| Polarity | Linear |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| VSWR: < X: 1 | <2.2:1 (Cell) |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
