R902-11-B-F-SSF

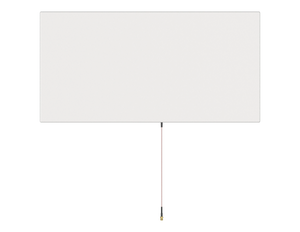

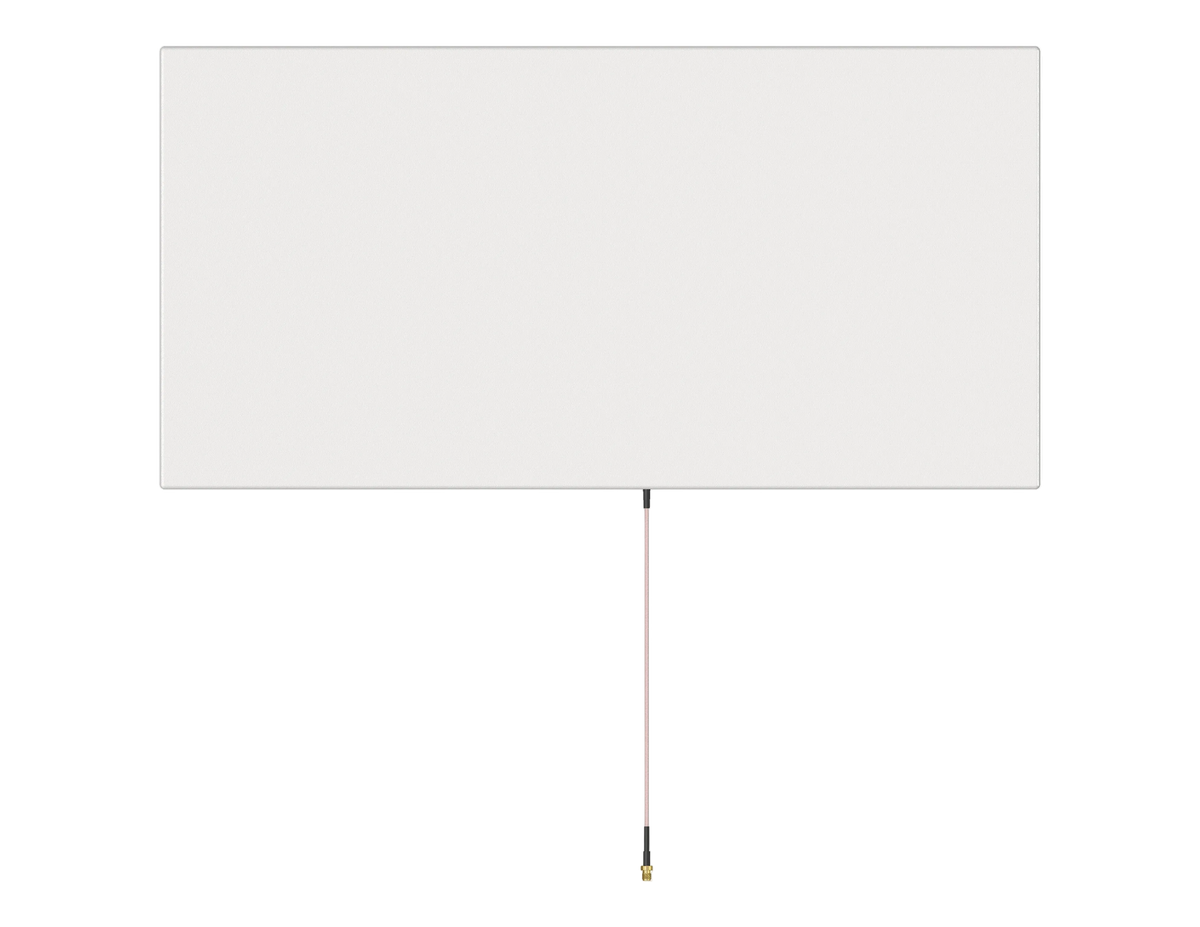

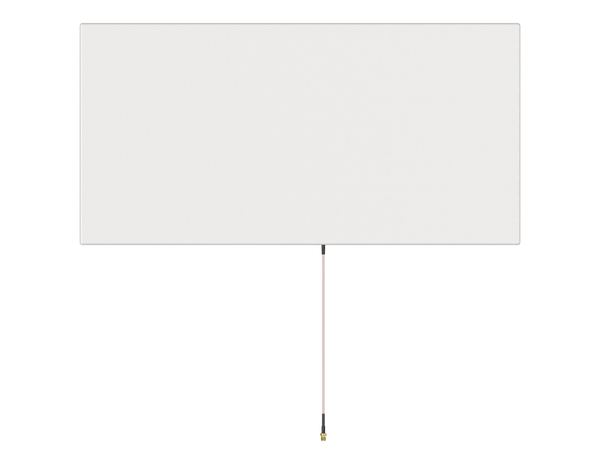

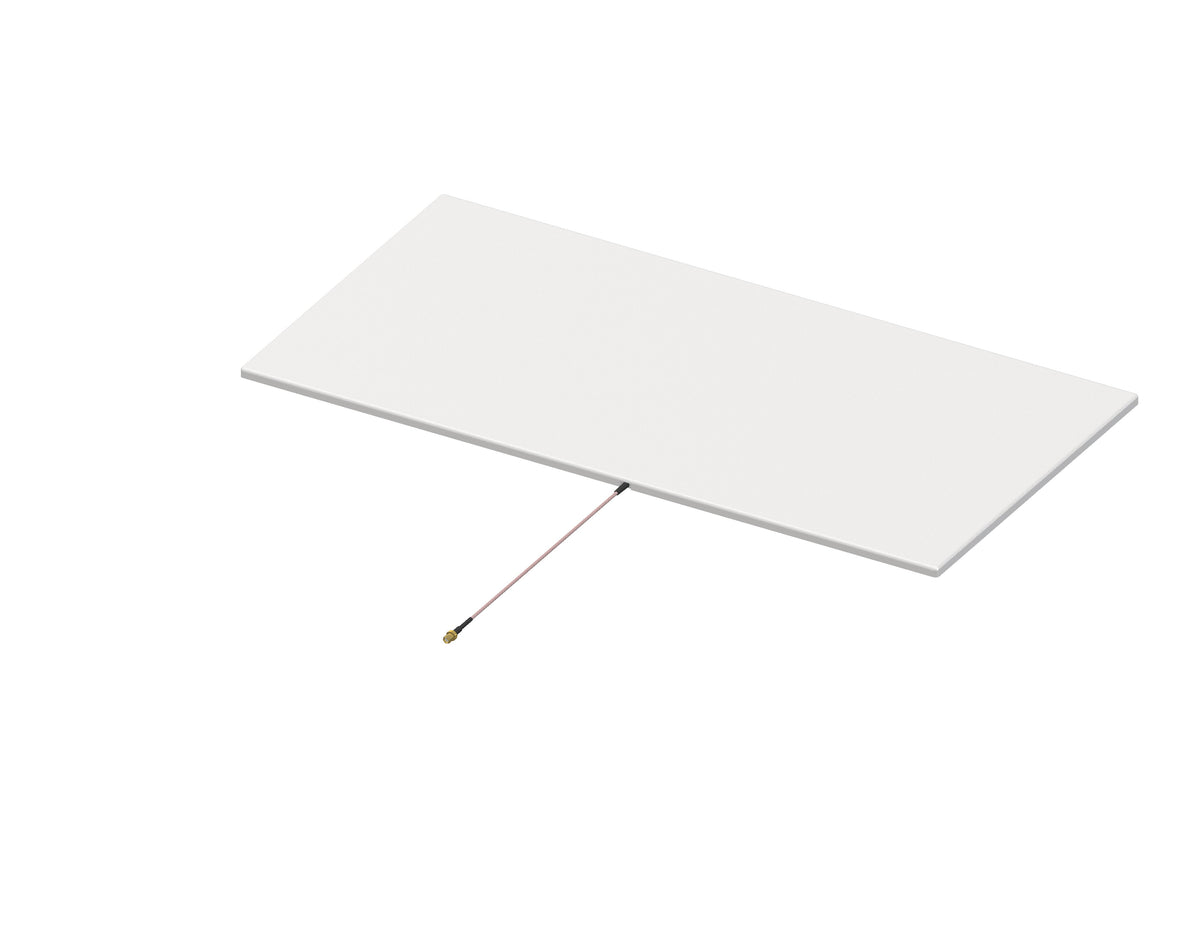

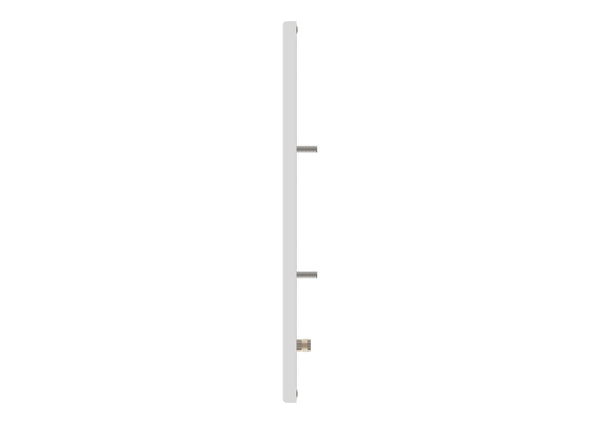

24x12 Inch High-performance, Circularly Polarized, RFID antenna FCC 902-928 MHz
Configuration
- It delivers precise and reliable tag detection, even in high-density RFID environments
- FCC 902-928 MHz Circular Polorized, 10.5 dBiC gain, ensuring extended read ranges of up to 10 meters (33 feet)
- Its multi-element array minimizes signal distortion, making it ideal for industrial portals, warehouse tracking, and other high-density RFID applications

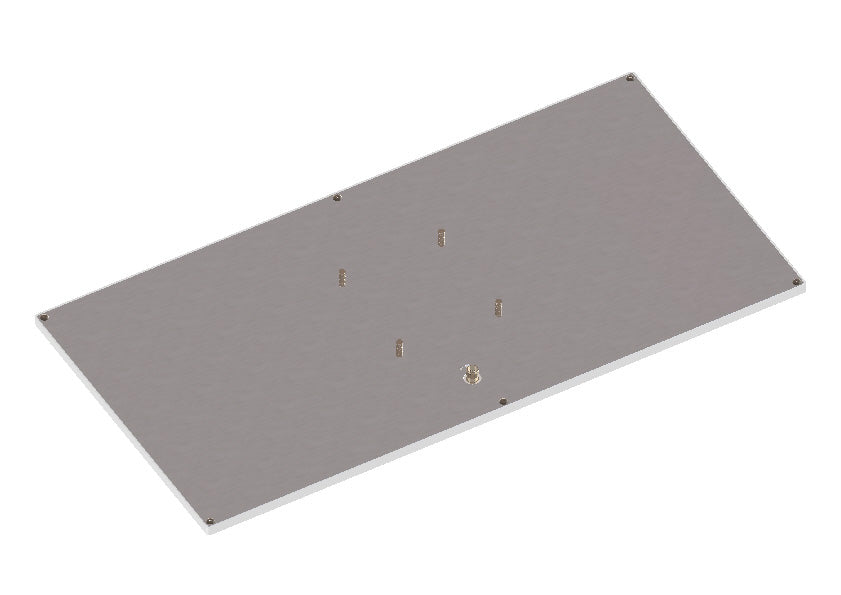

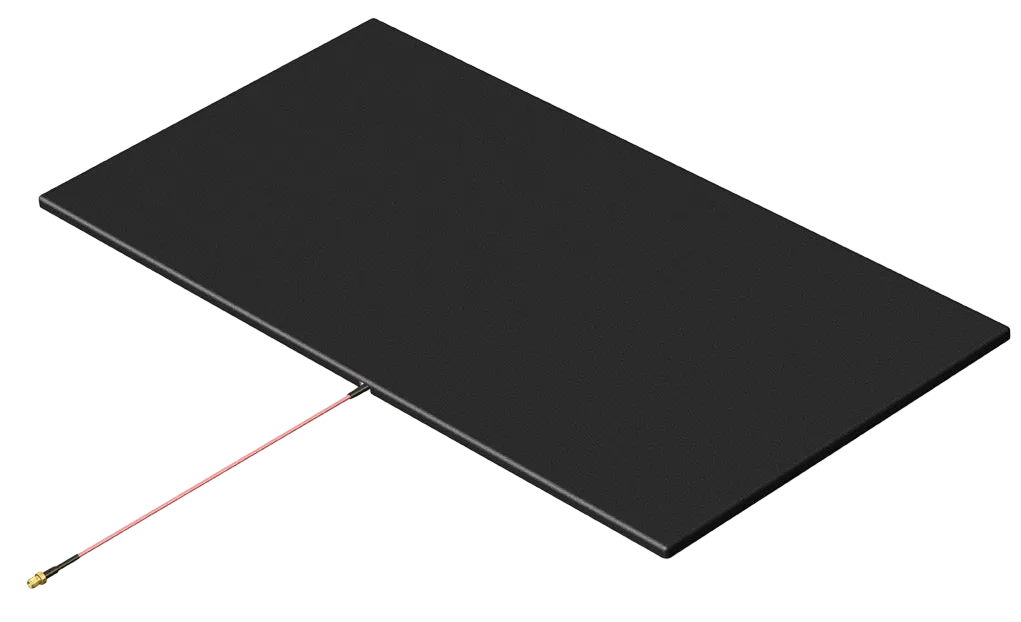

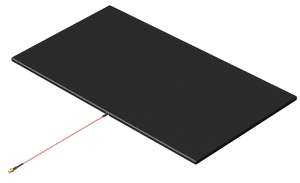

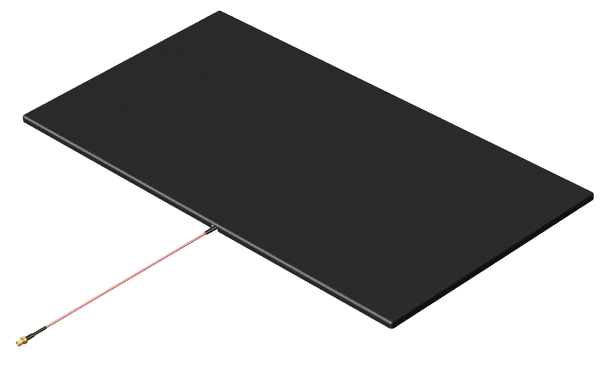

- Available in White with VESA mounting Studs & Fixed RPTNC Female connector or White/Black with Flush mount & SMA Female
Technical Specifications
| SKU | R902-11-B-F-SSF |
|---|---|
| Manufacturer | RFMAX |
| Cable Type | RG-316 |
| Directional or Omni | Directional |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Gain | 10.5 dBic |
| Height/Length (inches) | 23.78 |
| Height/Length (mm) | 604 |
| IP Rating | IP54 |
| Length pt240 cables | 10.6" |
| Material | Flame Retardant ABS |
|---|---|
| Max Input Power (W) | 3 Watts |
| Operating Temp (celsius) | -30°C to + 60°C |
| Polarity | Circular |
| Thickness/Diameter (inches) | 0.34 |
| Thickness/Diameter (mm) | 8.6 |
| VSWR: < X: 1 | 1.4:1 Typical |
| Weight (grams) | 1790 |
| Weight (lbs) | 3.9 |
| Width (inches) | 11.97 |
| Width (mm) | 304 |
