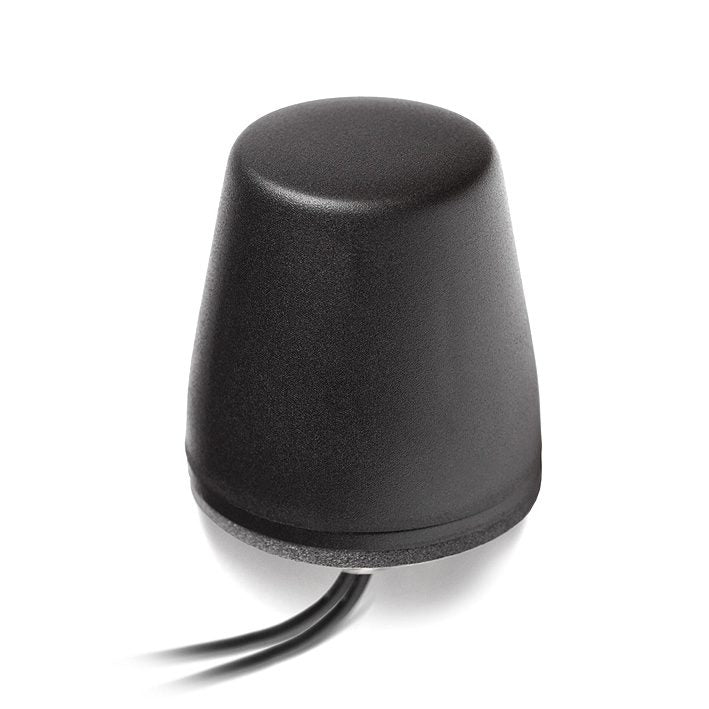

RMSB-G5-10-SS-B
2-in-1 Mini Shot Glass Antenna, 1x 5GNR & 1x GNSS, 10 Feet LL-100 cable with SMA Male Connectors
- Wideband 5G NR Frequency Range: 617-5925 MHz
- GPS/Glonass Included
- High Performance Antenna Design
- Small Footprint for Aesthetically Pleasing Installations: 2" Diameter x 2" Height

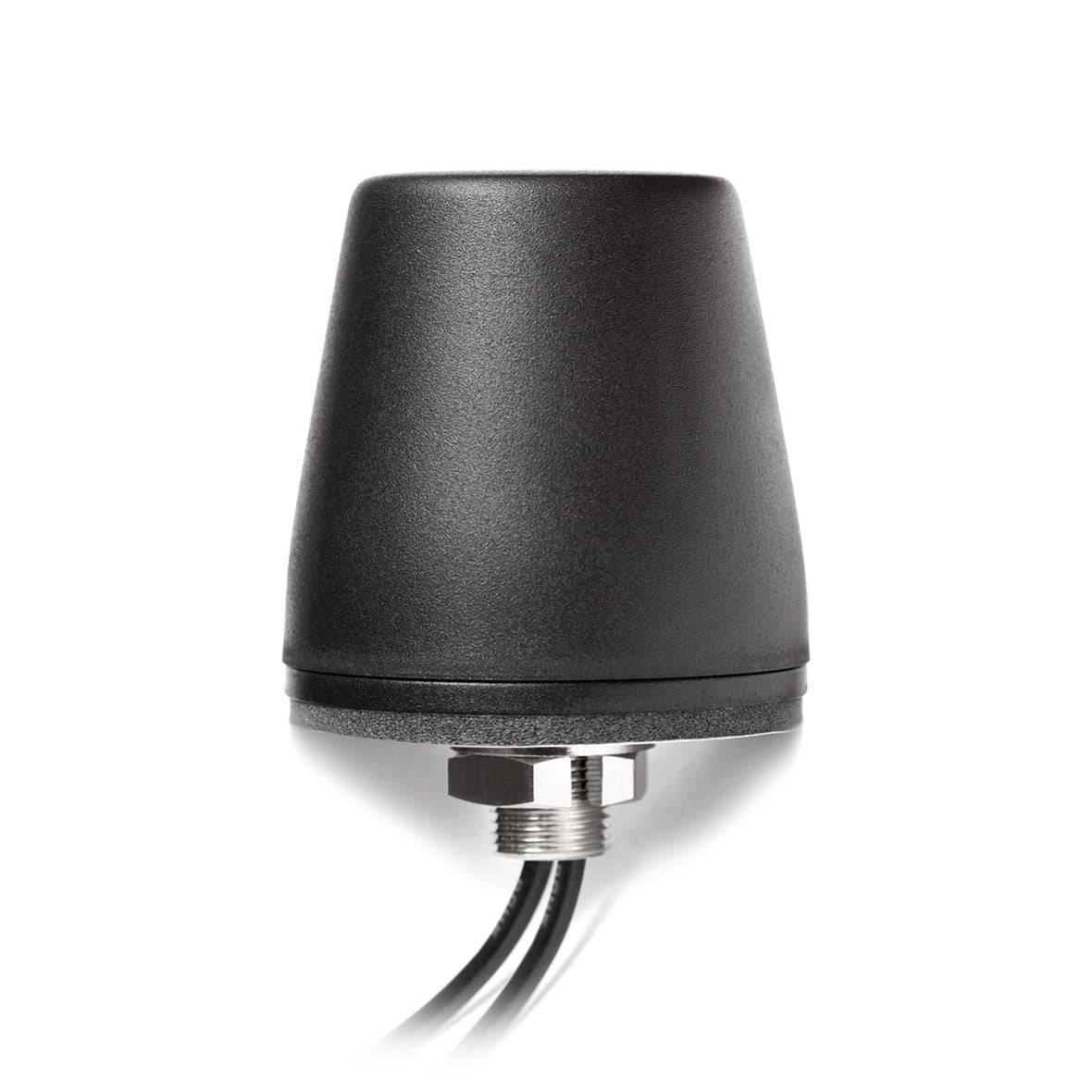

- Vandal Resistant, Screw Mount
Technical Specifications
| SKU | RMSB-G5-10-SS-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 120 |
| Cable Type | LL-100 |
| Color | Black |
| Connector 3 | SMA-Male |
| Connector Type | SMA Male, custom configuration upon request |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 |
| Working Frequency 2 | 1427-2690 |
| Working Frequency 3 | 3300-5000 |
| Working Frequency 4 | 5150-5925 |
| Working Frequency 5 | 1575/1602 - GNSS |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 0.5-2.9 dBi |
| Gain | 2.9 dBi |
| Gain 2 | 2.1 dBi |
| Gain 3 | .5 dBi |
|---|---|
| Gain 4 | 1.0 dBi |
| Ground Plane Required | Yes |
| Height/Length (inches) | 2 |
| Height/Length (mm) | 50.8 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67, IP69 |
| Material | ASA |
| Max Input Power (W) | 25W |
| No Of Elements | 2 |
| Number of Cables | 2 |
| Operating Temp (celsius) | -40 to +85 |
| VSWR: < X: 1 | <2:1 |
| Weight (lbs) | 1 |
| Width (inches) | 1.96 |
| Width (mm) | 50 |
