RBMM-WW-SS-6

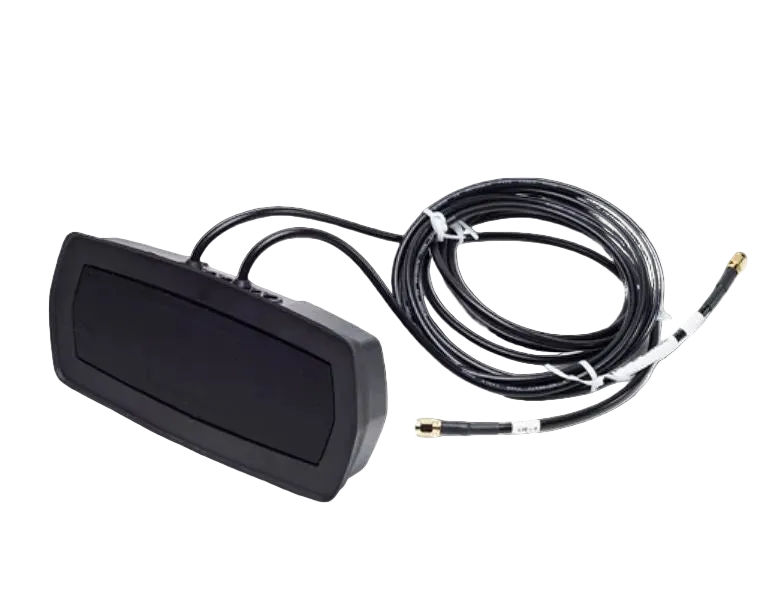

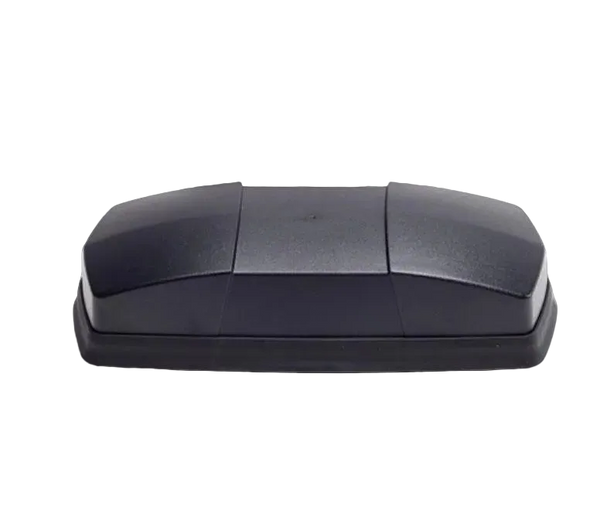

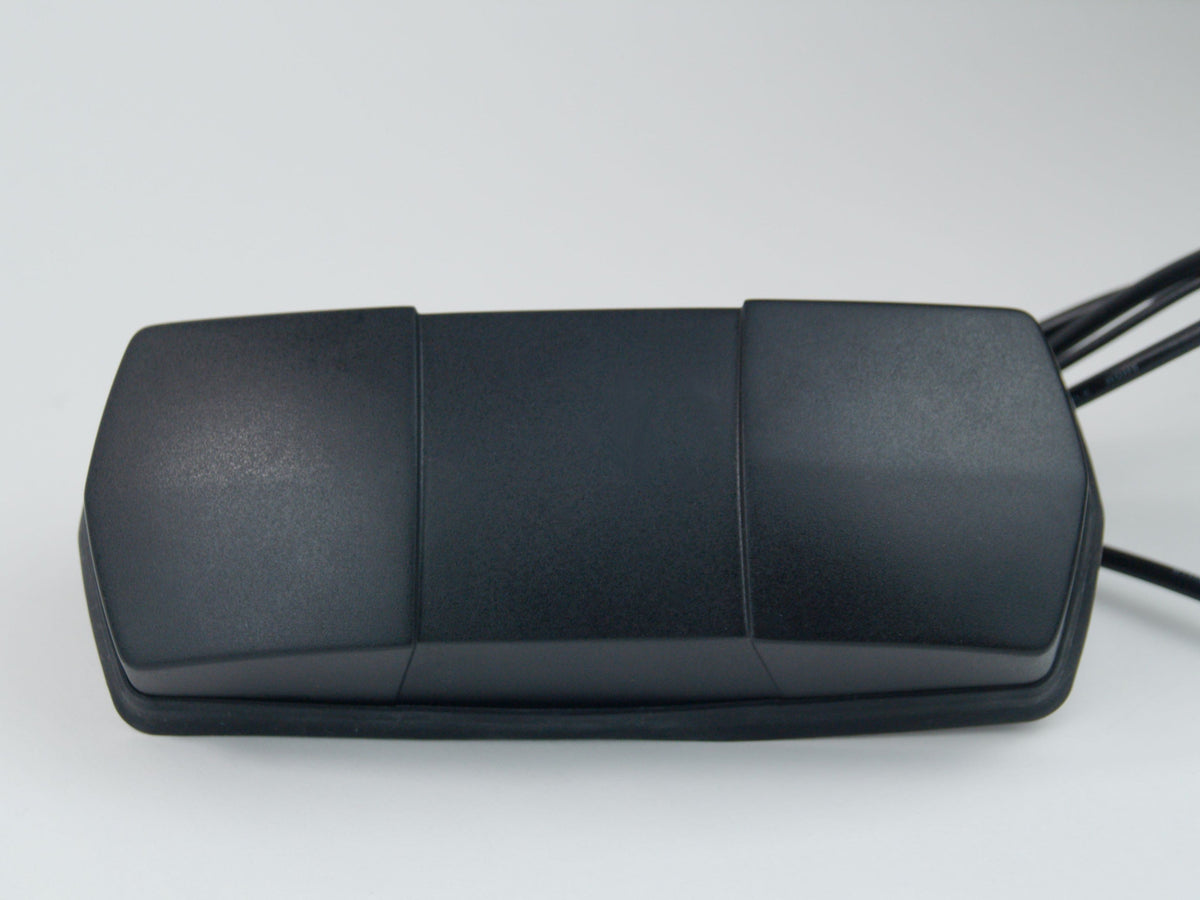

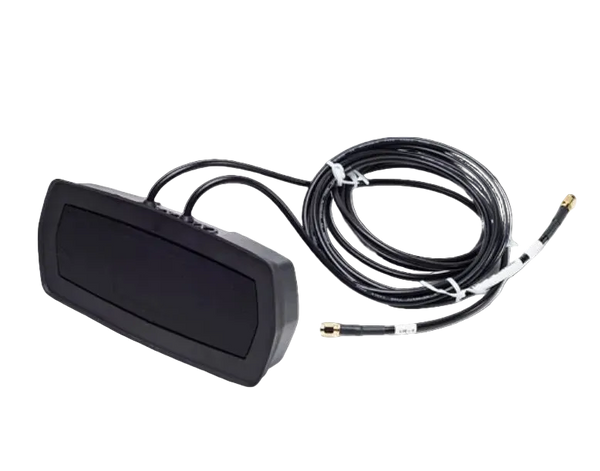

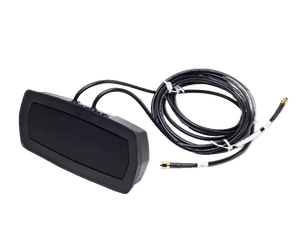

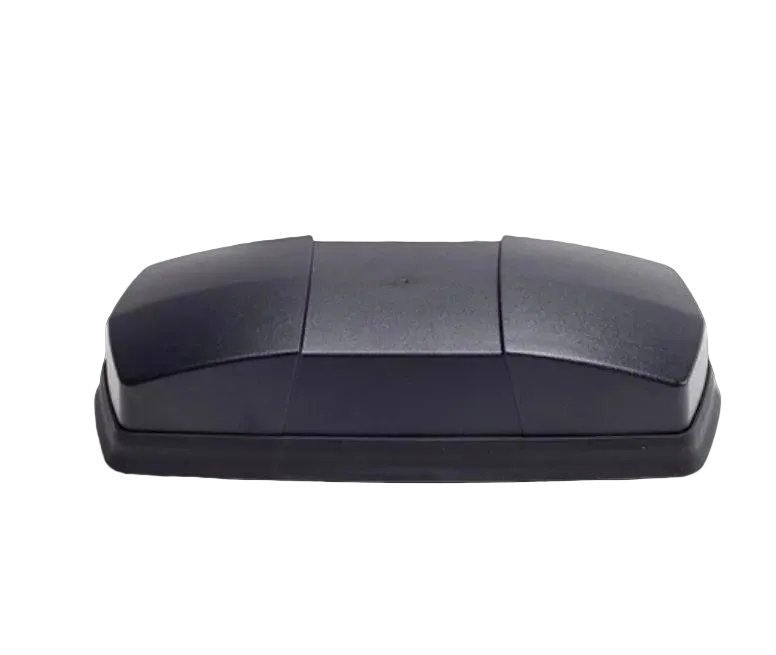

2 in 1 2x2 MiMo WiFi & WiFi6e Mag mount Antenna for forklifts Rugged Tablets and computers
Configuration
- This is an external mag-mount antenna with dual WiFi elements for MiMo connectivity.
- Size: 7.9 x 3.4 x 1.8 Inches
- This model is optimized for use with rugged, vehicle-mounted computers on forklifts, yard trucks, cranes, etc
- The RP SMA version is compatible with Zebra: VC80, VC80x, VC8300, Ruggon: X10 etc
- The SMA version is compatible with Honeywell Thor VM1, VM1A, VM2, and VM3, Glacier Kodiak, and JLT JLT6012
Technical Specifications
| SKU | RBMM-WW-SS-6 |
|---|---|
| Manufacturer | RFMAX |
| Cable Type | Low Loss 195 |
| Color | Black |
| Connector 1 | SMA-Male |
| Connector 2 | SMA-Male |
| Directional or Omni | Omnidirectional |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Gain | 1.5 dBi @ 617-960 MHz |
| Gain 2 | 4.5 dBi @ 1710-2690 MHz |
| Gain 3 | 6.3 dBi @ 5150-5925 MHz |
| Ground Plane Required | No |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP65 |
|---|---|
| Cable Length | 6 Feet |
| Material | UV Stable, UL94 Radome |
| Mount Style | Magnetic Mount |
| No Of Elements | 2 |
| Number of Cables | 2 |
| Operating Temp (celsius) | -40 to +85 C |
| Plenum/Fire Rating | UL-94 |
| Polarity | Linear |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| VSWR: < X: 1 | <2:1 |
| Weight (lbs) | 2 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
