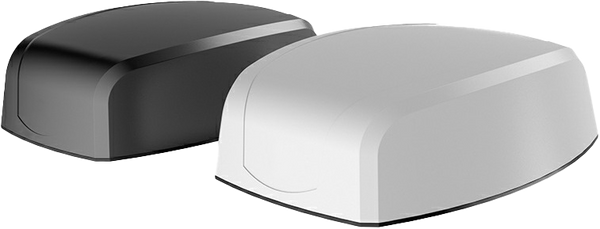

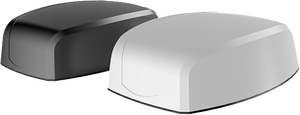

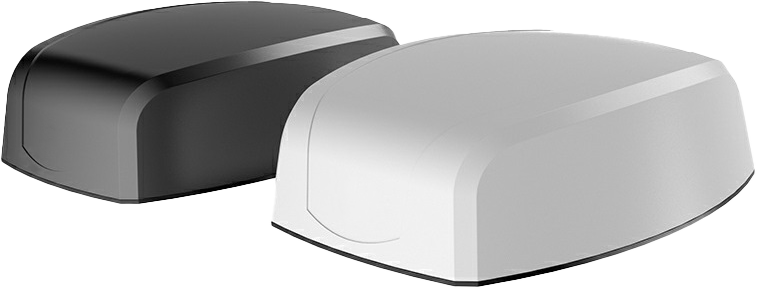

RDDM-G856W-1-S8S6S-B
15-in-1" Dome" Style A 8x 5GNR, 6x WiFi-6E, 1x GNSS for Transit Applications, Black color, 1 Ft
- Wideband Elements, 617-7200 MHz
- Elements: 1x GPS/GNSS, 8 MiMo 4G/5G Cellular, 6x WiFi-6E
- 15-in-1 Antenna Size: 5.98 x 6.48 x 3 Inches
- 1 Foot of cable with SMA Male on all leads
- Vehicular Rated for Mobile (IP69 rated), easy to install (just one, 7/8" hole)
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Low profile radome measuring 8.19 x 6.5 inches and only 2.7 inches tall this antenna is a perfect solution for transit applications.
Technical Specifications
| SKU | RDDM-G856W-1-S8S6S-B |
|---|---|
| Manufacturer | RFMAX |
| Cable Length (inches) | 12 |
| Cable Type | LMR100 Equivalent |
| Color | Black |
| Connector 3 | SMA-Male |
| Connector Type | SMA-Male |
| Directional or Omni | Omnidirectional |
| Working Frequency | 617-960 |
| Working Frequency 2 | 1710-7200 |
| Working Frequency 3 | 2400-2500 |
| Working Frequency 4 | 5800-6000 |
| Working Frequency 5 | 7000-7200 |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Gain | 3.0 - 6.0 dBi |
| Gain | 3 dBi |
| Gain 2 | 7 dBi |
|---|---|
| Gain 3 | 7 dBi |
| Gain 4 | 7 dBi |
| Gain 5 | 9 dBi |
| Ground Plane Required | Yes |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP69 |
| Material | ASA |
| Max Input Power (W) | 25 W |
| No Of Elements | 15 |
| Number of Cables | 15 |
| Operating Temp (celsius) | -50 to +75 |
| VSWR: < X: 1 | <2:1 |
| Weight (lbs) | 2.5 |
| Width (inches) | 6.5 |
| Width (mm) | 166 |
