R902-PAN1-9-W-V-SNF
10x10 inch IP-67 Circularly Polarized RFID Antenna - 902-928 MHz (FCC), N-Female
- Rugged, high-gain UHF RFID Antenna engineered for peak performance across the 902-928 MHz frequency band
- 9.5 dBic gain, right hand circular polarization and 68° Horizontal & Vertical Beamwidth
- This antenna ensures optimal read range, precision tag reads, even in high density applications
- Rugged IP67 rated, with a UL94-V rated radome, -55° to +71°C
- This antenna is able to withstand the harshest of environments and is suitable for indoor or extreme outdoor and industrial deployments

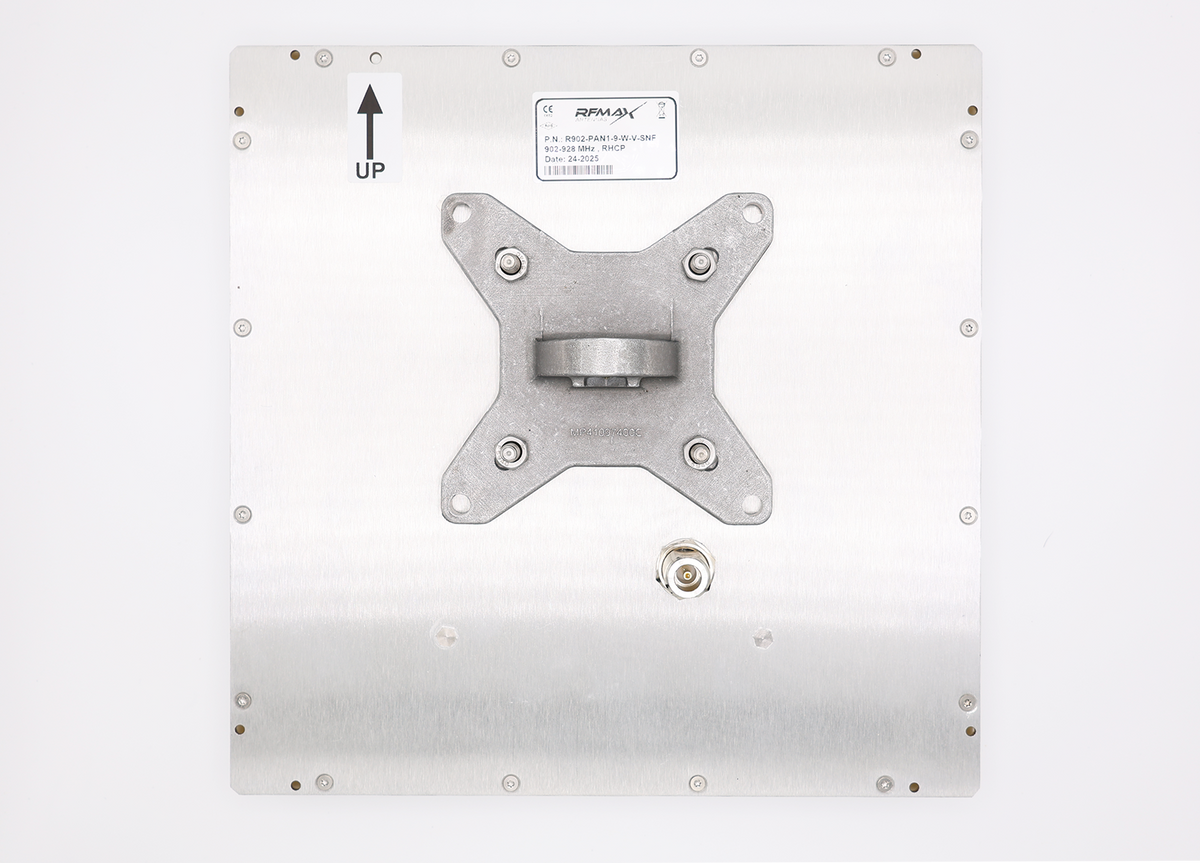

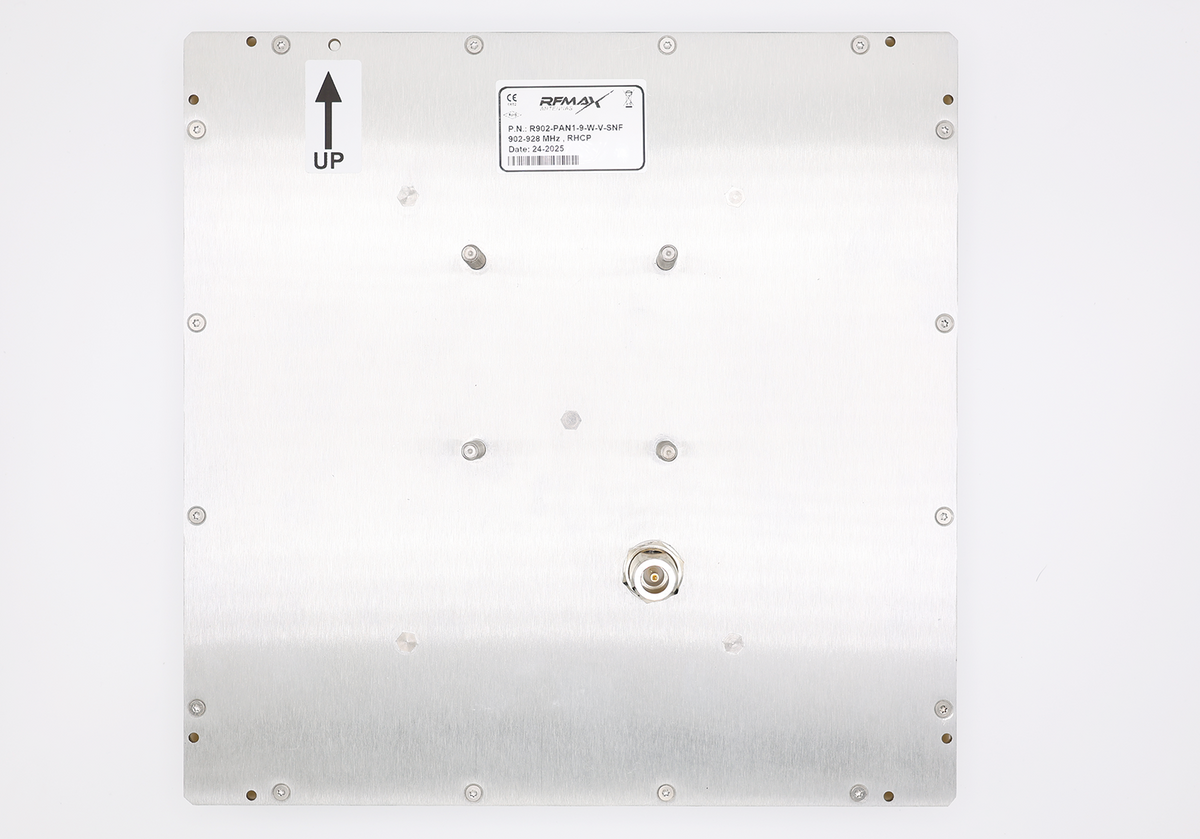

- Backplate has four, 1/4-20 threaded mounting studs, spaced at 2.5 inches

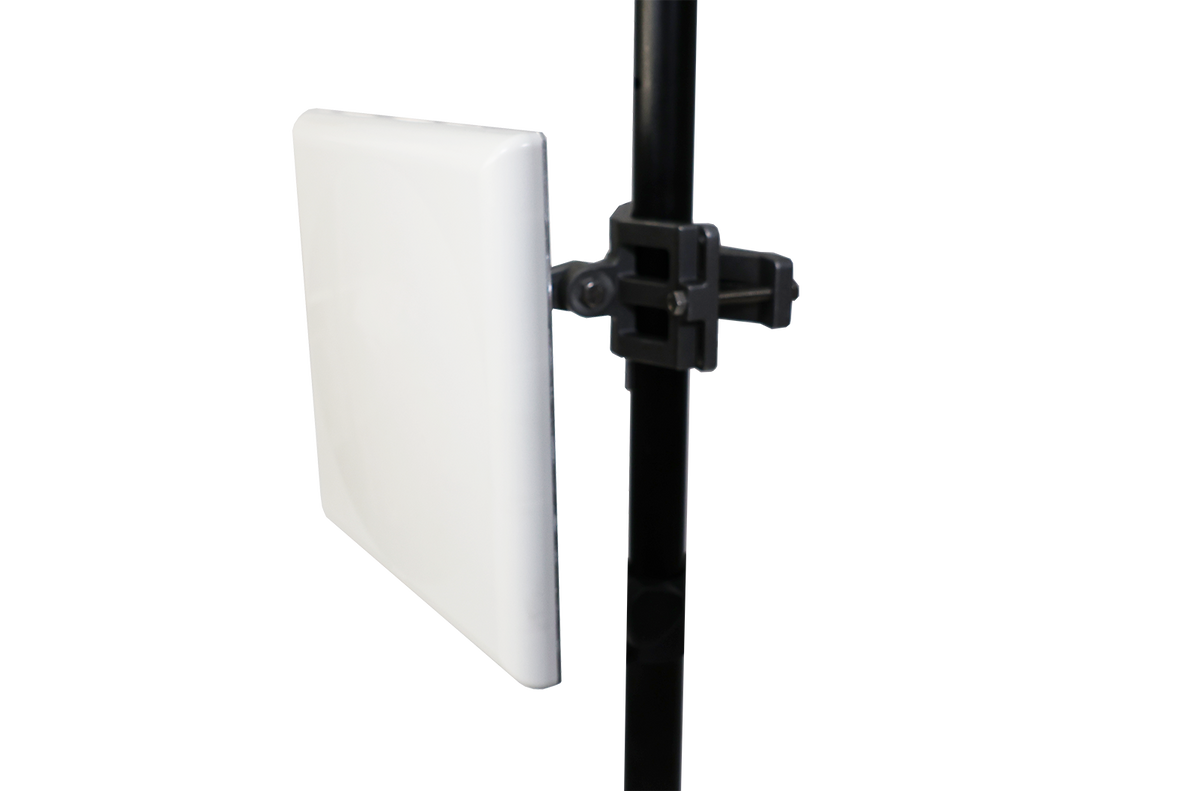

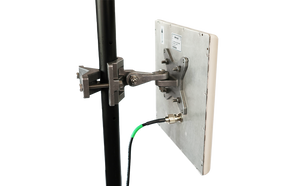

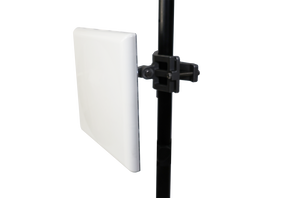

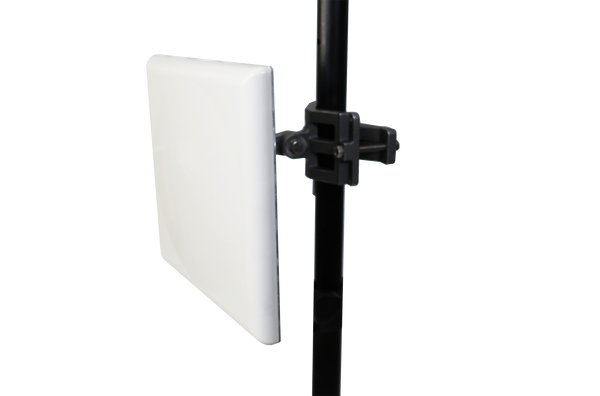

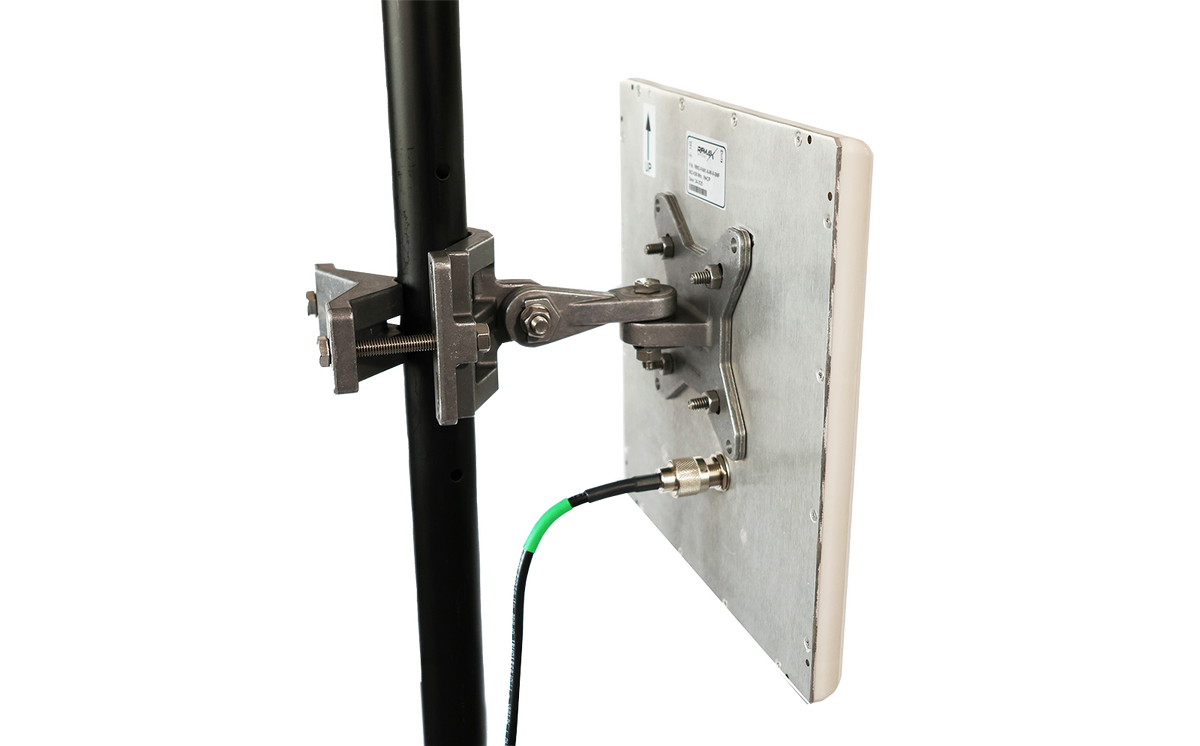

- Mounting bracket # HDMNT-100MM (sold separately)
- 100% equivalent to: Zebra AN480, PAL90209H-FNF & PAR90209H-FNF
-
Electrically equivalent to: MT-262006/TRH/A/K, S9028PCL96RTN, S9028PCR96RTN, S9028PCLJ96RTN, S9028PCRJ96RTN
Impinj IPJ-A1000 & IPJ-A1001 and Zebra AN480 (AN480-CR66100WR) - Compatible RFID readers from: Zebra, Impinj, Keon, Feig, Denso & Thingmagic
Technical Specifications
| SKU | R902-PAN1-9-W-V-SNF |
|---|---|
| Manufacturer | RFMAX |
| Color | White |
| Connector 1 | Standard N-Female (Jack) |
| Directional or Omni | Directional |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Front/Back Ratio (Db) | -18 dB |
| Gain | 9.5 dBic |
| Gain | 9.5 dBic (FCC) |
| Height/Length (inches) | 10.24 |
| Height/Length (mm) | 260 |
| OK for Outdoor Use | Outdoor |
| IP Rating | IP67 |
|---|---|
| Material | Radome:UL94V0 Rated Plastic / Backplate:Aluminum with Chemical Conversion Coating |
| Max Input Power (W) | 6 Watts |
| Mount Pattern | Threaded Studs: Size 1/4-20 Spacing: 2.5 inches (63.5 mm) Square |
| Operating Temp (celsius) | -55ºC to +71ºC (-67ºF to + 159ºF) |
| Polarity | Right Hand Circular Polarization (RHCP) |
| Thickness/Diameter (inches) | 1 |
| Thickness/Diameter (mm) | 25 |
| VSWR: < X: 1 | <1.25:1 |
| Weight (grams) | 1200 |
| Weight (lbs) | 2.45 |
| Width (inches) | 10 |
| Width (mm) | 260 |
