RDA69827001SSM

3G/4G/LTE Antenna for Cellular IoT. High Performance, High Efficiency for AT&T, Verizon, Sprint Carrier Certification.

  • Units Available: 84
List Price: Regular price $20.22
3G/4G/LTE Antenna for Cellular IoT. High Performance, High Efficiency for AT&T, Verizon, Sprint Carrier Certification.
3G/4G/LTE Antenna for Cellular IoT. High Performance, High Efficiency for AT&T, Verizon, Sprint Carrier Certification.

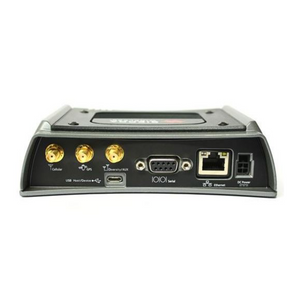

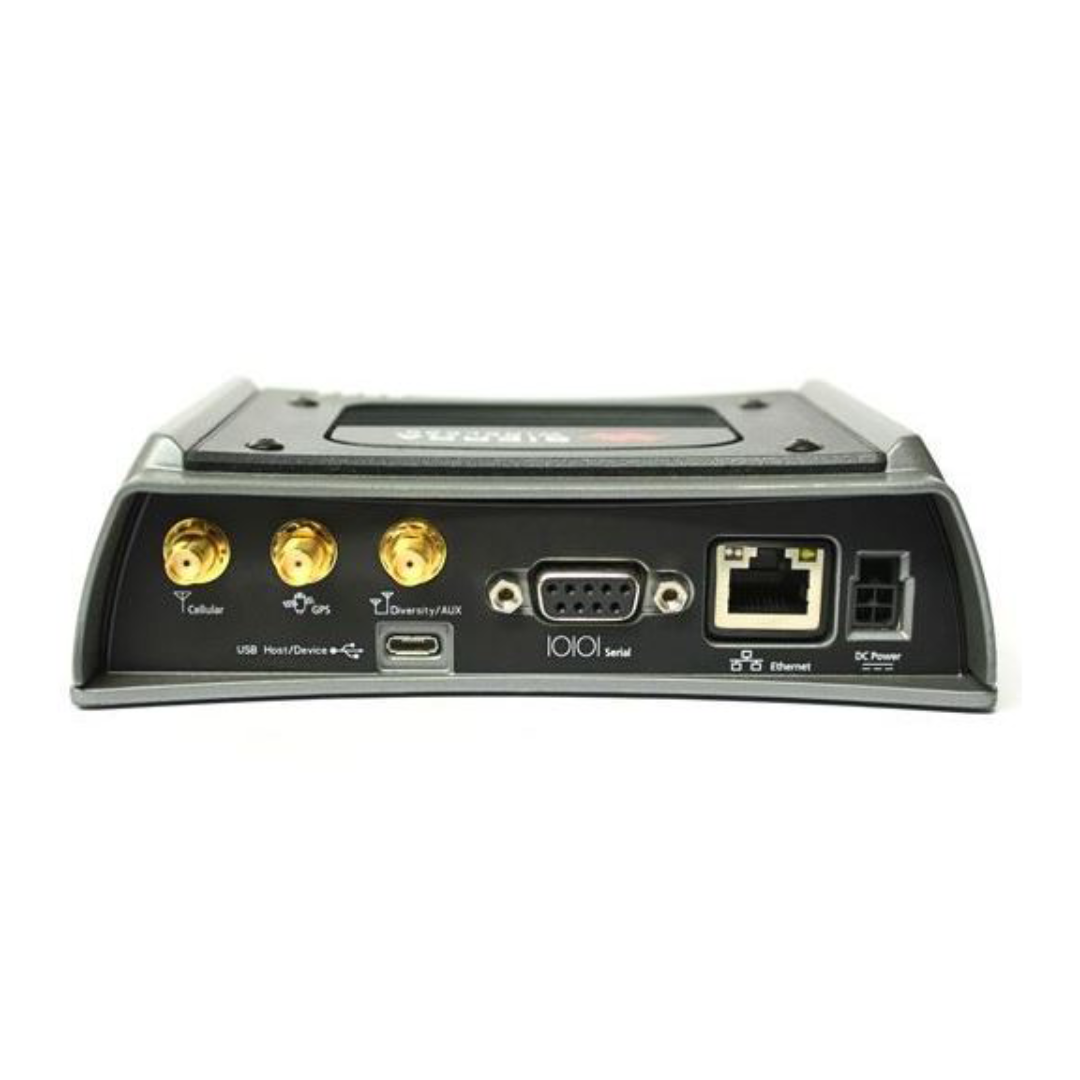

Antenna for Sierra Wireless GX450 Airlink Modem

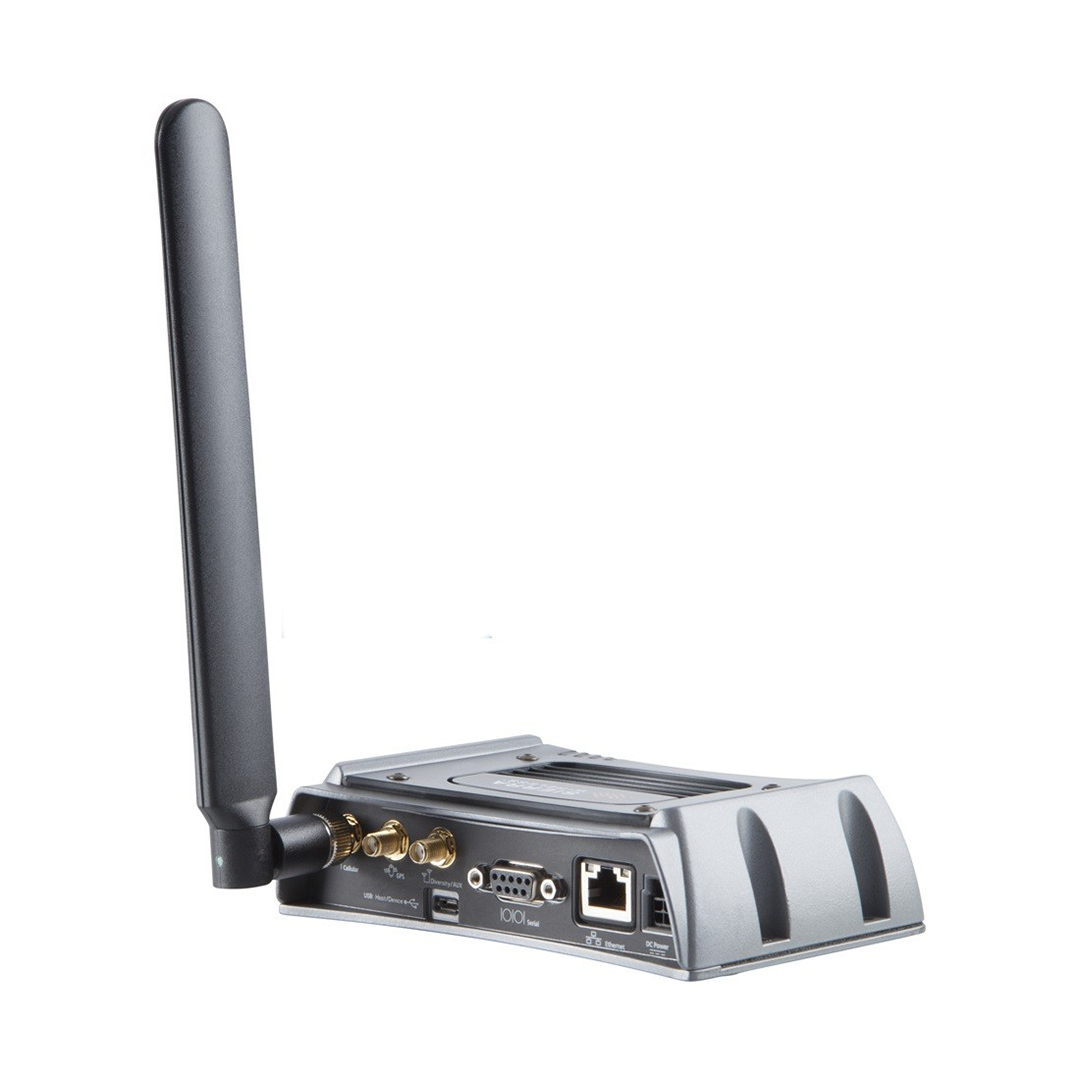

Antenna for Sierra Wireless Raven RV50 Modem
Antenna for Cradlepoint IBR modems
Grey_arrow@2x Created with Sketch.
Created with Sketch.
RDA69827001SSM

3G/4G/LTE Antenna for Cellular IoT. High Performance, High Efficiency for AT&T, Verizon, Sprint Carrier Certification.

  • Units Available: 84
List Price: Regular price $20.22

The RDA698/2700-1-SSM is a high-performance, high-efficiency dipole antenna for 3G/4G/LTE with SMA connector. This is THE BEST cellular antenna for OEM's looking to pass any major carrier certification - including AT&T, Verison, Sprint, T-Mobile, Rogers, Bell & Telus. The RDA698/2700-1-SSM is designed for frequencies from 698-2700 MHz 3G/4G/LTE and offers 1.0 - 2.16 dBi gain with efficiencies of 60-85% for maximizing cellular performance on your device.

This antenna has been tuned to work with cellular modems and embedded LTE modules from Sierra Wireless, Cradlepoint, Digi, Telit, LinkSprite, Maestro, MultiTech, uBlox & Raspberry Pi in the following LTE bands: 2, 4, 5, 12, 13, 17, 25, 26, 41 & 71.

Description BlueArrow Created with Sketch.

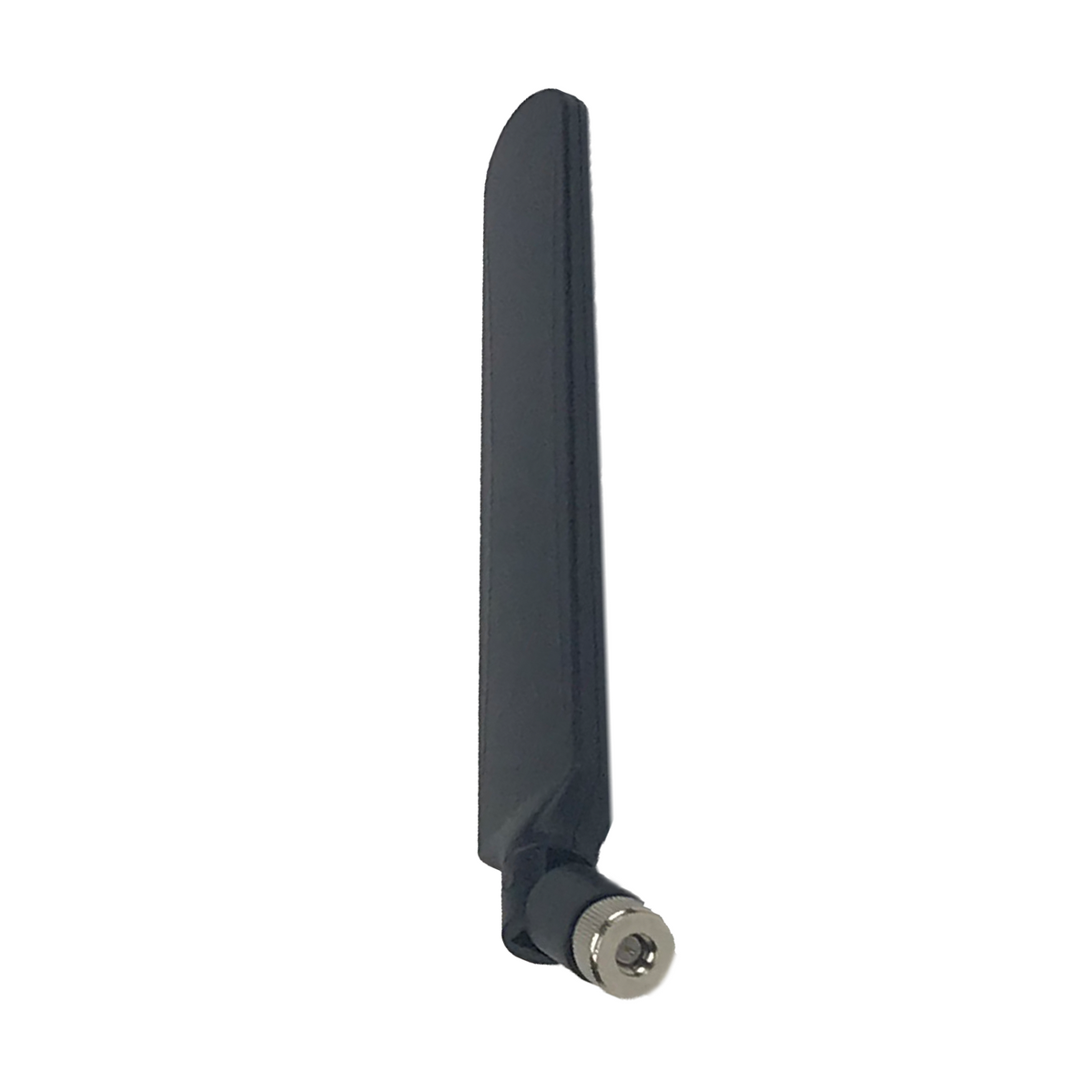

The RDA698/2700-1-SSM is an RFMAX Hi-Gain Dipole /  Flat Paddle Antenna for 698-2700 MHz 3G/4G/LTE cellular coverage with an articulating knuckle and standard SMA Male Connector. This blade, or paddle style antenna is designed for use with 3G/4G/LTE embedded cellular modems, access points, routers, gateways and small base station applications. The RDA698/2700-1-SSM covers all North American carrier legacy 3G bands, plus the 4G/LTE frequency ranges of 698-960, 1400-2170, 2300-2500 (Band 30 or 802.11 WiFi) and 2500-2690 MHz providing omnidirectional radiation with a gain of 1.0 - 2.16 dBi.

The blade style package offers a right angle swivel provided in black plastic with dimensions of 8.8 inches long (straight) x 1.2 inches wide It is supplied with an SMA Male connector which mates all standard cellular modems and gateways, or via a cable assembly to cellular modem modules.

FEATURES:

  • 3G-4G/LTE Blade Style DiPole Antenna
  • Operates at 698-960, 1400-2170, 2300-2500, and 2500-2690 MHz
  • High-Gain & High Efficiency for passing carrier testing for TRP & TIS
  • Articulating Knuckle & Standard SMA Male connector
  • RoHS Compliant
